NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1011-1405)

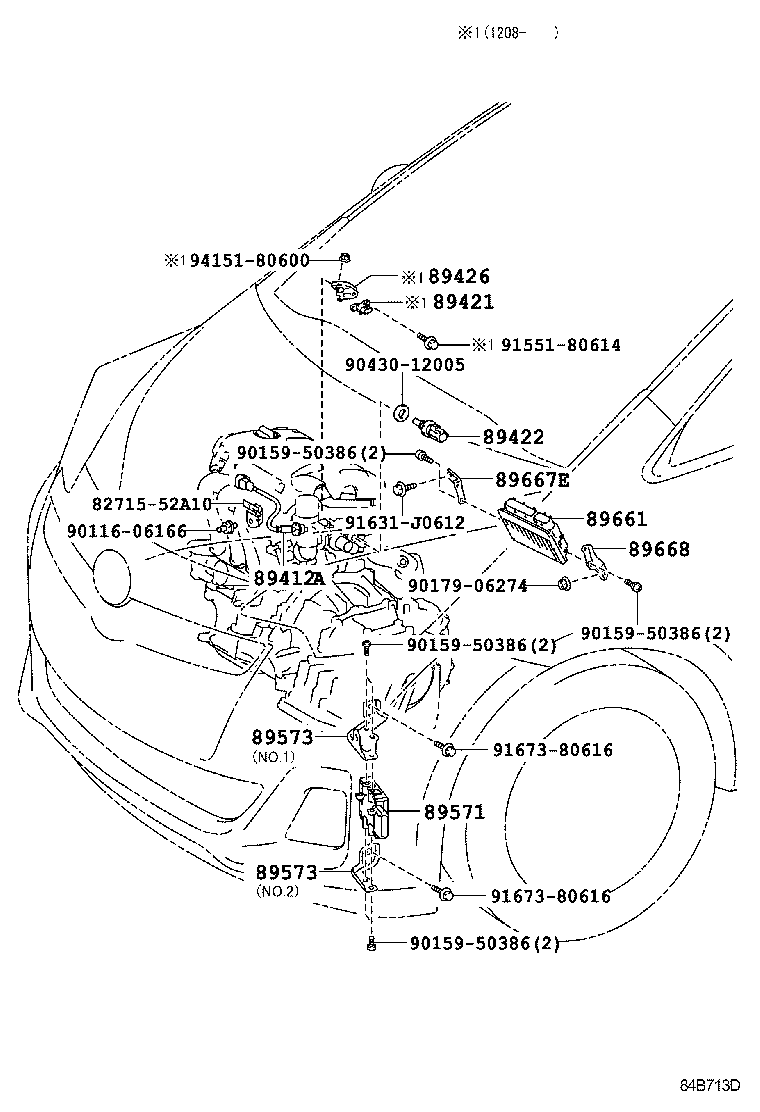

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89412A - SENSOR, E.G.R GAS TEMPERATURE | ||||
| 89412-35020 |
NCP120 |
1 | ||
| 89421 - SENSOR ASSY, VACUUM (FOR E.F.I.) | ||||
| 89421-26030 |
NCP120 |
1 | ||
| 89421-26030 |
NCP120 |
2 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-33030 |
NCP120 |
1 | ||
| 89426 - BRACKET, VACUUM SENSOR | ||||
| 89426-12260 |
NCP120 |
1 | ||
| 89571 - COMPUTER, FUEL PUMP CONTROL | ||||
| 89571-34070 |
NCP120 |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-52040 |
NCP120 NO.2 |
1 | ||
| 89573-52030 |
NCP120 NO.1 |
1 | ||
| 89573 - BRACKET, FUEL PUMP CONTROL COMPUTER | ||||
| 89573-52040 |
NCP120 NO.2 |
1 | ||
| 89573-52030 |
NCP120 NO.1 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89661-52Y81 |
NCP120 |
1 | ||
| 89661-52Y80 |
NCP120 |
1 | ||
| 89661-52P10 |
NCP120 |
1 | ||
| 89661-52Y71 |
NCP120 |
1 | ||
| 89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-52340 |
NCP120 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-52350 |
NCP120 |
1 | ||
| Common parts | ||||
| 82715-52A10 | ||||
| 90116-06166 | ||||
| 90159-50386 | ||||
| 90179-06274 | ||||
| 90430-12005 | ||||
| 91551-80614 | ||||
| 91631-J0612 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
