NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1011-1405)

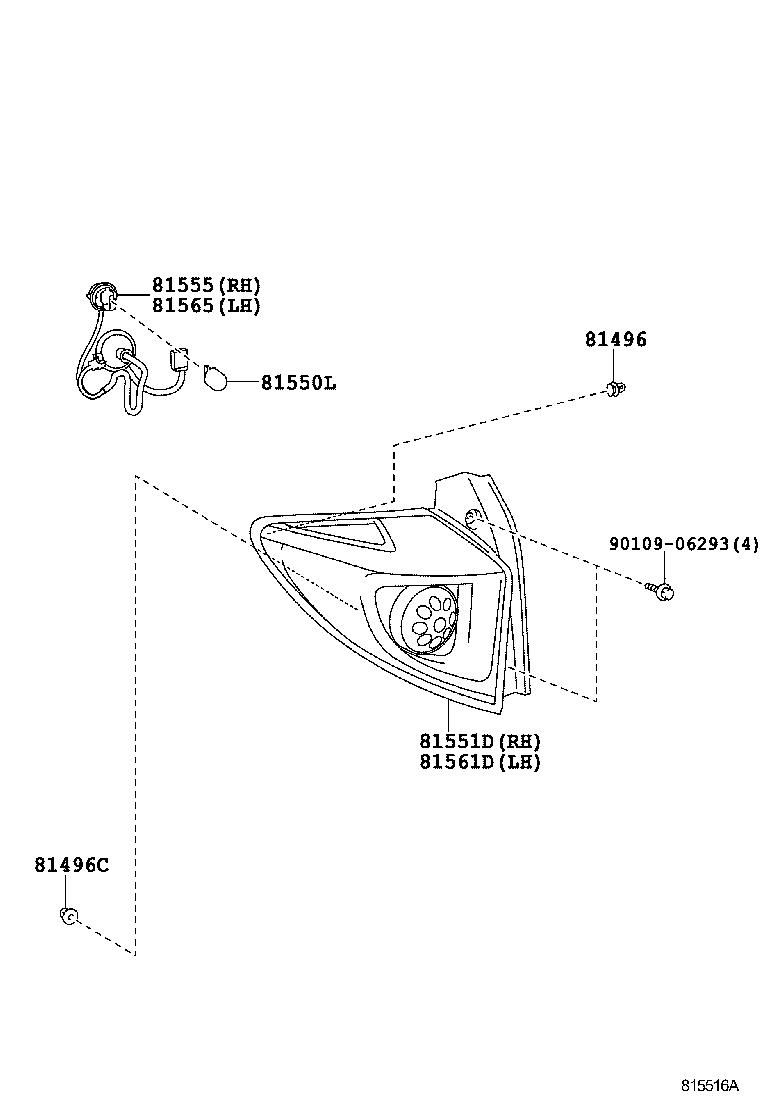

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-60010 |
NCP120 |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-52020 |
NCP120 |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
NCP120 |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-52A00 |
NCP120 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-52A00 |
NCP120 |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-52840 |
NCP120 |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-52A00 |
NCP120 |
1 | ||
| Common parts | ||||
| 90109-06293 | ||||
