NCP120R-CHXGKH (2010)
Toyota Ractis
(1011-1405)

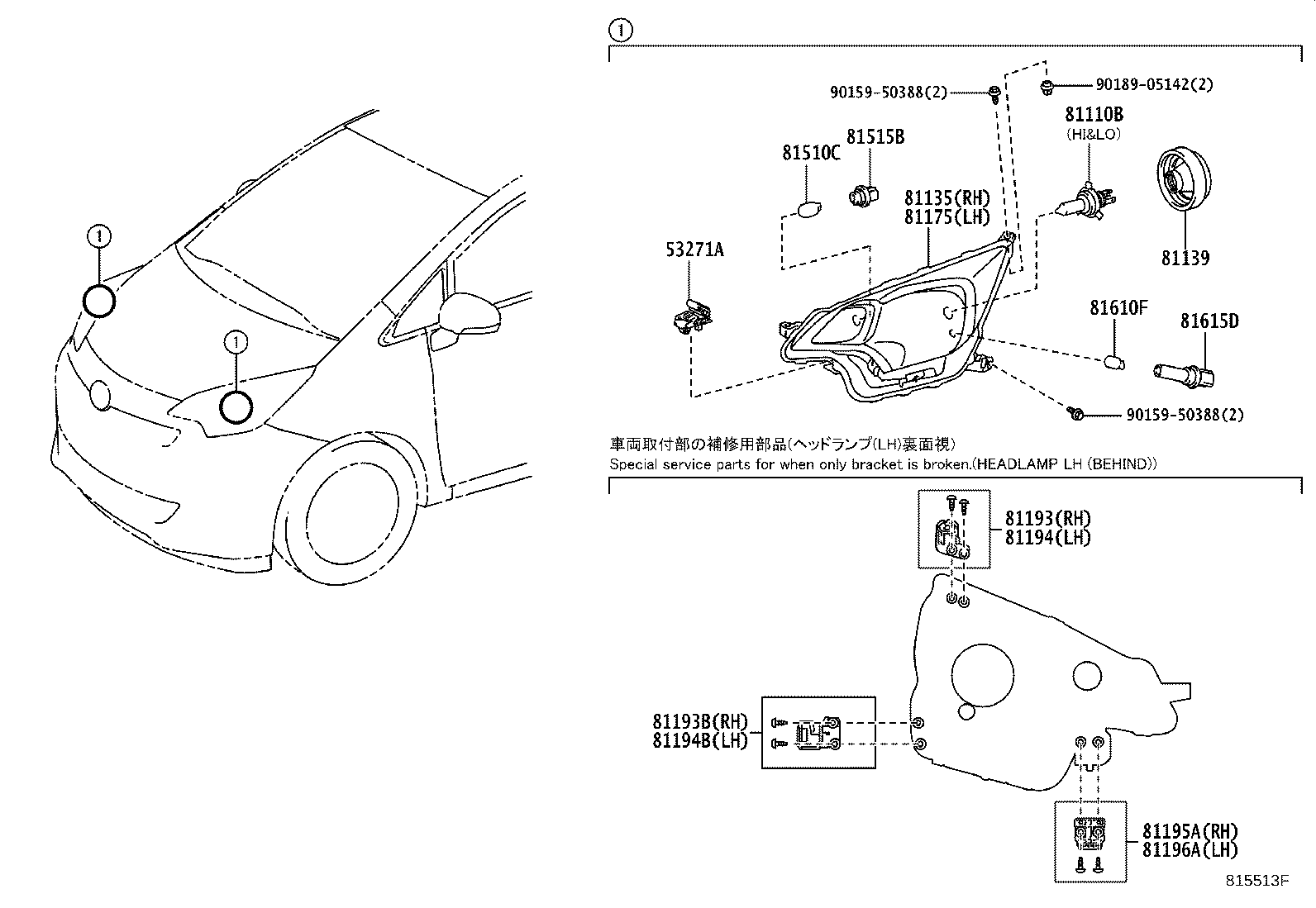

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
NCP120 |
2 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP120 12V 60/55W,HALOGEN |
2 | ||
| 90981-13082 |
NCP120..LUNA 12V 55W,HALOGEN,HEADLAMP-DISCHARGE |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52C60 |
NCP120 |
1 | ||
| 81145-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81139-52570 |
NCP120 |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52C60 |
NCP120 |
1 | ||
| 81185-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52170 |
NCP120 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-52160 |
NCP120 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52170 |
NCP120 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-52160 |
NCP120 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52140 |
NCP120 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-52140 |
NCP120 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NCP120 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-42050 |
NCP120 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP120 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
NCP120 |
2 | ||
| Common parts | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||

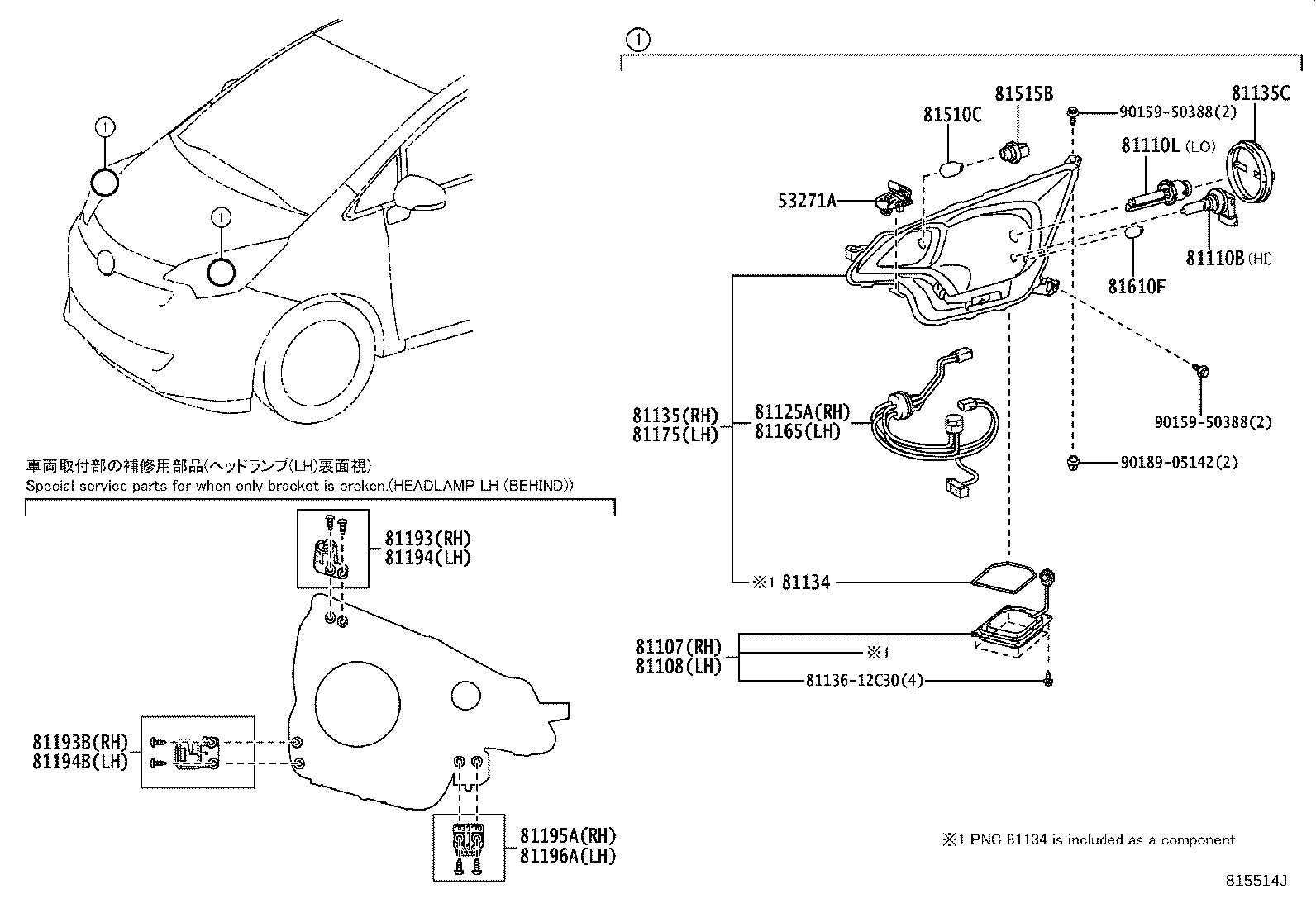

(1011-1405)LUNA
DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
NCP120 |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13058 |
NCP120 12V 60/55W,HALOGEN |
2 | ||
| 90981-13082 |
NCP120..LUNA 12V 55W,HALOGEN,HEADLAMP-DISCHARGE |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20030 |
NCP120..LUNA 45V 35W,HEADLAMP-DISCHARGE |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81125-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
NCP120..LUNA HEADLAMP-DISCHARGE |
4 | ||
| 90075-68007 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-52C60 |
NCP120 |
1 | ||
| 81145-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-52620 |
NCP120..LUNA HEADLAMP-DISCHARGE |
2 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81125-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-52C60 |
NCP120 |
1 | ||
| 81185-52C70 |
NCP120..LUNA HEADLAMP-DISCHARGE |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-52170 |
NCP120 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-52160 |
NCP120 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-52170 |
NCP120 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-52160 |
NCP120 |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-52140 |
NCP120 |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81195-52140 |
NCP120 |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
NCP120 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 81515-42050 |
NCP120 |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
NCP120 12V 5W |
2 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 90159-50388 | ||||
| 90189-05142 | ||||
