NCP120R-CHXGKH (2010)
Toyota Ractis
(1011- )
CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1011-1106)LUNA ; (1011- )TERRA

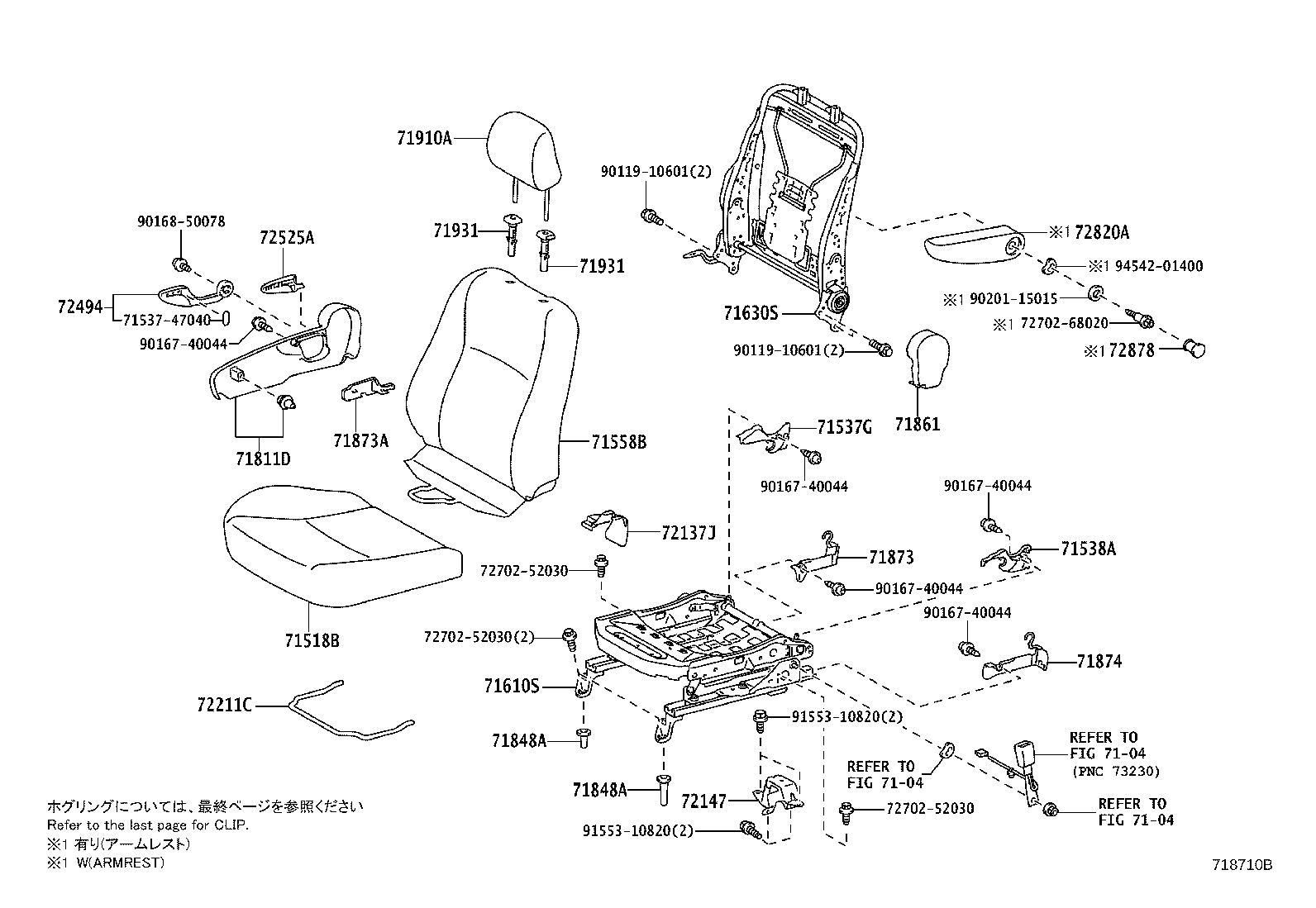

DRIVER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52S90C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71518-52R80C1 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52U70C2 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52U70C4 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52011 |
NCP120 |
1 | ||
| 71610-52010 |
NCP120 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52440 |
NCP120..LUNA |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52310C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52230C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52230C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NCP120 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C70B1 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52080 |
NCP120 |
1 | ||
| 72147-52081 |
NCP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120 |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-52010B1 |
NCP120..LUNA DARK GRAY,TRIM2# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 71877-52010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 71537-47040 | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)LUNA ; (1011- )TERRA
DRIVER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52L60C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71430-52L61C5 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71430-52L60C5 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52S90C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71518-52R80C1 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52U70C2 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52U70C4 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52011 |
NCP120 |
1 | ||
| 71610-52010 |
NCP120 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52440 |
NCP120..LUNA |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52310C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52230C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52230C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-47040 |
NCP120 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C70B1 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52080 |
NCP120 |
1 | ||
| 72147-52081 |
NCP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120 |
2 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-52010B1 |
NCP120..LUNA DARK GRAY,TRIM2# |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 71877-52010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 71537-47040 | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)LUNA ; (1011- )TERRA

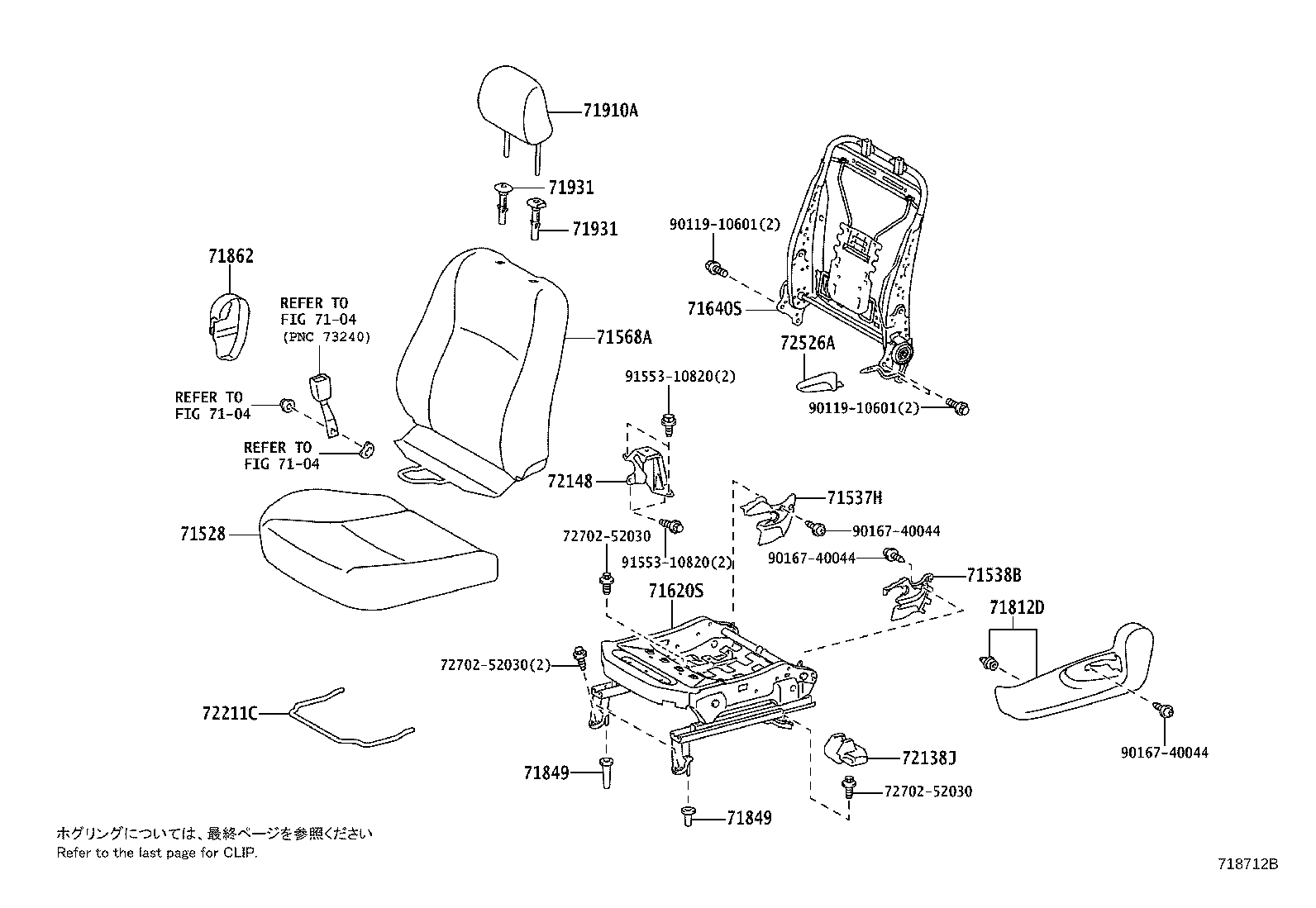

PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52S00C1 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71528-52S20C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52Q10C4 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71568-52P50C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71568-52Q10C2 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71568-52P50C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52010 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71620-52010 |
NCP120 |
1 | ||
| 71620-52011 |
NCP120 |
1 | ||
| 71620-52210 |
NCP120 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52220 |
NCP120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52240C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71812-52240C0 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71812-52280C0 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52180C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C70B1 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52080 |
NCP120 |
1 | ||
| 72148-52081 |
NCP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)LUNA ; (1011- )TERRA

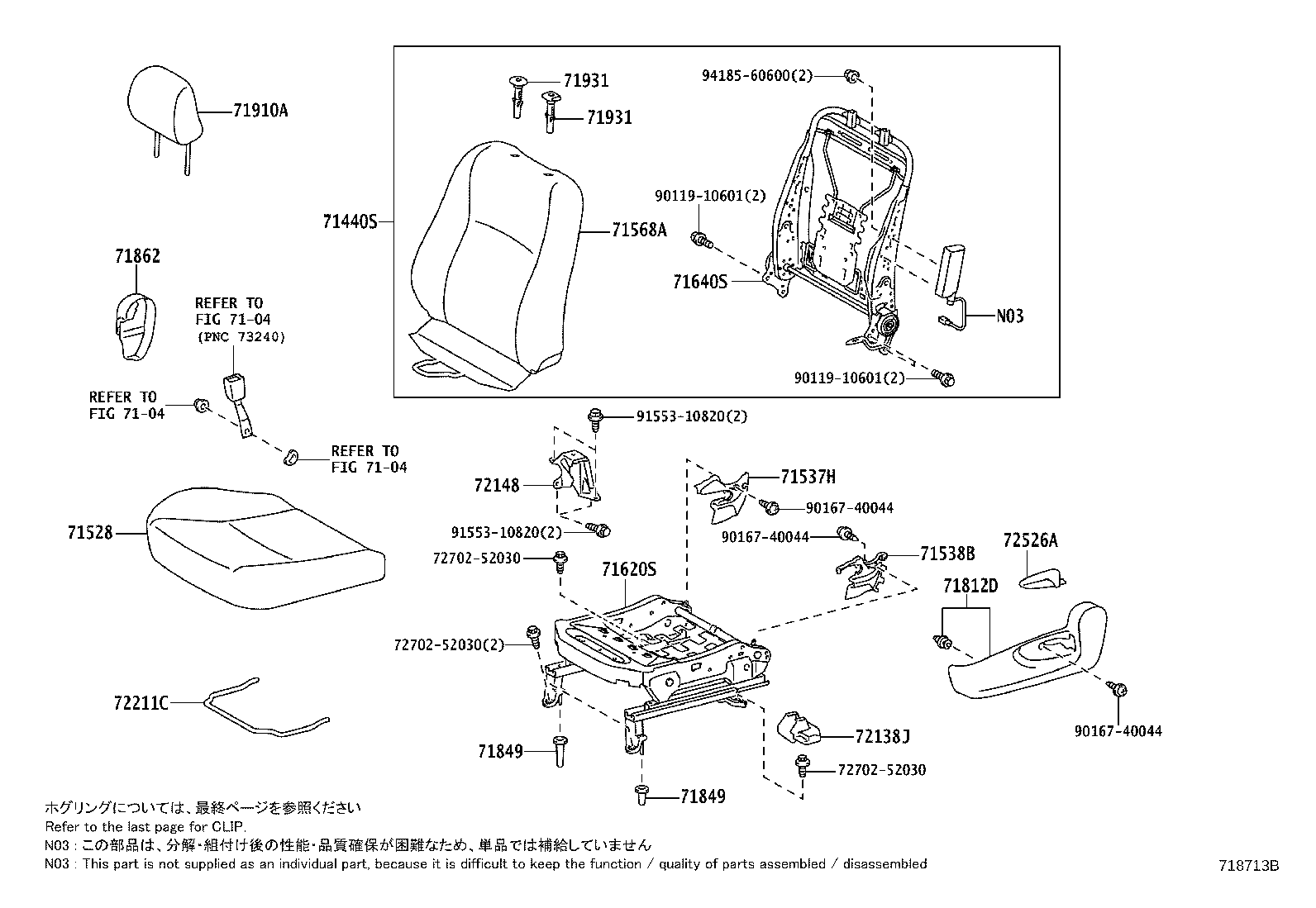

PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52C41C5 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71440-52C40C5 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71440-52C40C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52S00C1 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71528-52S20C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52Q10C4 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71568-52P50C3 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71568-52Q10C2 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71568-52P50C1 |
NCP120..LUNA SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52010 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA) |
1 | ||
| 71620-52010 |
NCP120 |
1 | ||
| 71620-52011 |
NCP120 |
1 | ||
| 71620-52210 |
NCP120 |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52220 |
NCP120 |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52240C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71812-52240C0 |
NCP120..LUNA BLACK,TRIM2# |
1 | ||
| 71812-52280C0 |
NCP120 SRS AIR BAG-W(*DRS & *PAS & SIDE & *CUSA),BLACK,TRIM2# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP120 OUTER |
1 | ||
| 71848-52050 |
NCP120 INNER |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52180C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C70B1 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120..LUNA DK.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
NCP120..LUNA W(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 71931-47020C0 |
NCP120..LUNA W/O(LOCK),BLACK,TRIM2#,4# |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52080 |
NCP120 |
1 | ||
| 72148-52081 |
NCP120 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120 |
2 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 91553-10820 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
