NCP120R-CHXGKH (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

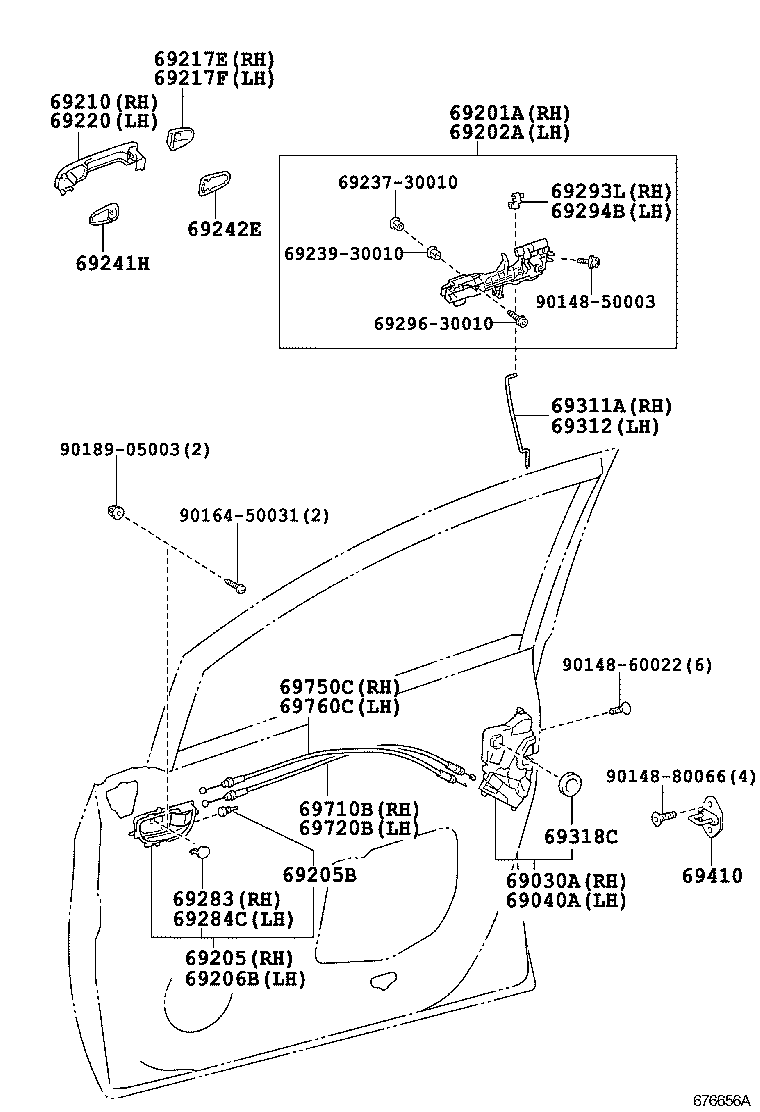

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69205B 69206B 69210 69217E 69217F 69220 6923730010 6923930010 69241H 69242E 69283 69284C 69293L 69294B 6929630010 69311A 69312 69318C 69410 69710B 69720B 69750C 69760C 9014850003 9014860022 9014880066 9016450031 9018905003
Part # Description Qty Price
69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH
69030-52290

NCP120

 1
69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH
69040-47090

NCP120..LUNA

 1
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-52130

NCP120

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-52070

NCP120

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-52170C0

NCP120..LUNA

BLACK,TRIM2#

 1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027

NCP120

 2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-52170C0

NCP120..LUNA

BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-52100E0

NCP120..LUNA

DK. BROWN M.M.,4U3

 1
69210-52100B0

NCP120..LUNA

SILVER ME.,1F7

 1
69210-52100C0

NCP120..LUNA

BLACK MC.,209

 1
69210-52100A1

NCP120..LUNA

WHITE PEARL CS.,070

 1
69210-52100J0

NCP120..LUNA

LT.BLUE M.M.,8S7

 1
69210-52100D0

NCP120..LUNA

SUPER RED 5,3P0

 1
69210-52100H2

NCP120..LUNA

TURQUOISE ME.,777

 1
69210-52100K0

NCP120..LUNA

DEEP AMETHYST M.M.,9AH

 1
69210-52100J1

NCP120..LUNA

SATIN BLUE M.M.,8V9

 1
69210-52100B1

NCP120..LUNA

GRAY ME.,1G3

 1
69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH
69217-52030B0

NCP120

SILVER ME.,1F7

 1
69217-52030D0

NCP120

SUPER RED 5,3P0

 1
69217-52030E0

NCP120

DK. BROWN M.M.,4U3

 1
69217-52030C0

NCP120

BLACK MC.,209

 1
69217-52030B1

NCP120

GRAY ME.,1G3

 1
69217-52030A1

NCP120

WHITE PEARL CS.,070

 1
69217-52030J1

NCP120

SATIN BLUE M.M.,8V9

 1
69217-52030K0

NCP120

DEEP AMETHYST M.M.,9AH

 1
69217-52030J0

NCP120

LT.BLUE M.M.,8S7

 1
69217-52030H2

NCP120

TURQUOISE ME.,777

 1
69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH
69217-52040A1

NCP120

WHITE PEARL CS.,070

 1
69217-52040E0

NCP120

DK. BROWN M.M.,4U3

 1
69217-52040J1

NCP120

SATIN BLUE M.M.,8V9

 1
69217-52040D0

NCP120

SUPER RED 5,3P0

 1
69217-52040C0

NCP120

BLACK MC.,209

 1
69217-52040H2

NCP120

TURQUOISE ME.,777

 1
69217-52040B0

NCP120

SILVER ME.,1F7

 1
69217-52040K0

NCP120

DEEP AMETHYST M.M.,9AH

 1
69217-52040B1

NCP120

GRAY ME.,1G3

 1
69217-52040J0

NCP120

LT.BLUE M.M.,8S7

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-52100B0

NCP120..LUNA

SILVER ME.,1F7

 1
69210-52100J1

NCP120..LUNA

SATIN BLUE M.M.,8V9

 1
69210-52100C0

NCP120..LUNA

BLACK MC.,209

 1
69210-52100K0

NCP120..LUNA

DEEP AMETHYST M.M.,9AH

 1
69210-52100J0

NCP120..LUNA

LT.BLUE M.M.,8S7

 1
69210-52100D0

NCP120..LUNA

SUPER RED 5,3P0

 1
69210-52100A1

NCP120..LUNA

WHITE PEARL CS.,070

 1
69210-52100E0

NCP120..LUNA

DK. BROWN M.M.,4U3

 1
69210-52100B1

NCP120..LUNA

GRAY ME.,1G3

 1
69210-52100H2

NCP120..LUNA

TURQUOISE ME.,777

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-52020

NCP120

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-52030

NCP120

 2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-52010C0

NCP120

BLACK,TRIM2#

 1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69283-52010C0

NCP120

BLACK,TRIM2#

 1
69293L - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030

NCP120

 1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040

NCP120

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-52170

NCP120

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-52180

NCP120

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-47010

NCP120

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-47010

NCP120

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-52170

NCP120

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-52170

NCP120

 1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-52100

NCP120

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-52100

NCP120

 1
Common parts
69237-30010
69239-30010
69296-30010
90148-50003
90148-60022
90148-80066
90164-50031
90189-05003
