NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

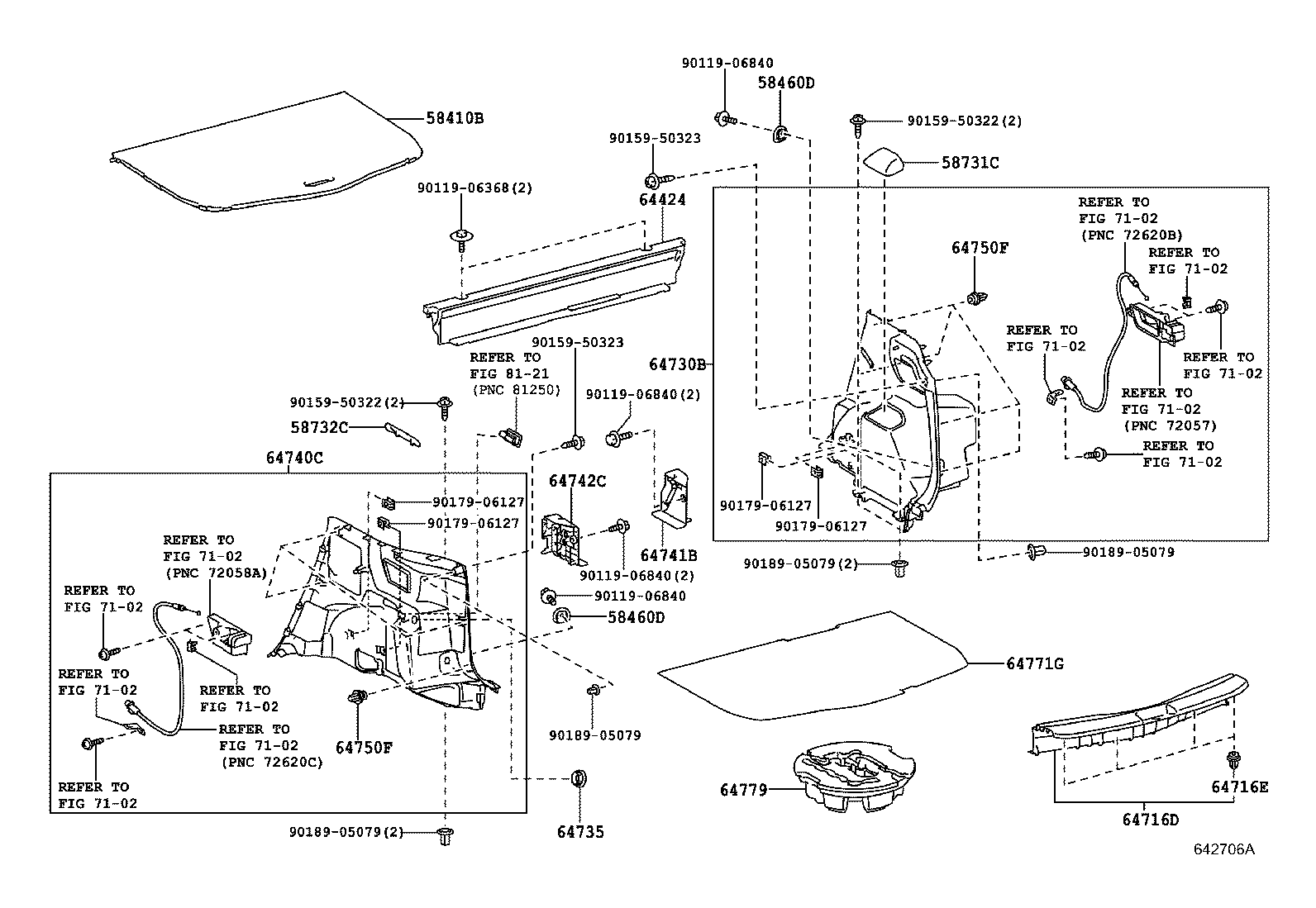

ILLUST NO. 1 OF 2(1011- )LUNA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58410B - BOARD ASSY, DECK | ||||
| 58410-52060B0 |
NCP120..LUNA DARK GRAY,TRIM2#,4# |
1 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120 |
2 | ||
| 58460D - STRIKER ASSY, LUGGAGE HOLD BELT | ||||
| 58460-33020 |
NCP120 |
2 | ||
| 58731C - CAP, REAR ABSORBER | ||||
| 58731-52050C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 58732C - CAP, REAR ABSORBER | ||||
| 58732-52030C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64424 - SEPARATOR, LUGGAGE ROOM BOX | ||||
| 64424-52020C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-52160C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-10161 |
NCP120 |
4 | ||
| 64730B - PANEL ASSY, DECK TRIM SIDE, RH | ||||
| 64730-52360C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64735 - COVER, DECK TRIM SIDE SERVICE HOLE | ||||
| 64735-13050C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 64740C - PANEL ASSY, DECK TRIM SIDE, LH | ||||
| 64740-52400C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64740-52620C0 |
NCP120 BLACK,TRIM2# |
1 | ||
| 64741B - BOX, DECK SIDE TRIM, RH | ||||
| 64741-52020C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64742C - BOX, DECK SIDE TRIM, LH | ||||
| 64742-52010C0 |
NCP120..LUNA BLACK,TRIM2#,4# |
1 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP120 |
8 | ||
| 90467-10161 |
NCP120 |
16 | ||
| 64750F - CLIP(FOR DECK SIDE TRIM PANEL) | ||||
| 90467-10161 |
NCP120 |
8 | ||
| 90467-10161 |
NCP120 |
16 | ||
| 64771G - COVER, SPARE WHEEL | ||||
| 64771-52180B0 |
NCP120..LUNA DARK GRAY,TRIM2#,4# |
1 | ||
| 64779 - TRAY, SPARE WHEEL COVER | ||||
| 64779-46010 |
NCP120 |
1 | ||
| Common parts | ||||
| 90119-06368 | ||||
| 90119-06840 | ||||
| 90159-50322 | ||||
| 90159-50323 | ||||
| 90179-06127 | ||||
| 90189-05079 | ||||
| Linked diagrams | ||||
| 7102 | ||||
| 8121 | ||||
ILLUST NO. 2 OF 2(1011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NCP120 |
2 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-52040 |
NCP120 |
2 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-52380B1 |
NCP120 DK.GRAY,TRIM2# |
1 | ||
| 64330-52400B1 |
NCP120 DK.GRAY,TRIM2# |
1 | ||
| 64376 - SPACER, PACKAGE TRAY TRIM, NO.2 | ||||
| 64376-12020 |
NCP120 |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP120 |
2 | ||
| 64381A - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-52010 |
NCP120 |
2 | ||
| 64910J - COVER ASSY, TONNEAU | ||||
| 64910-52080B0 |
NCP120..LUNA DARK GRAY,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90467-07181 | ||||
