NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 2 OF 2(1011- )
Click highlighted areas on diagram
K310
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91612-61045 |
NCP120 |
7 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45025 |
NCP120 |
1 | ||
| 90311-45027 |
NCP120 |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||
ILLUST NO. 1 OF 2(1011- )
Click highlighted areas on diagram
K310
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12140 |
NCP120 K312 |
1 | ||
| 30400-52240 |
NCP120 K310 |
1 | ||
| 30400-52242 |
NCP120 K310 |
1 | ||
| 30400-12130 |
NCP120 K312 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18061 |
NCP120 MARK = TC |
1 | ||
| 90341-18077 |
NCP120 MARK = FE |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
NCP120 |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-52010 |
NCP120 |
1 | ||
| 33493-52040 |
NCP120 |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12130 |
NCP120 |
1 | ||
| 35106-12170 |
NCP120 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NCP120 |
16 | ||
| 35123B - SKIRT,TRANSMISSION BREATHER | ||||
| 35123-52030 |
NCP120 |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-12430 |
NCP120 |
1 | ||
| 35125-12400 |
NCP120 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
NCP120 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
NCP120 |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-52020 |
NCP120 |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
NCP120 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
NCP120 NO.1 |
1 | ||
| 90930-03191 |
NCP120 NO.2 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
NCP120 NO.1 |
1 | ||
| 90930-03191 |
NCP120 NO.2 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
NCP120 |
1 | ||
| 35150-48010 |
NCP120 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12090 |
NCP120 |
1 | ||
| 35168-12091 |
NCP120 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W110 |
NCP120 |
1 | ||
| 35330-0W060 |
NCP120 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
NCP120 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12160 |
NCP120 |
1 | ||
| 35572-12170 |
NCP120 |
1 | ||
| Common parts | ||||
| 90301-20012 | ||||
| 90341-12025 | ||||
| 90430-12221 | ||||
| 90949-01C99 | ||||
| 91551-80616 | ||||
| 91551-80820 | ||||
| 91671-80816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

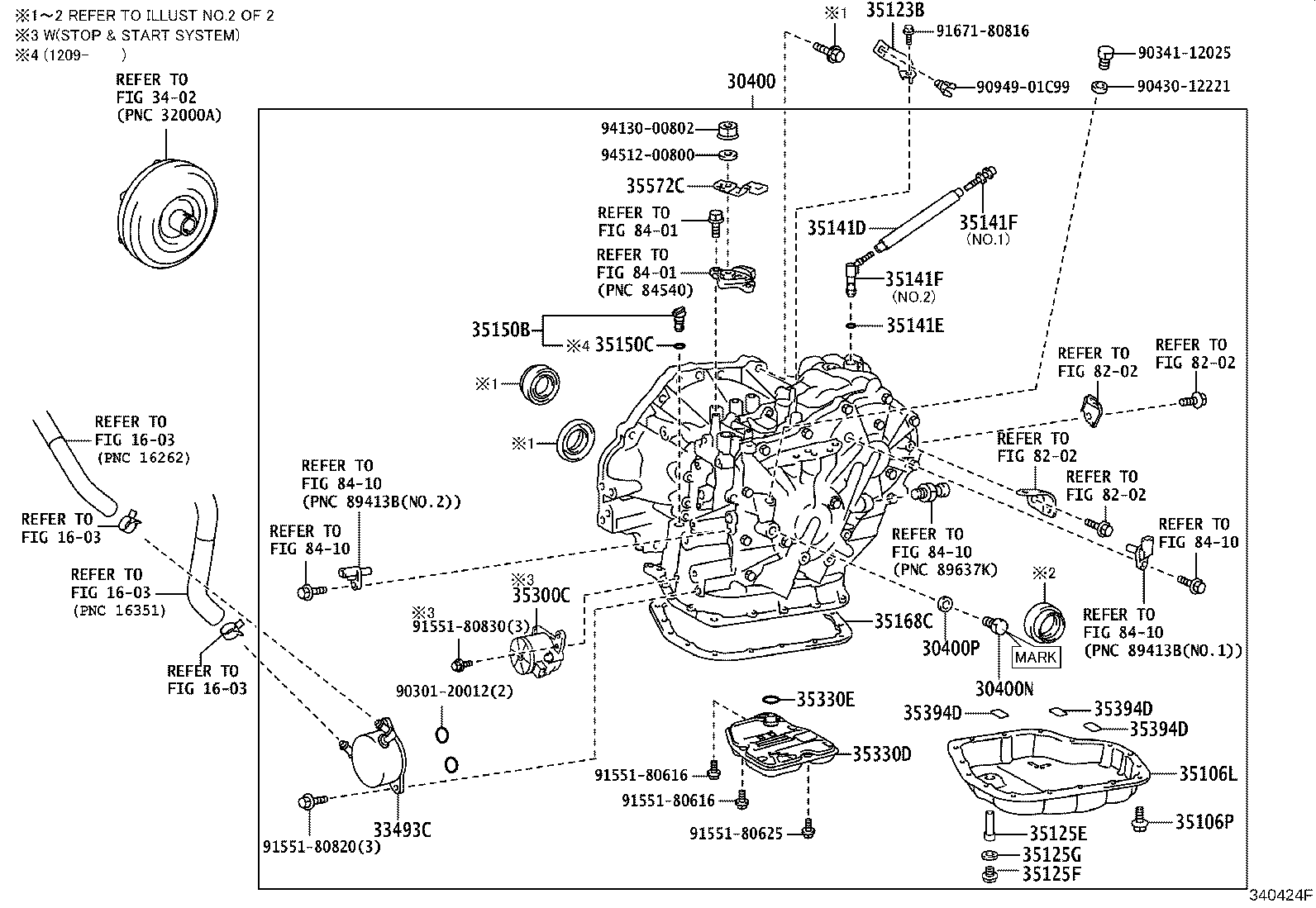

ILLUST NO. 2 OF 3(1208- )
Click highlighted areas on diagram
K312
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400 - TRANSAXLE ASSY, CONTINUOUSLY VARIABLE | ||||
| 30400-12140 |
NCP120 K312 |
1 | ||
| 30400-52240 |
NCP120 K310 |
1 | ||
| 30400-52242 |
NCP120 K310 |
1 | ||
| 30400-12130 |
NCP120 K312 |
1 | ||
| 30400N - PLUG, REFILL(CVT) | ||||
| 90341-18061 |
NCP120 MARK = TC |
1 | ||
| 90341-18077 |
NCP120 MARK = FE |
1 | ||
| 30400P - GASKET, REFILL PLUG(CVT) | ||||
| 90430-18008 |
NCP120 |
1 | ||
| 33493C - COOLER, TRANSMISSION OIL | ||||
| 33493-52010 |
NCP120 |
1 | ||
| 33493-52040 |
NCP120 |
1 | ||
| 35106L - PAN SUB-ASSY, TRANSAXLE OIL(CVT) | ||||
| 35106-12130 |
NCP120 |
1 | ||
| 35106-12170 |
NCP120 |
1 | ||
| 35106P - BOLT(FOR TRANSAXLE OIL PAN) | ||||
| 90119-06173 |
NCP120 |
16 | ||
| 35123B - SKIRT,TRANSMISSION BREATHER | ||||
| 35123-52030 |
NCP120 |
1 | ||
| 35125E - TUBE, OVERFLOW(CVT) | ||||
| 35125-12430 |
NCP120 |
1 | ||
| 35125-12400 |
NCP120 |
1 | ||
| 35125F - PLUG, OVERFLOW(CVT) | ||||
| 90341-12034 |
NCP120 |
1 | ||
| 35125G - GASKET, OVERFLOW PLUG(CVT) | ||||
| 90430-12008 |
NCP120 |
1 | ||
| 35141D - HOSE(FOR BREATHER PLUG) | ||||
| 35121-52020 |
NCP120 |
1 | ||
| 35141E - RING, O(FOR BREATHER PLUG) | ||||
| 90301-06005 |
NCP120 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
NCP120 NO.1 |
1 | ||
| 90930-03191 |
NCP120 NO.2 |
1 | ||
| 35141F - PLUG, BREATHER, NO.1(CVT) | ||||
| 90930-03149 |
NCP120 NO.1 |
1 | ||
| 90930-03191 |
NCP120 NO.2 |
1 | ||
| 35150B - PLUG ASSY, TRANSMISSION CASE | ||||
| 35150-44010 |
NCP120 |
1 | ||
| 35150-48010 |
NCP120 |
1 | ||
| 35150C - RING, O (FOR TRANSMISSION CASE PLUG) | ||||
| 90301-09173 |
NCP120 |
1 | ||
| 35168C - GASKET, TRANSAXLE OIL PAN(CVT) | ||||
| 35168-12090 |
NCP120 |
1 | ||
| 35168-12091 |
NCP120 |
1 | ||
| 35300C - PUMP ASSY, OIL W/MOTOR | ||||
| 35300-12011 |
NCP120 |
1 | ||
| 35330D - STRAINER ASSY, OIL | ||||
| 35330-0W110 |
NCP120 |
1 | ||
| 35330-0W060 |
NCP120 |
1 | ||
| 35330E - RING, O (FOR OIL STRAINER) | ||||
| 90301-22014 |
NCP120 |
1 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35394D - MAGNET, OIL CLEANER(CVT) | ||||
| 35394-30011 |
NCP120 |
3 | ||
| 35572C - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-12160 |
NCP120 |
1 | ||
| 35572-12170 |
NCP120 |
1 | ||
| Common parts | ||||
| 90301-20012 | ||||
| 90341-12025 | ||||
| 90430-12221 | ||||
| 90949-01C99 | ||||
| 91551-80616 | ||||
| 91551-80625 | ||||
| 91551-80820 | ||||
| 91551-80830 | ||||
| 91671-80816 | ||||
| 94130-00802 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 3402 | ||||
| 8202 | ||||
| 8401 | ||||
| 8410 | ||||

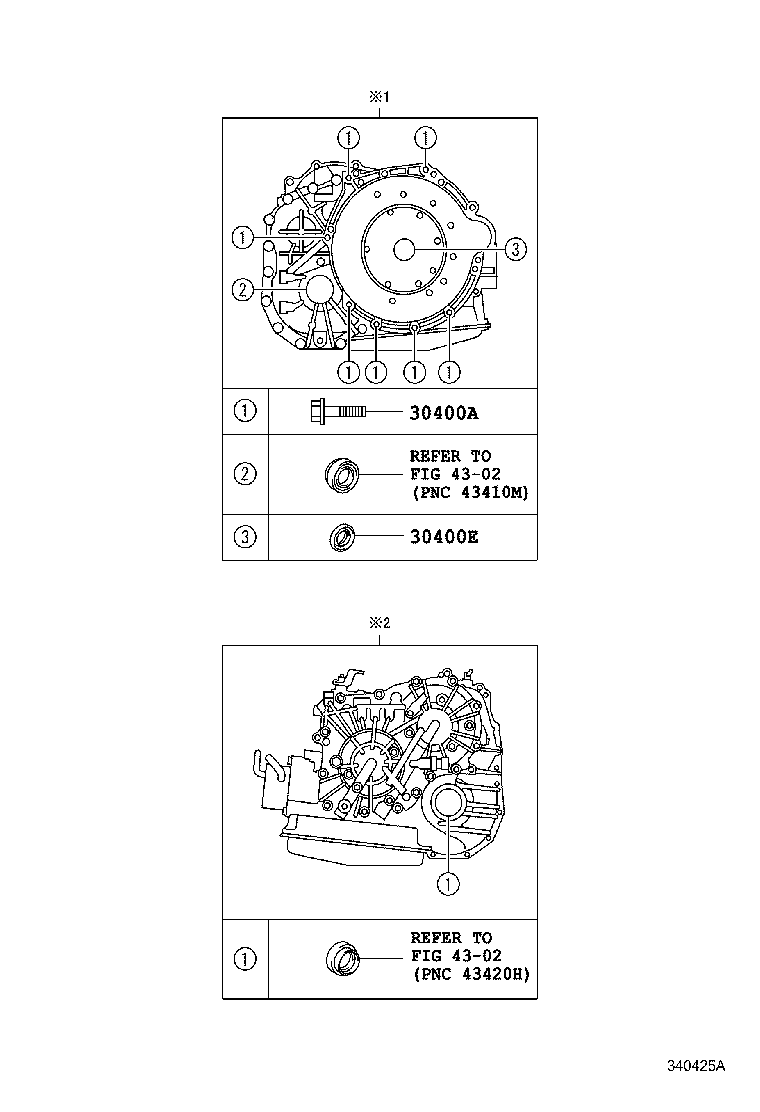

ILLUST NO. 3 OF 3(1208- )
Click highlighted areas on diagram
K312
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30400A - BOLT(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 91612-61045 |
NCP120 |
7 | ||
| 30400E - SEAL, TYPE T OIL(FOR CVT OIL PUMP) | ||||
| 90311-45025 |
NCP120 |
1 | ||
| 90311-45027 |
NCP120 |
1 | ||
| Linked diagrams | ||||
| 4302 | ||||

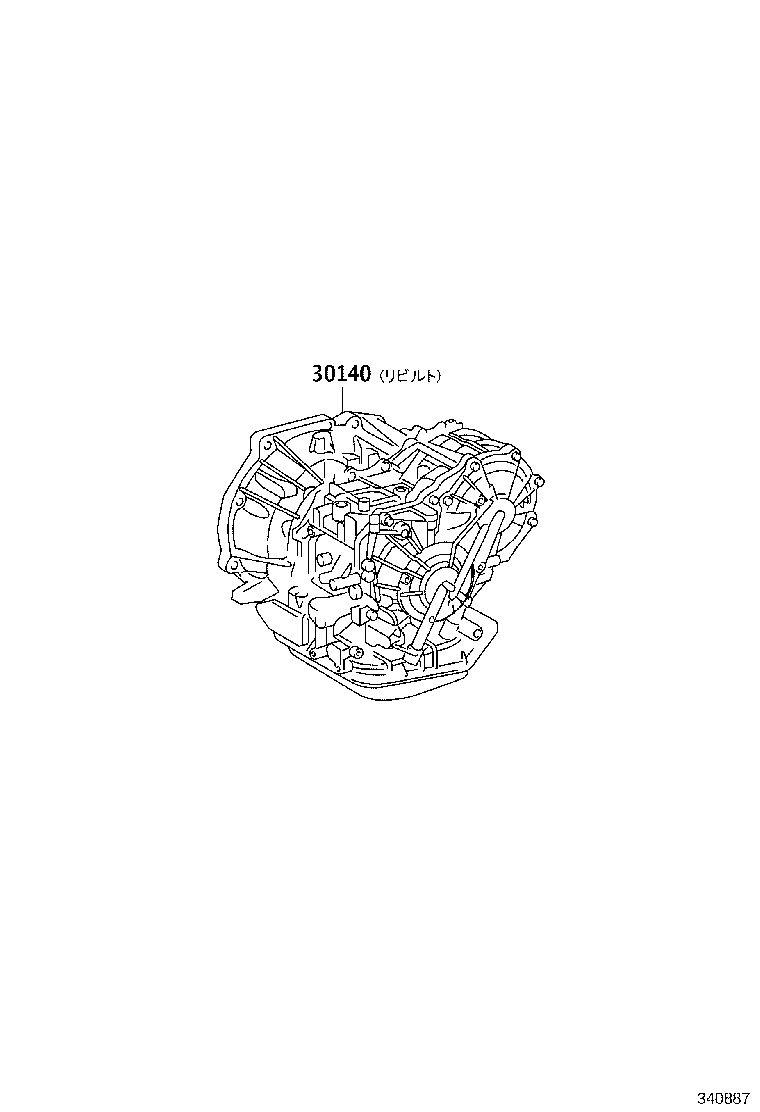

ILLUST NO. 1 OF 3(1305-1405)
Click highlighted areas on diagram
K312
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 30140 - TRANSAXLE ASSY, CVT, REBUILT(W/O TORQUE CONVERTER) | ||||
| 30140-12130 |
NCP120 K312 |
1 | ||
