NCP120R-CHXGKH (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011-1208)

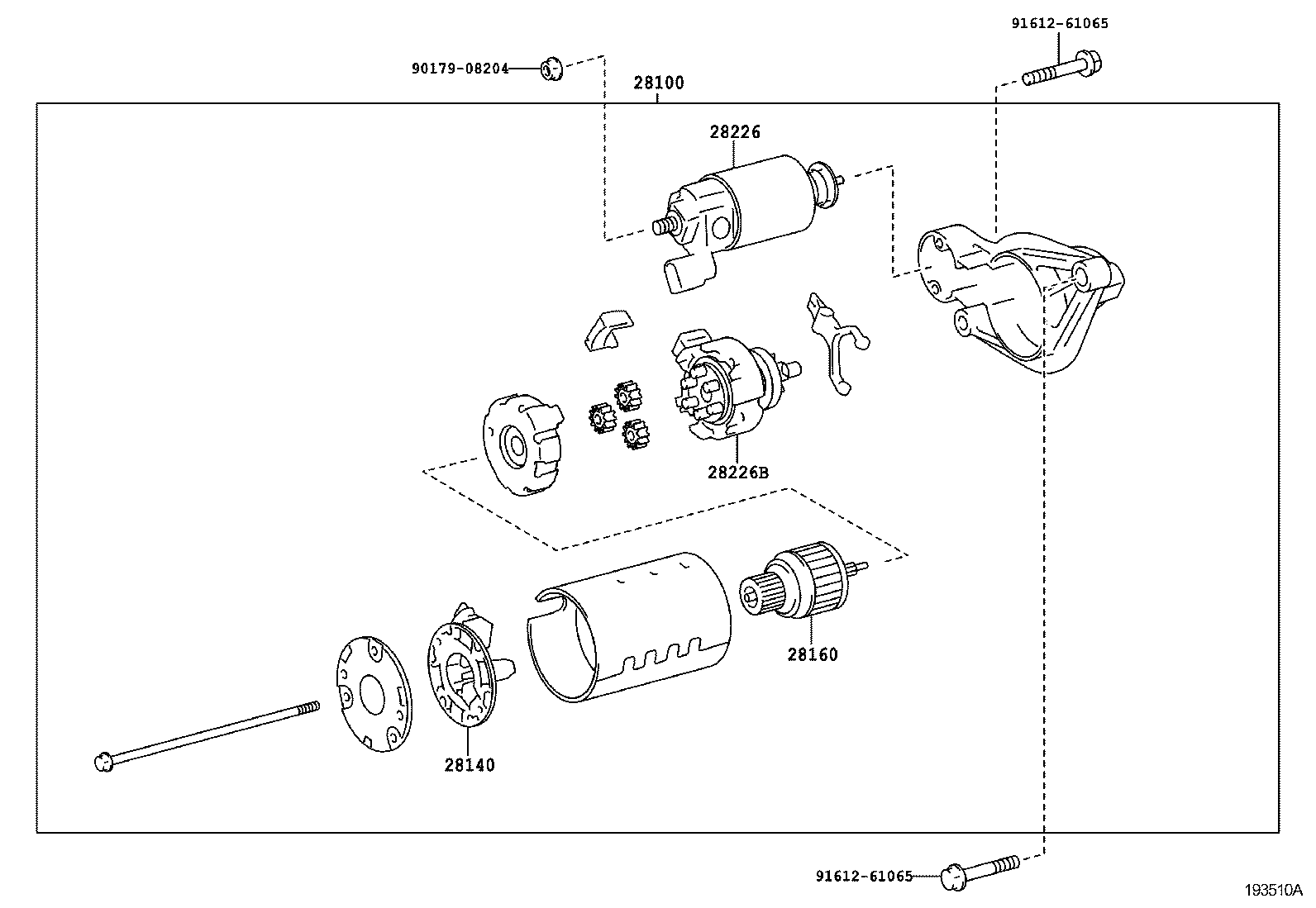

Click highlighted areas on diagram

12V 1.0KW

diagram 28100 28140 28160 28226 28226B 9017908204 9161261065 9161261065
Part # Description Qty Price
28100 - STARTER ASSY
28100-21070

1NZFE..NCP120

12V 1.0KW

 1
28100-21100

1NZFE..NCP120

12V 1.7KW

 1
28100-21021

1NZFE..NCP120

12V 0.8KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

1NZFE..NCP120

 1
28140-21070

1NZFE..NCP120

 1
28140-70020

1NZFE..NCP120

 1
28160 - ARMATURE ASSY, STARTER
28160-21070

1NZFE..NCP120

 1
28160-70021

1NZFE..NCP120

 1
28160-38070

1NZFE..NCP120

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-21080

1NZFE..NCP120

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-21070

1NZFE..NCP120

 1
Common parts
90179-08204
91612-61065

(1208-1305)

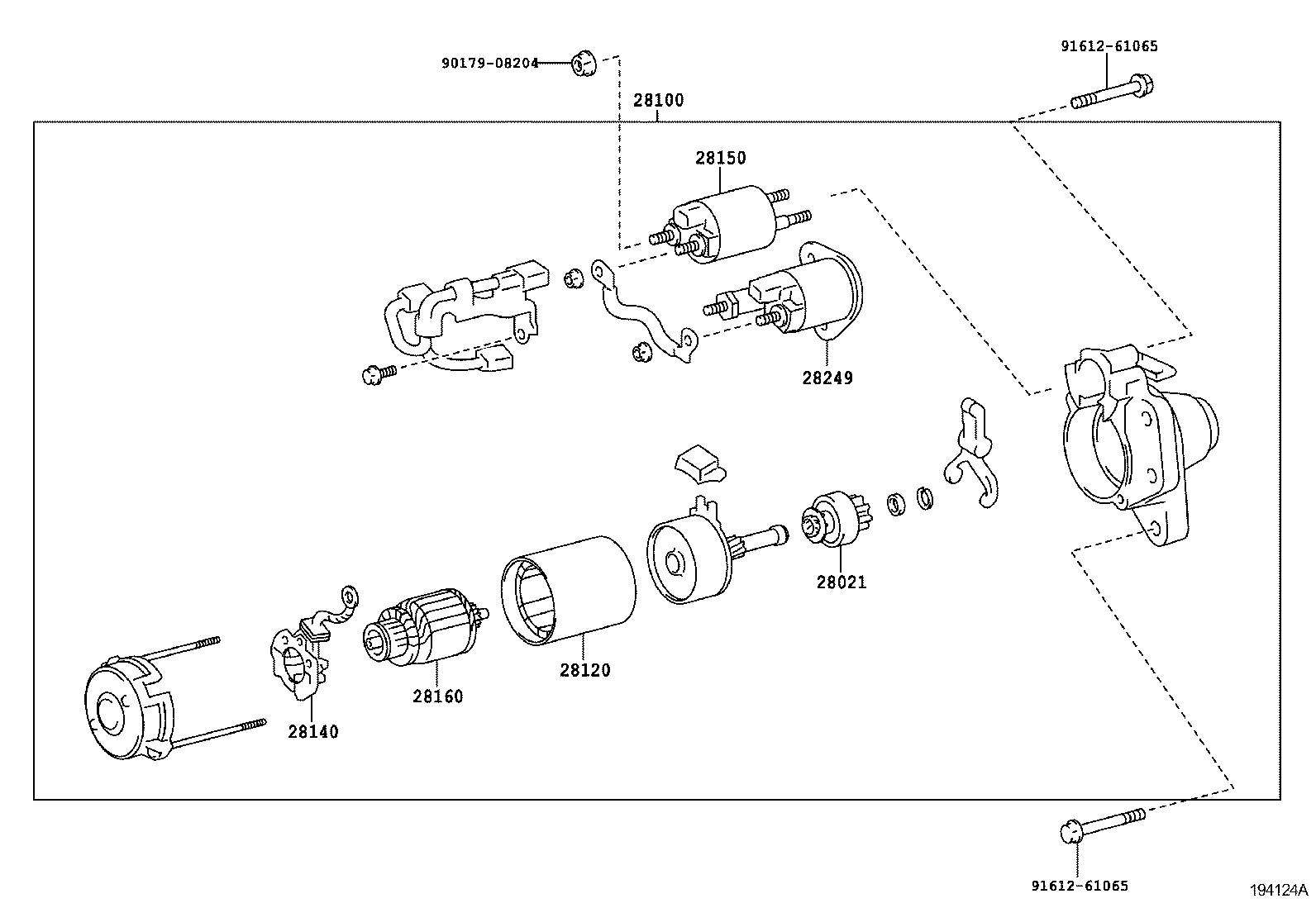

Click highlighted areas on diagram

12V 0.8KW

diagram 28021 28100 28120 28120A 28120A 28140 28142 28142 28150 28160 9017908204 9161261065 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21100

1NZFE..NCP120

 1
28021-70020

1NZFE..NCP120

 1
28100 - STARTER ASSY
28100-21070

1NZFE..NCP120

12V 1.0KW

 1
28100-21100

1NZFE..NCP120

12V 1.7KW

 1
28100-21021

1NZFE..NCP120

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-47120

1NZFE..NCP120

 1
28120-21100

1NZFE..NCP120

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1NZFE..NCP120

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14092

1NZFE..NCP120

 2
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

1NZFE..NCP120

 1
28140-21070

1NZFE..NCP120

 1
28140-70020

1NZFE..NCP120

 1
28142 - BRUSH, STARTER
28142-70020

1NZFE..NCP120

 2
28142 - BRUSH, STARTER
28142-70020

1NZFE..NCP120

 2
28150 - SWITCH ASSY, MAGNET STARTER
28150-21020

1NZFE..NCP120

 1
28150-21100

1NZFE..NCP120

 1
28160 - ARMATURE ASSY, STARTER
28160-21070

1NZFE..NCP120

 1
28160-70021

1NZFE..NCP120

 1
28160-38070

1NZFE..NCP120

 1
Common parts
90179-08204
91612-61065

(1305- )

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28120 28140 28150 28160 28249 9017908204 9161261065 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21100

1NZFE..NCP120

 1
28021-70020

1NZFE..NCP120

 1
28100 - STARTER ASSY
28100-21070

1NZFE..NCP120

12V 1.0KW

 1
28100-21100

1NZFE..NCP120

12V 1.7KW

 1
28100-21021

1NZFE..NCP120

12V 0.8KW

 1
28120 - YOKE ASSY, STARTER
28120-47120

1NZFE..NCP120

 1
28120-21100

1NZFE..NCP120

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

1NZFE..NCP120

 1
28140-21070

1NZFE..NCP120

 1
28140-70020

1NZFE..NCP120

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-21020

1NZFE..NCP120

 1
28150-21100

1NZFE..NCP120

 1
28160 - ARMATURE ASSY, STARTER
28160-21070

1NZFE..NCP120

 1
28160-70021

1NZFE..NCP120

 1
28160-38070

1NZFE..NCP120

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-21100

1NZFE..NCP120

 1
Common parts
90179-08204
91612-61065
