NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1011-1208)

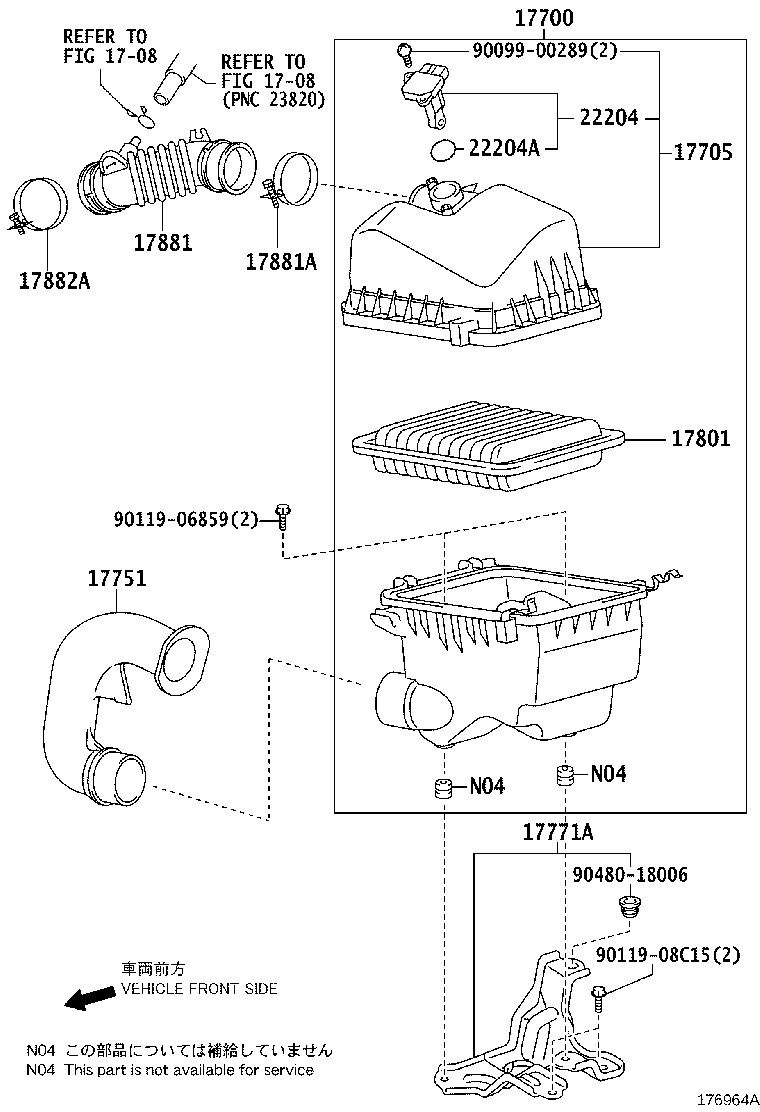

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-21120 |
1NZFE..NCP120 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-21090 |
1NZFE..NCP120 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-21160 |
1NZFE..NCP120 |
1 | ||
| 17751-21230 |
1NZFE..NCP120 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-21050 |
1NZFE..NCP120 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21050 |
1NZFE..NCP120 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-21091 |
1NZFE..NCP120 |
1 | ||
| 17881-21140 |
1NZFE..NCP120 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NZFE..NCP120 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
1NZFE..NCP120 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0C020 |
1NZFE..NCP120 (L) |
1 | ||
| 22204-22010 |
1NZFE..NCP120 (J) |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-08C15 | ||||
| 90480-18006 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(1208- )

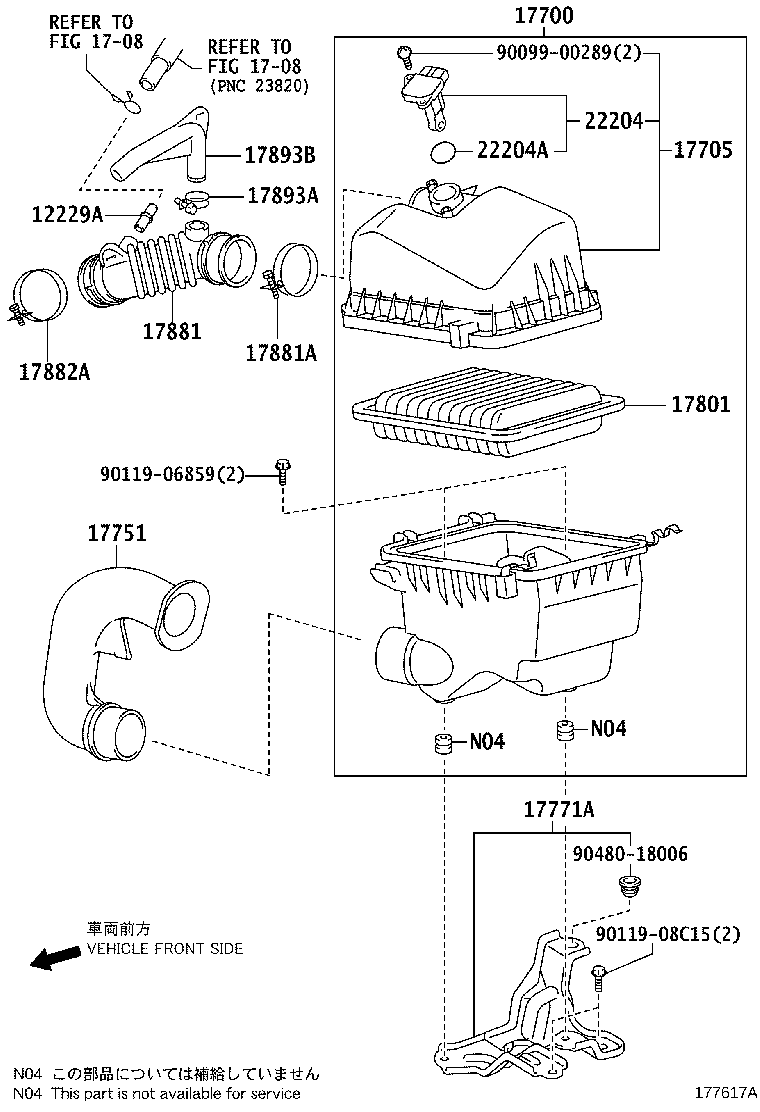

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12229A - PIPE, VENTILATION | ||||
| 12229-21010 |
1NZFE..NCP120 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-21120 |
1NZFE..NCP120 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-21090 |
1NZFE..NCP120 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-21160 |
1NZFE..NCP120 |
1 | ||
| 17751-21230 |
1NZFE..NCP120 |
1 | ||
| 17771A - BRACKET, AIR CLEANER | ||||
| 17771-21050 |
1NZFE..NCP120 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-21050 |
1NZFE..NCP120 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-21091 |
1NZFE..NCP120 |
1 | ||
| 17881-21140 |
1NZFE..NCP120 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
1NZFE..NCP120 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10690 |
1NZFE..NCP120 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10330 |
1NZFE..NCP120 |
1 | ||
| 17893B - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17893-37080 |
1NZFE..NCP120 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-0C020 |
1NZFE..NCP120 (L) |
1 | ||
| 22204-22010 |
1NZFE..NCP120 (J) |
1 | ||
| 22204A - RING, O(FOR INTAKE AIR FLOW METER) | ||||
| 90099-14141 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90099-00289 | ||||
| 90119-06859 | ||||
| 90119-08C15 | ||||
| 90480-18006 | ||||
| Linked diagrams | ||||
| 1708 | ||||
