NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

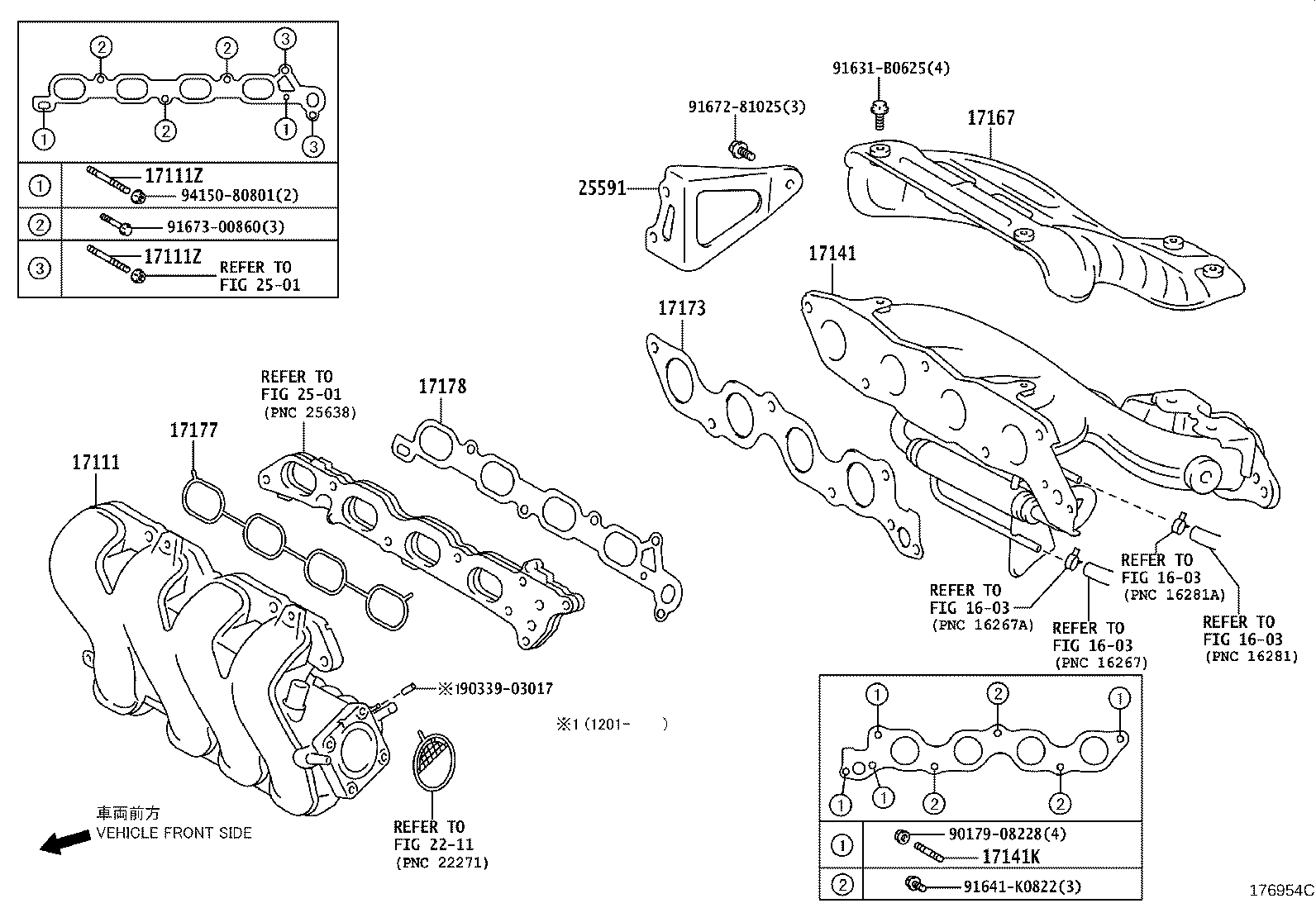

(1011-1208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-21070 |
1NZFE..NCP120 |
1 | ||
| 17101-21071 |
1NZFE..NCP120 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08049 |
1NZFE..NCP120 |
4 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08049 |
1NZFE..NCP120 |
4 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17104-21041 |
1NZFE..NCP120 |
1 | ||
| 17140-21120 |
1NZFE..NCP120 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08037 |
1NZFE..NCP120 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-21110 |
1NZFE..NCP120 |
1 | ||
| 17167-21180 |
1NZFE..NCP120 |
1 | ||
| 17167-21181 |
1NZFE..NCP120 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-21030 |
1NZFE..NCP120 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-21030 |
1NZFE..NCP120 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-21010 |
1NZFE..NCP120 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-21080 |
1NZFE..NCP120 |
1 | ||
| 25591-21060 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90179-08228 | ||||
| 90339-03017 | ||||
| 91631-B0625 | ||||
| 91641-K0822 | ||||
| 91672-81025 | ||||
| 91673-00860 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2211 | ||||
| 2501 | ||||

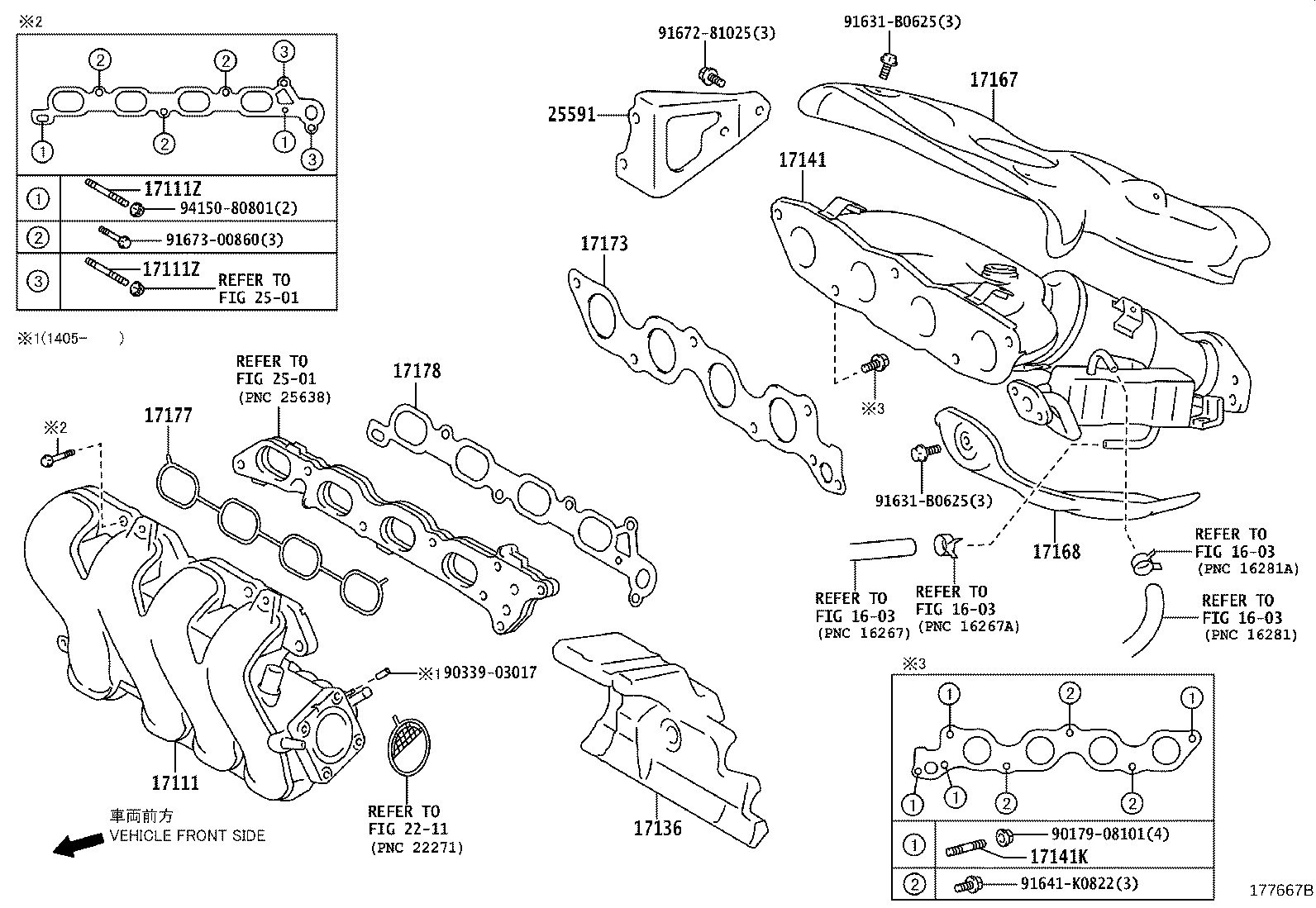

(1208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-21070 |
1NZFE..NCP120 |
1 | ||
| 17101-21071 |
1NZFE..NCP120 |
1 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08049 |
1NZFE..NCP120 |
4 | ||
| 17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08049 |
1NZFE..NCP120 |
4 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-21010 |
1NZFE..NCP120 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17104-21041 |
1NZFE..NCP120 |
1 | ||
| 17140-21120 |
1NZFE..NCP120 |
1 | ||
| 17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08037 |
1NZFE..NCP120 |
4 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-21110 |
1NZFE..NCP120 |
1 | ||
| 17167-21180 |
1NZFE..NCP120 |
1 | ||
| 17167-21181 |
1NZFE..NCP120 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-21070 |
1NZFE..NCP120 |
1 | ||
| 17168-21071 |
1NZFE..NCP120 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-21030 |
1NZFE..NCP120 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-21030 |
1NZFE..NCP120 |
1 | ||
| 17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2 | ||||
| 17178-21010 |
1NZFE..NCP120 |
1 | ||
| 25591 - BRACKET, MANIFOLD SUPPORT | ||||
| 25591-21080 |
1NZFE..NCP120 |
1 | ||
| 25591-21060 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90179-08101 | ||||
| 90339-03017 | ||||
| 91631-B0625 | ||||
| 91641-K0822 | ||||
| 91672-81025 | ||||
| 91673-00860 | ||||
| 94150-80801 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2211 | ||||
| 2501 | ||||
