NCP120R-CHXGKH (2010)
Toyota Ractis

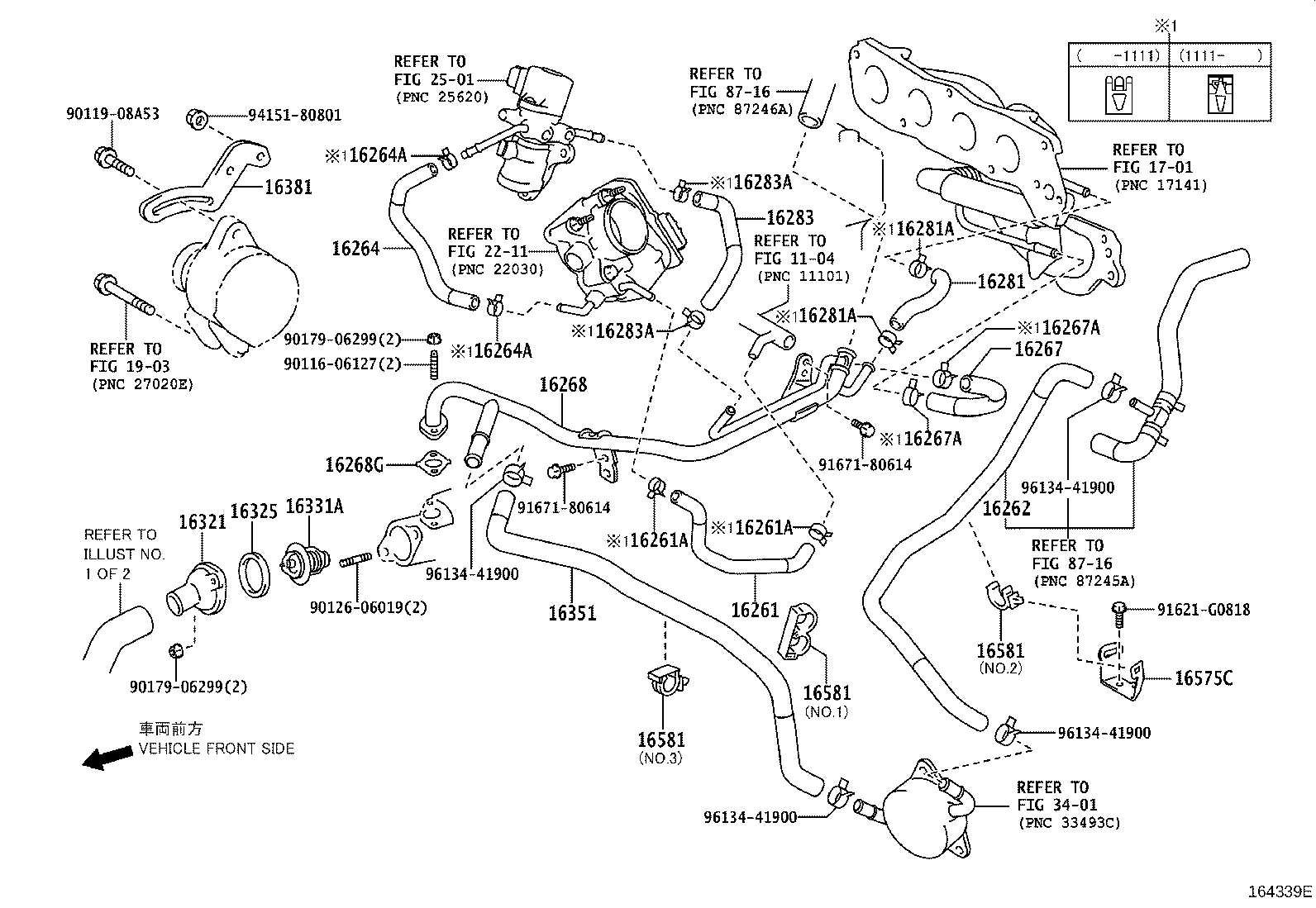

ILLUST NO. 2 OF 2(1011-1208)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-21070 |
1NZFE..NCP120 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-21020 |
1NZFE..NCP120 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21060 |
1NZFE..NCP120 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-21060 |
1NZFE..NCP120 |
1 | ||
| 16267-21020 |
1NZFE..NCP120 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21120 |
1NZFE..NCP120 |
1 | ||
| 16268-21050 |
1NZFE..NCP120 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21021 |
1NZFE..NCP120 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-21020 |
1NZFE..NCP120 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-21011 |
1NZFE..NCP120 |
1 | ||
| 16283-21010 |
1NZFE..NCP120 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
1NZFE..NCP120 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NZFE..NCP120 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03142 |
1NZFE..NCP120 *WAX 88-100 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-21010 |
1NZFE..NCP120 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-21040 |
1NZFE..NCP120 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-21020 |
1NZFE..NCP120 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-08A53 | ||||
| 90126-06019 | ||||
| 90179-06299 | ||||
| 91621-G0818 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1701 | ||||
| 1903 | ||||
| 2211 | ||||
| 2501 | ||||
| 3401 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(1208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-21070 |
1NZFE..NCP120 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16262 - HOSE, WATER INLET | ||||
| 16262-21020 |
1NZFE..NCP120 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-21060 |
1NZFE..NCP120 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-21060 |
1NZFE..NCP120 |
1 | ||
| 16267-21020 |
1NZFE..NCP120 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-21120 |
1NZFE..NCP120 |
1 | ||
| 16268-21050 |
1NZFE..NCP120 |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-21021 |
1NZFE..NCP120 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-21020 |
1NZFE..NCP120 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-21011 |
1NZFE..NCP120 |
1 | ||
| 16283-21010 |
1NZFE..NCP120 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 90467-13054 |
1NZFE..NCP120 |
2 | ||
| 96136-41501 |
1NZFE..NCP120 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-21020 |
1NZFE..NCP120 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1NZFE..NCP120 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03142 |
1NZFE..NCP120 *WAX 88-100 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-21010 |
1NZFE..NCP120 |
1 | ||
| 16575B - BRACKET, WATER HOSE CLAMP, NO.2 | ||||
| 16575-21031 |
1NZFE..NCP120 |
1 | ||
| 16575-21030 |
1NZFE..NCP120 |
1 | ||
| 16575C - BRACKET, WATER HOSE CLAMP, NO.1 | ||||
| 16575-21020 |
1NZFE..NCP120 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-21020 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16581-21070 |
1NZFE..NCP120 NO.3 |
1 | ||
| 16581-21030 |
1NZFE..NCP120 NO.2 |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90126-06019 | ||||
| 90179-06299 | ||||
| 90404-52039 | ||||
| 90929-01453 | ||||
| 91621-G0818 | ||||
| 91671-80614 | ||||
| 91672-81025 | ||||
| 96134-41900 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1501 | ||||
| 1701 | ||||
| 1903 | ||||
| 2211 | ||||
| 2501 | ||||
| 3401 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 2(1011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-21100 |
1NZFE..NCP120 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-28150 |
1NZFE..NCP120 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-21270 |
1NZFE..NCP120 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
1NZFE..NCP120 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1NZFE..NCP120 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-21200 |
1NZFE..NCP120 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1NZFE..NCP120 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-23030 |
1NZFE..NCP120 |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-21080 |
1NZFE..NCP120 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16401-31520 |
1NZFE..NCP120 |
1 | ||
| 16522 - BRACKET, WATER FILLER | ||||
| 16522-21010 |
1NZFE..NCP120 |
1 | ||
| 16523A - CUSHION, RADIATOR SUPPORT | ||||
| 16523-21030 |
1NZFE..NCP120 |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-22025 |
1NZFE..NCP120 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-21120 |
1NZFE..NCP120 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP120 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 96136-43901 |
1NZFE..NCP120 NO.1 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-21090 |
1NZFE..NCP120 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
1NZFE..NCP120 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
1NZFE..NCP120 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90467-34004 |
1NZFE..NCP120 NO.2 |
1 | ||
| 90467-33006 |
1NZFE..NCP120 NO.1 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-21060 |
1NZFE..NCP120 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP120 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-33006 |
1NZFE..NCP120 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-21110 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 91631-B0616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1709 | ||||
