NCP120R-CHXGKH (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NZFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

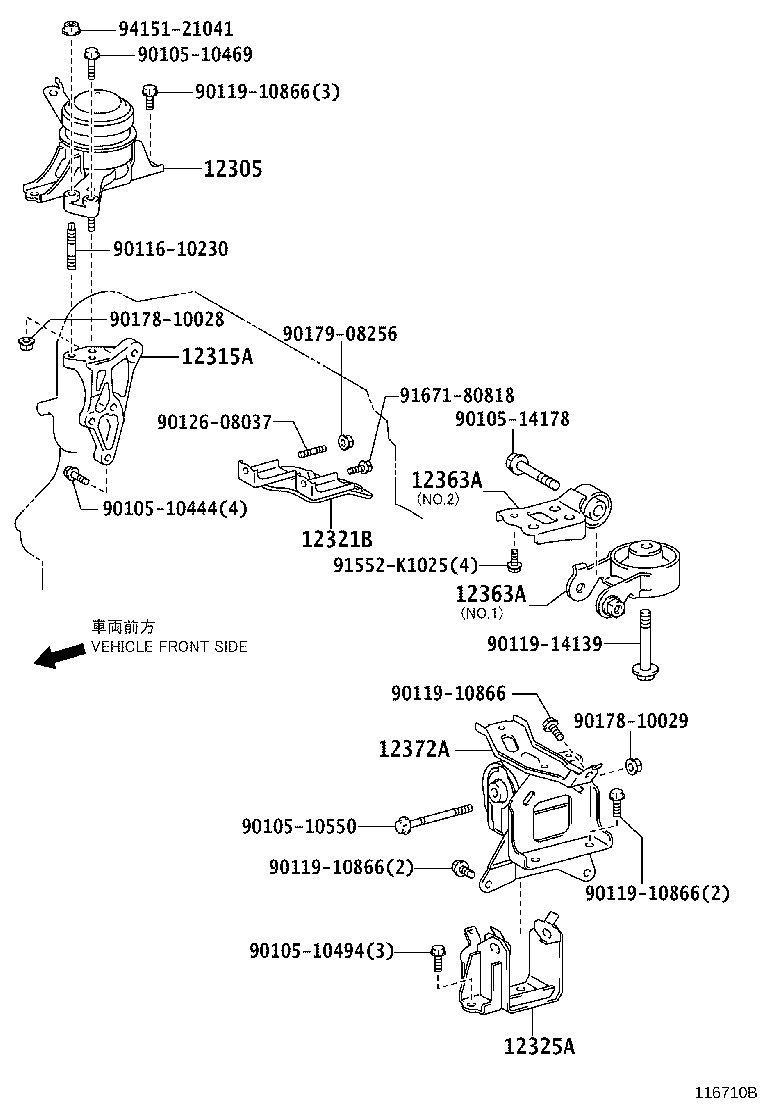

(1011-1208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21520 |
1NZFE..NCP120 |
1 | ||
| 12305-21370 |
1NZFE..NCP120 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21044 |
1NZFE..NCP120 |
1 | ||
| 12315-21043 |
1NZFE..NCP120 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
1NZFE..NCP120 |
1 | ||
| 43409-12080 |
1NZFE..NCP120 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21170 |
1NZFE..NCP120 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-21150 |
1NZFE..NCP120 NO.1 |
1 | ||
| 12364-21110 |
1NZFE..NCP120 NO.2 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-21150 |
1NZFE..NCP120 NO.1 |
1 | ||
| 12364-21110 |
1NZFE..NCP120 NO.2 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21310 |
1NZFE..NCP120 |
1 | ||
| Common parts | ||||
| 90105-10444 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90126-08037 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08256 | ||||
| 91552-K1025 | ||||
| 91671-80818 | ||||
| 94151-21041 | ||||

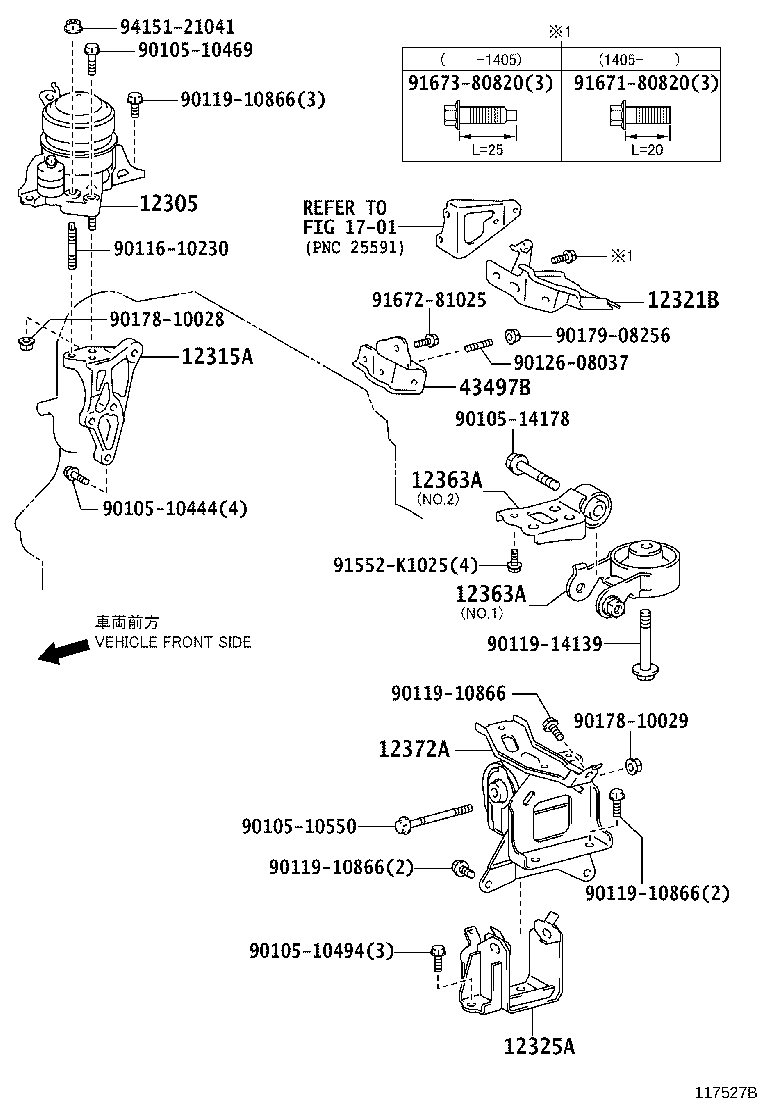

(1208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH | ||||
| 12305-21520 |
1NZFE..NCP120 |
1 | ||
| 12305-21370 |
1NZFE..NCP120 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-21044 |
1NZFE..NCP120 |
1 | ||
| 12315-21043 |
1NZFE..NCP120 |
1 | ||
| 12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT | ||||
| 43409-52020 |
1NZFE..NCP120 |
1 | ||
| 43409-12080 |
1NZFE..NCP120 |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-21170 |
1NZFE..NCP120 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-21150 |
1NZFE..NCP120 NO.1 |
1 | ||
| 12364-21110 |
1NZFE..NCP120 NO.2 |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-21150 |
1NZFE..NCP120 NO.1 |
1 | ||
| 12364-21110 |
1NZFE..NCP120 NO.2 |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-21310 |
1NZFE..NCP120 |
1 | ||
| 43497B - BRACKET, DRIVE SHAFT HEAT INSULATOR | ||||
| 43497-12030 |
NCP120 |
1 | ||
| Common parts | ||||
| 90105-10444 | ||||
| 90105-10469 | ||||
| 90105-10494 | ||||
| 90105-10550 | ||||
| 90105-14178 | ||||
| 90116-10230 | ||||
| 90119-10866 | ||||
| 90119-14139 | ||||
| 90126-08037 | ||||
| 90178-10028 | ||||
| 90178-10029 | ||||
| 90179-08256 | ||||
| 91552-K1025 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 91673-80820 | ||||
| 94151-21041 | ||||
| Linked diagrams | ||||
| 1701 | ||||
