LF50R-HRMRSD (1999)
Toyota Qualis
Production
Dec 1999
-
Dec 2004
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )LF50

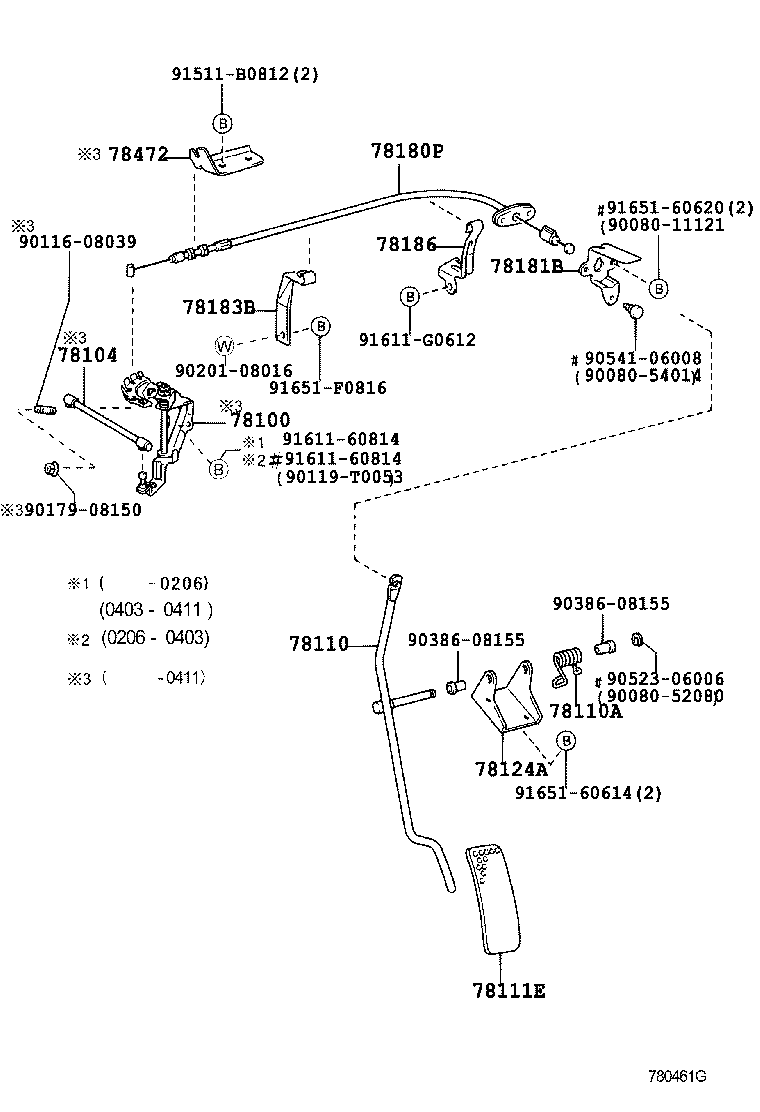

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-35071 |
LF50 |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-22140 |
LF50 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78102-0B070 |
LF50,RZF50 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-32037 |
LF50,RZF50 |
1 | ||
| 78111E - PAD, ACCELERATOR PEDAL | ||||
| 78111-0B050 |
LF50,RZF50 |
1 | ||
| 78124A - BRACKET, ACCELERATOR PEDAL ROD | ||||
| 78124-0B070 |
LF50,RZF50 |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-0B090 |
LF50 |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-38010 |
LF50 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 90959-01342 |
LF50 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-38150 |
LF50,RZF50 (J) |
1 | ||
| 78186-0B030 |
LF50,RZF50 (L) |
1 | ||
| 78472 - SUPPORT, THROTTLE CONTROL CABLE | ||||
| 78472-35010 |
LF50 |
1 | ||
| Common parts | ||||
| 90080-11121 | ||||
| 90080-52080 | ||||
| 90080-54014 | ||||
| 90116-08039 | ||||
| 90119-T0053 | ||||
| 90179-08150 | ||||
| 90201-08016 | ||||
| 90386-08155 | ||||
| 90523-06006 | ||||
| 90541-06008 | ||||
| 91511-B0812 | ||||
| 91611-60814 | ||||
| 91611-G0612 | ||||
| 91651-60614 | ||||
| 91651-60620 | ||||
| 91651-F0816 | ||||
