LF50R-HRMRSD (1999)
Toyota Qualis

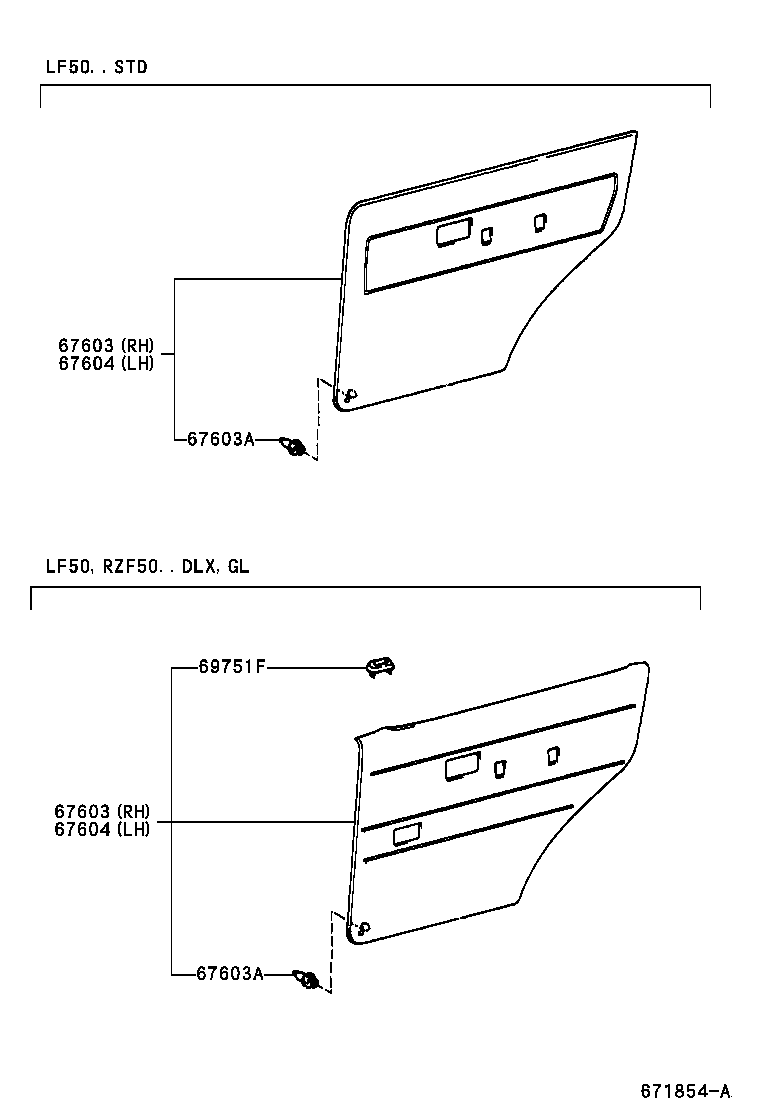

ILLUST NO. 1 OF 2(9912-0209)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
LF50..STD |
24 | ||
| 67771-12050 |
LF50,RZF50..STD |
24 | ||
| 90467-10161 |
LF50,RZF50..STD |
24 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
LF50..STD |
24 | ||
| 67771-12050 |
LF50,RZF50..STD |
24 | ||
| 90467-10161 |
LF50,RZF50..STD |
24 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||

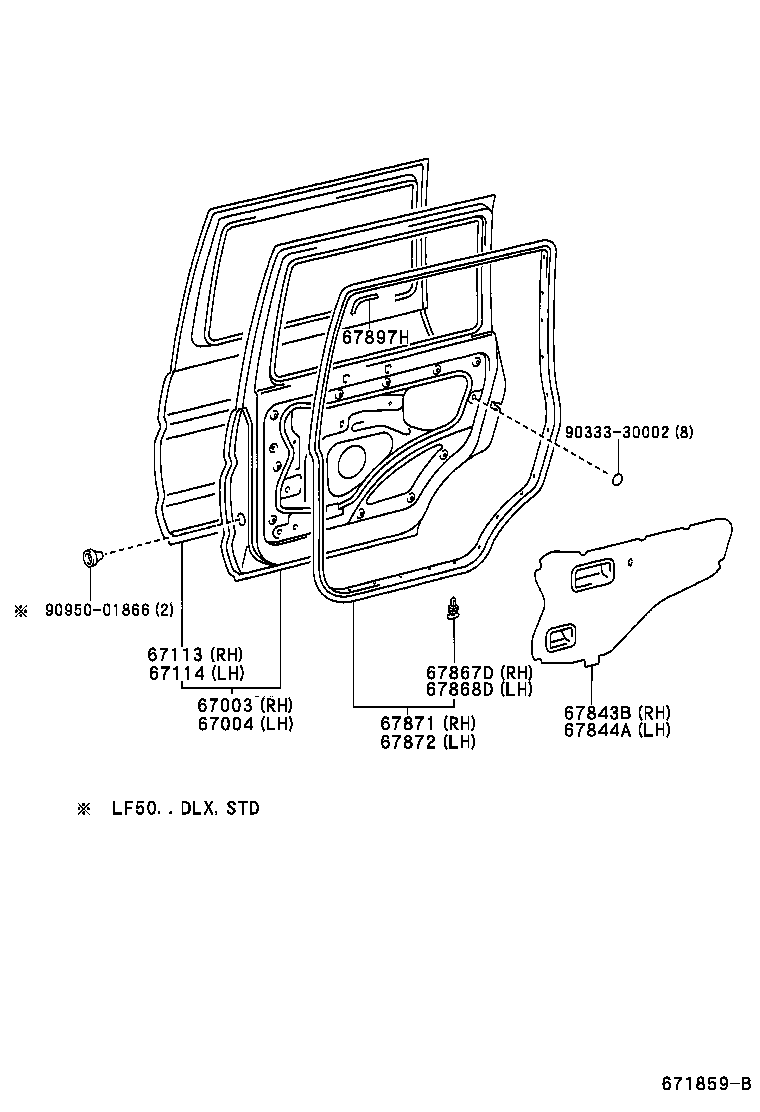

ILLUST NO. 2 OF 2(9912-0209)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0B060 |
LF50,RZF50 |
1 | ||
| 67003-0B170 |
LF50,RZF50..STD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0B170 |
LF50,RZF50..STD |
1 | ||
| 67004-0B060 |
LF50,RZF50 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0B050 |
LF50,RZF50 |
1 | ||
| 67113-0B060 |
LF50,RZF50..STD |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0B050 |
LF50,RZF50 |
1 | ||
| 67114-0B060 |
LF50,RZF50..STD |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67841-0B070 |
LF50..STD |
1 | ||
| 67805-0B010 |
LF50..STD |
1 | ||
| 67841-0B100 |
LF50,RZF50..STD |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67841-0B100 |
LF50,RZF50..STD |
1 | ||
| 67841-0B070 |
LF50..STD |
1 | ||
| 67806-0B010 |
LF50..STD |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-0B050 |
LF50,RZF50 |
25 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-0B050 |
LF50,RZF50 |
25 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0B060 |
LF50,RZF50 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0B060 |
LF50,RZF50 |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 67897-0B010 |
LF50,RZF50 |
2 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01866 | ||||

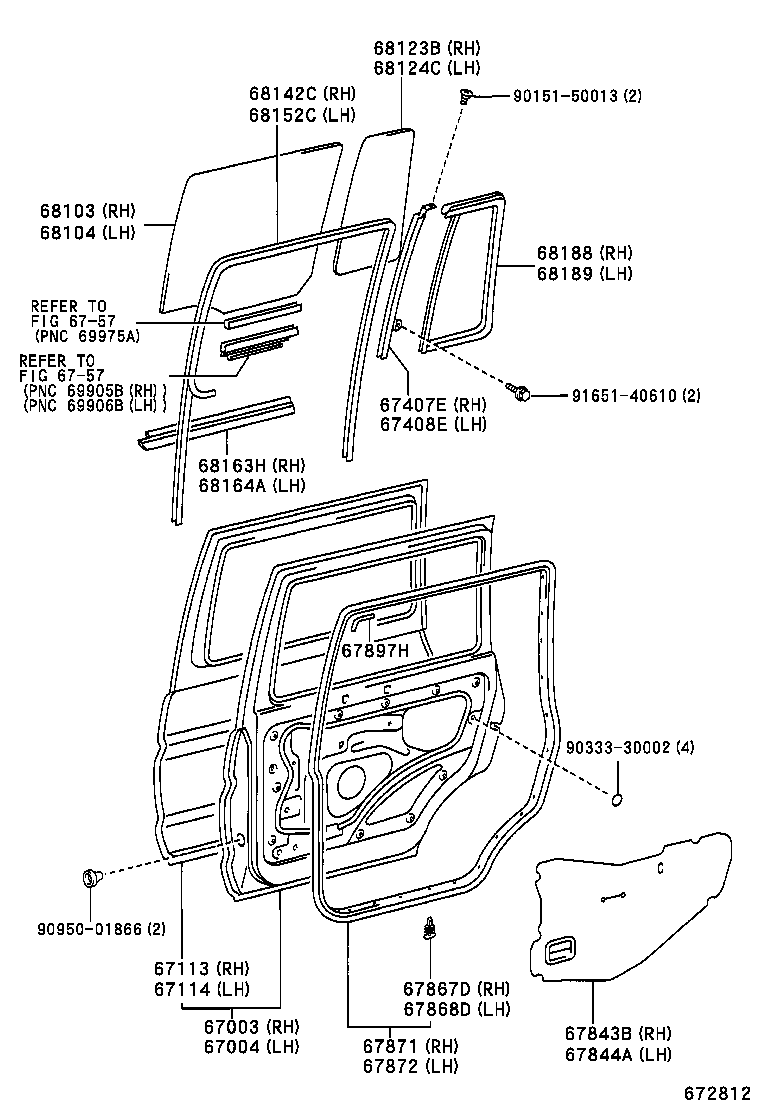

ILLUST NO. 2 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-0B060 |
LF50,RZF50 |
1 | ||
| 67003-0B170 |
LF50,RZF50..STD |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-0B170 |
LF50,RZF50..STD |
1 | ||
| 67004-0B060 |
LF50,RZF50 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-0B050 |
LF50,RZF50 |
1 | ||
| 67113-0B060 |
LF50,RZF50..STD |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-0B050 |
LF50,RZF50 |
1 | ||
| 67114-0B060 |
LF50,RZF50..STD |
1 | ||
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-38010 |
LF50,RZF50 |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-38010 |
LF50,RZF50 |
1 | ||
| 67843B - COVER, REAR DOOR SERVICE HOLE, NO.2 RH | ||||
| 67841-0B070 |
LF50..STD |
1 | ||
| 67805-0B010 |
LF50..STD |
1 | ||
| 67841-0B100 |
LF50,RZF50..STD |
1 | ||
| 67844A - COVER, REAR DOOR SERVICE HOLE, NO.2 LH | ||||
| 67841-0B100 |
LF50,RZF50..STD |
1 | ||
| 67841-0B070 |
LF50..STD |
1 | ||
| 67806-0B010 |
LF50..STD |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-0B050 |
LF50,RZF50 |
25 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-0B050 |
LF50,RZF50 |
25 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-0B060 |
LF50,RZF50 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-0B060 |
LF50,RZF50 |
1 | ||
| 67897H - CUSHION, REAR DOOR | ||||
| 67897-0B010 |
LF50,RZF50 |
2 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-0B100 |
LF50,RZF50..STD *TEM,T=3.5 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-0B100 |
LF50,RZF50..STD *TEM,T=3.5 |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-0B090 |
LF50,RZF50..STD *TEM,T=3.5 |
1 | ||
| 68124C - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-0B090 |
LF50,RZF50..STD *TEM,T=3.5 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-0B040 |
LF50,RZF50 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-0B020 |
LF50,RZF50 |
1 | ||
| 68163H - WEATHERSTRIP, REAR DOOR GLASS, OUTER RH | ||||
| 68163-0B020 |
LF50,RZF50 |
1 | ||
| 68164A - WEATHERSTRIP, REAR DOOR GLASS, OUTER LH | ||||
| 68164-0B010 |
LF50,RZF50 |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-0B050 |
LF50,RZF50 |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-0B050 |
LF50,RZF50 |
1 | ||
| Common parts | ||||
| 90151-50013 | ||||
| 90333-30002 | ||||
| 90950-01866 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 6757 | ||||

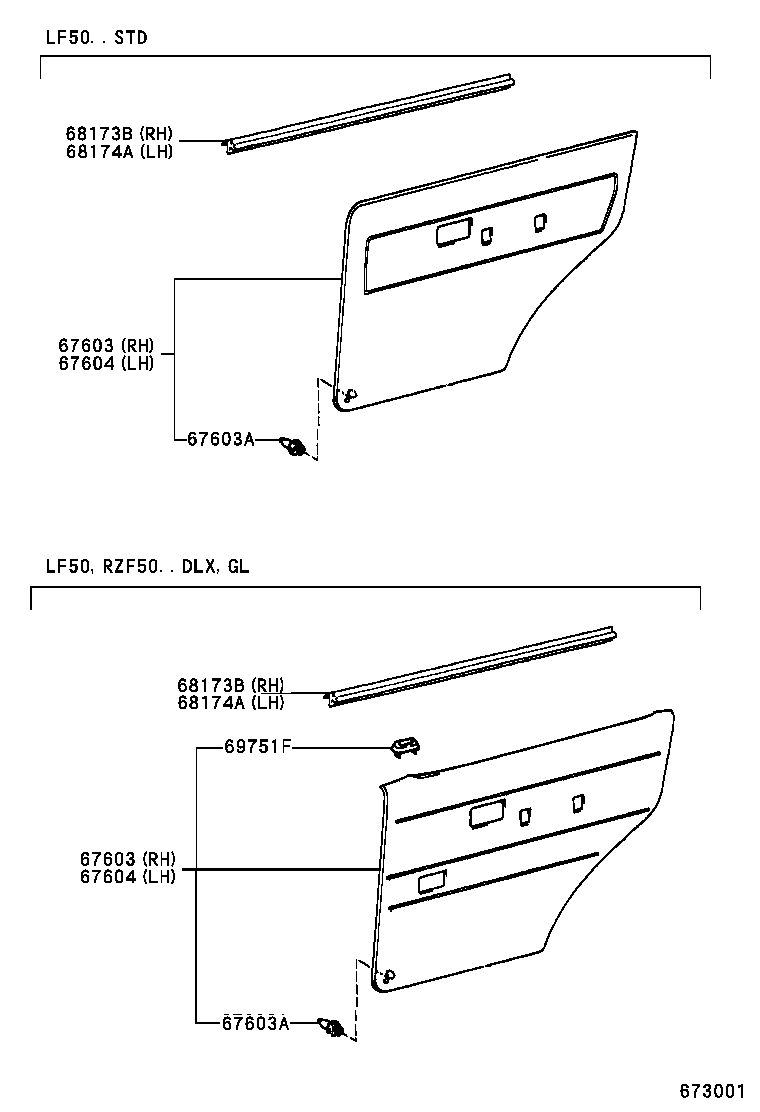

ILLUST NO. 1 OF 2(0209- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67630-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
LF50..STD |
24 | ||
| 67771-12050 |
LF50,RZF50..STD |
24 | ||
| 90467-10161 |
LF50,RZF50..STD |
24 | ||
| 67603A - RETAINER(FOR REAR DOOR TRIM BOARD) | ||||
| 67771-12050 |
LF50..STD |
24 | ||
| 67771-12050 |
LF50,RZF50..STD |
24 | ||
| 90467-10161 |
LF50,RZF50..STD |
24 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-0B180B0 |
LF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 67640-0B770B0 |
LF50,RZF50..STD BLUISH GRAY,TRIM1# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0B070 |
LF50,RZF50 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-0B070 |
LF50,RZF50 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0B060 |
LF50,RZF50 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-0B060 |
LF50,RZF50 |
1 | ||
