LF50R-HRMRSD (1999)
Toyota Qualis
Production
Dec 1999
-
Dec 2004
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9912- )

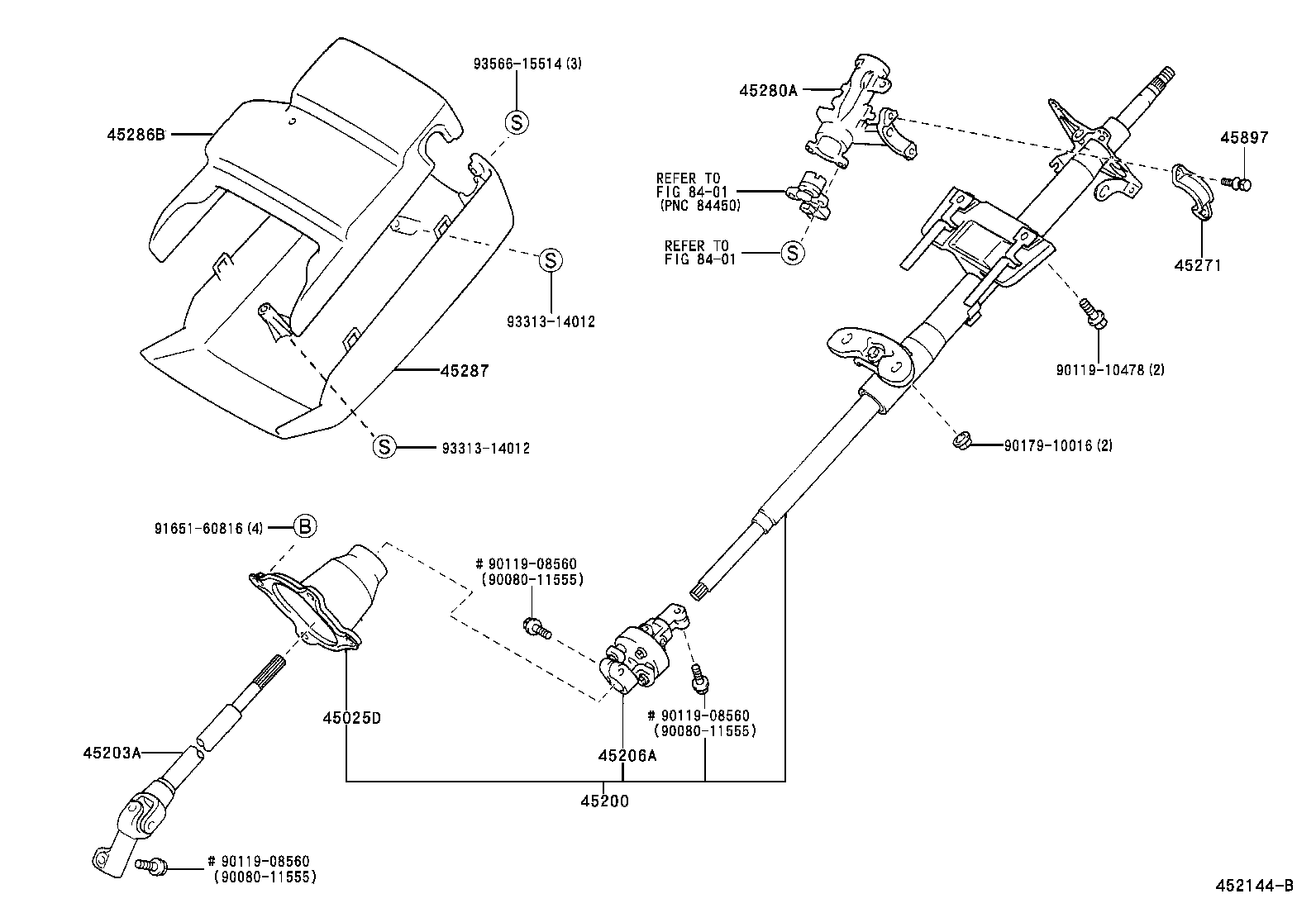

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-0B020 |
LF50,RZF50 |
1 | ||
| 45025-0B021 |
LF50,RZF50 |
1 | ||
| 45200 - POST ASSY, STEERING | ||||
| 45200-0B010 |
LF50;RZF50..STD |
1 | ||
| 45203A - SHAFT, STEERING INTERMEDIATE, NO.2 | ||||
| 45203-0B020 |
LF50,RZF50..STD W(POWER STEERING) |
1 | ||
| 45203-0B010 |
LF50,RZF50..STD |
1 | ||
| 45206A - YOKE SUB-ASSY, STEERING SLIDING W/COUPLING | ||||
| 45206-0B010 |
LF50;RZF50..STD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-16020 |
LF50,RZF50 |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-0B030 |
LF50,RZF50 (L) |
1 | ||
| 45280-12321 |
LF50,RZF50 (J) |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
LF50,RZF50 |
2 | ||
| Common parts | ||||
| 90080-11555 | ||||
| 90119-08560 | ||||
| 90119-10478 | ||||
| 90179-10016 | ||||
| 91651-60816 | ||||
| 93313-14012 | ||||
| 93566-15514 | ||||
| Linked diagrams | ||||
| 8401 | ||||
