LF50R-HRMNSD (2002)
Toyota Qualis

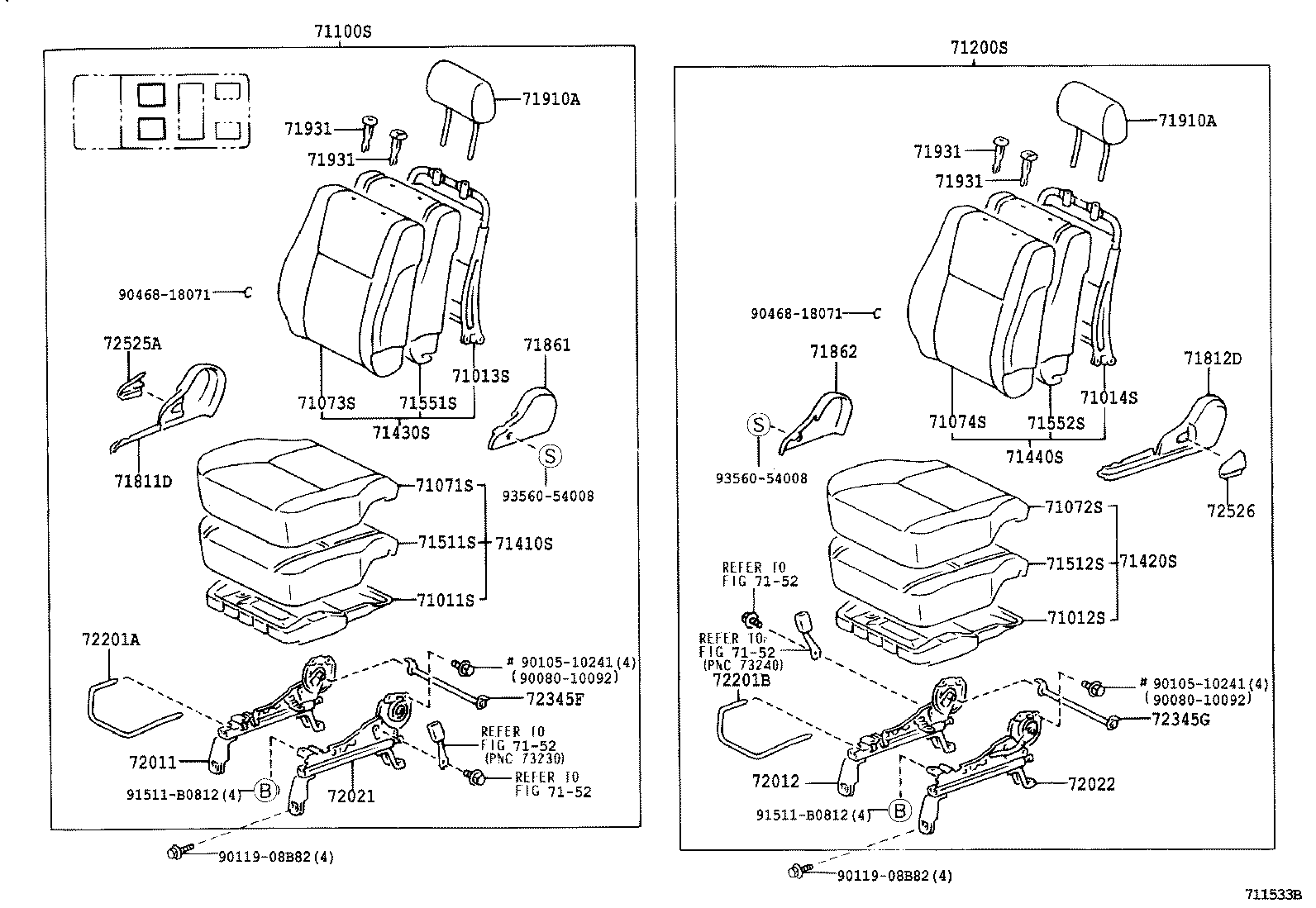

ILLUST NO. 1 OF 3(9912-0209)
FRONT SEAT (SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0B060 |
LF50;RZF50..GL,STD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-0B050 |
LF50,RZF50 |
1 | ||
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71013-0B050 |
LF50,RZF50..GL |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71071-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71071-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0B251B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072-0B251B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072-0B250B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100-0B172B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0B220B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200-0B221B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200-0B222B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0B131B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410-0B131B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0B250B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420-0B251B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420-0B251B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71430-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0B040 |
LF50,RZF50 |
1 | ||
| 71501-0B040 |
RZF50..GL;LF50..DLX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-0B040 |
LF50,RZF50..GL |
1 | ||
| 71501-0B040 |
LF50,RZF50..DLX,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-0B041 |
LF50,RZF50 |
1 | ||
| 71505-0B040 |
LF50,RZF50 |
1 | ||
| 71505-0B042 |
LF50,RZF50..DLX,GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-0B042 |
LF50,RZF50..DLX,GL |
1 | ||
| 71505-0B040 |
LF50,RZF50..GL |
1 | ||
| 71505-0B041 |
LF50,RZF50..GL |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-0B030B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0B040B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0B010B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861-0B010B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-0B010B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0B020B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862-0B020B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862-0B020B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72011-0B030 |
LF50,RZF50 |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72012-0B030 |
LF50,RZF50..DLX,GL |
1 | ||
| 72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH | ||||
| 72021-0B030 |
LF50,RZF50 |
1 | ||
| 72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH | ||||
| 72022-0B030 |
LF50,RZF50..DLX,GL |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72201-0B030 |
LF50,RZF50 |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72201-0B030 |
LF50,RZF50..DLX,GL |
1 | ||
| 72345F - PIPE, RECLINING CONNECTING, RH | ||||
| 72345-0B060 |
LF50,RZF50 |
1 | ||
| 72345G - PIPE, RECLINING CONNECTING, LH | ||||
| 72345-0B060 |
LF50,RZF50..DLX,GL |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-0B030B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526-0B040B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-10092 | ||||
| 90105-10241 | ||||
| 90119-08B82 | ||||
| 90468-18071 | ||||
| 91511-B0812 | ||||
| 93560-54008 | ||||
| Linked diagrams | ||||
| 7152 | ||||

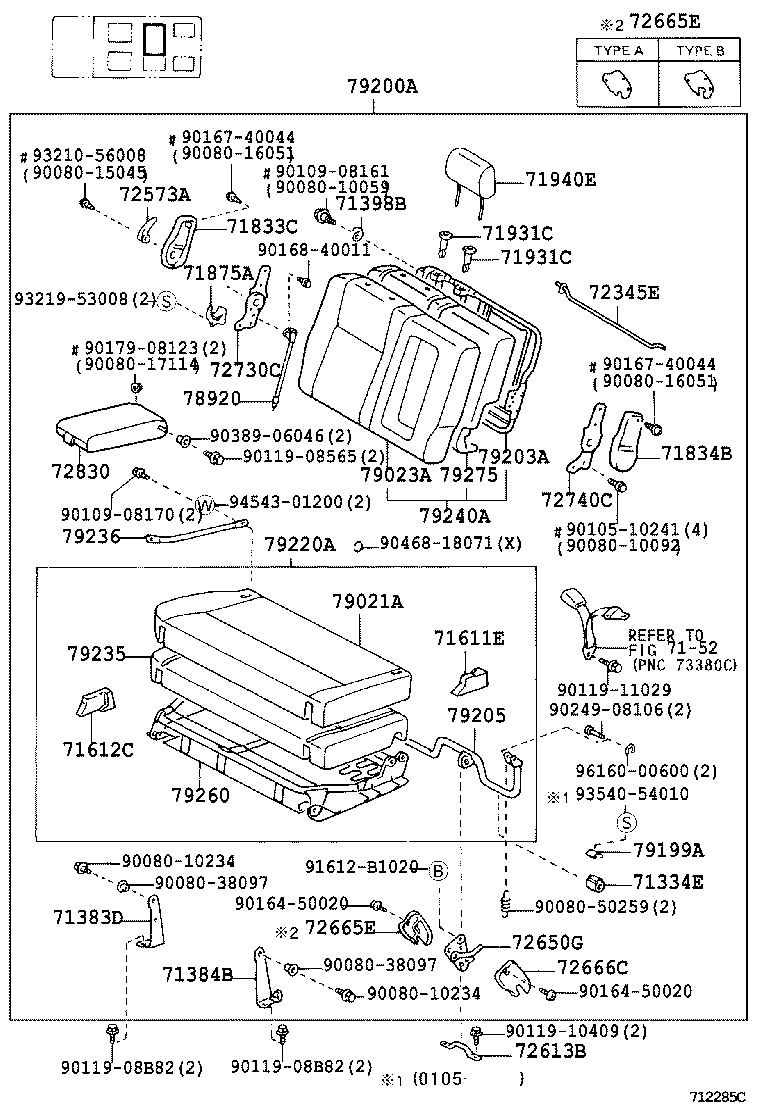

ILLUST NO. 2 OF 3(0201-0209)GL
REAR NO.1 SEAT (FOR 02S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71334E - STOPPER, REAR SEAT LEG, NO.2 | ||||
| 71334-0B020 |
LF50 |
2 | ||
| 71383D - BRACKET, REAR NO.2 SEAT CUSHION SET, REAR RH | ||||
| 71308-0B090 |
LF50,RZF50..GL |
1 | ||
| 71384B - BRACKET, REAR NO.2 SEAT CUSHION SET, REAR LH | ||||
| 71309-0B010 |
LF50,RZF50..GL |
1 | ||
| 71398B - HOLDER, REAR SEAT BACK, LH | ||||
| 71398-0B040 |
LF50,RZF50..GL |
1 | ||
| 71611E - PAD, REAR NO.2 SEAT CUSHION, A | ||||
| 71611-0B110 |
LF50,RZF50..GL |
1 | ||
| 71612C - PAD, REAR SEAT CUSHION, C | ||||
| 71612-0B100 |
LF50,RZF50..GL |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71801-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71802-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0B020 |
LF50,RZF50..GL |
1 | ||
| 71875-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
2 | ||
| 71875-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71940E - HEADREST ASSY, NO.2 SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72345E - PIPE, RECLINING CONNECTING | ||||
| 72501-0B070 |
LF50,RZF50..GL |
1 | ||
| 72573A - LEVER, RECLINING CONTROL, NO.2 RH | ||||
| 72573-0B020B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0B010 |
LF50,RZF50..GL W(BENCH TYPE THIRD SEAT) |
4 | ||
| 72613-38050 |
LF50,RZF50..GL |
4 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-0B030 |
LF50,RZF50..GL PNC 72665E = TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72650-0B070 |
LF50,RZF50..GL PNC 72665E = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72665E - COVER, REAR SEAT LOCK, NO.2 RH | ||||
| 72665-0B050 |
LF50,RZF50..GL TYPE A |
1 | ||
| 72665-0B070 |
LF50,RZF50..GL TYPE B |
1 | ||
| 72665E - COVER, REAR SEAT LOCK, NO.2 RH | ||||
| 72665-0B050 |
LF50,RZF50..GL TYPE A |
1 | ||
| 72665-0B070 |
LF50,RZF50..GL TYPE B |
1 | ||
| 72666C - COVER, REAR SEAT LOCK, NO.2 LH | ||||
| 72666-0B040 |
LF50,RZF50..GL |
1 | ||
| 72730C - ADJUSTER ASSY, NO.2 SEAT RECLINING, RH | ||||
| 72730-0B050 |
LF50,RZF50..GL |
1 | ||
| 72740C - ADJUSTER ASSY, NO.2 SEAT RECLINING, LH | ||||
| 72740-0B050 |
LF50,RZF50..GL |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 78920 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.2 | ||||
| 78910-0B220 |
LF50,RZF50..GL |
1 | ||
| 79021A - COVER SUB-ASSY, NO.2 SEAT CUSHION | ||||
| 79021-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79021-0B600 |
LF50,RZF50..GL |
1 | ||
| 79023A - COVER SUB-ASSY, NO.2 SEAT BACK | ||||
| 79023-0B150B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79199A - HOLDER, NO.2 SEAT LEG STOPPER | ||||
| 79199-0B010 |
LF50 |
2 | ||
| 79200A - SEAT ASSY, NO.2 | ||||
| 79200-0B230B0 |
LF50,RZF50..GL PNC 72665E = TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 79200-0B880 |
LF50,RZF50..GL W(REAR SEAT BELT);PNC 72665E = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79200-0B170B0 |
LF50,RZF50..GL W(REAR SEAT BELT);PNC 72665E = TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 79200-0B830 |
LF50,RZF50..GL PNC 72665E = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-0B100 |
LF50,RZF50..GL |
1 | ||
| 79205 - LEG SUB-ASSY, NO.2 SEAT | ||||
| 79205-0B010 |
LF50,RZF50..GL |
1 | ||
| 79220A - CUSHION ASSY, NO.2 SEAT | ||||
| 79220-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79220-0B540 |
LF50,RZF50..GL |
1 | ||
| 79235 - PAD, NO.2 SEAT CUSHION | ||||
| 79235-0B050 |
LF50,RZF50..GL |
1 | ||
| 79236 - LINK, NO.2 LH SEAT LEG | ||||
| 79236-0B010 |
LF50,RZF50..GL |
1 | ||
| 79240A - BACK ASSY, NO.2 SEAT | ||||
| 79240-0B150B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 79260-0B060 |
LF50,RZF50..GL |
1 | ||
| 79275 - PAD, NO.2 SEAT BACK | ||||
| 79027-0B090 |
LF50,RZF50..GL |
1 | ||
| Common parts | ||||
| 90080-10059 | ||||
| 90080-10092 | ||||
| 90080-10234 | ||||
| 90080-15045 | ||||
| 90080-16051 | ||||
| 90080-17114 | ||||
| 90080-38097 | ||||
| 90080-50259 | ||||
| 90105-10241 | ||||
| 90109-08161 | ||||
| 90109-08170 | ||||
| 90119-08565 | ||||
| 90119-08B82 | ||||
| 90119-10409 | ||||
| 90119-11029 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90179-08123 | ||||
| 90249-08106 | ||||
| 90389-06046 | ||||
| 90468-18071 | ||||
| 91612-B1020 | ||||
| 93210-56008 | ||||
| 93219-53008 | ||||
| 93540-54010 | ||||
| 94543-01200 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

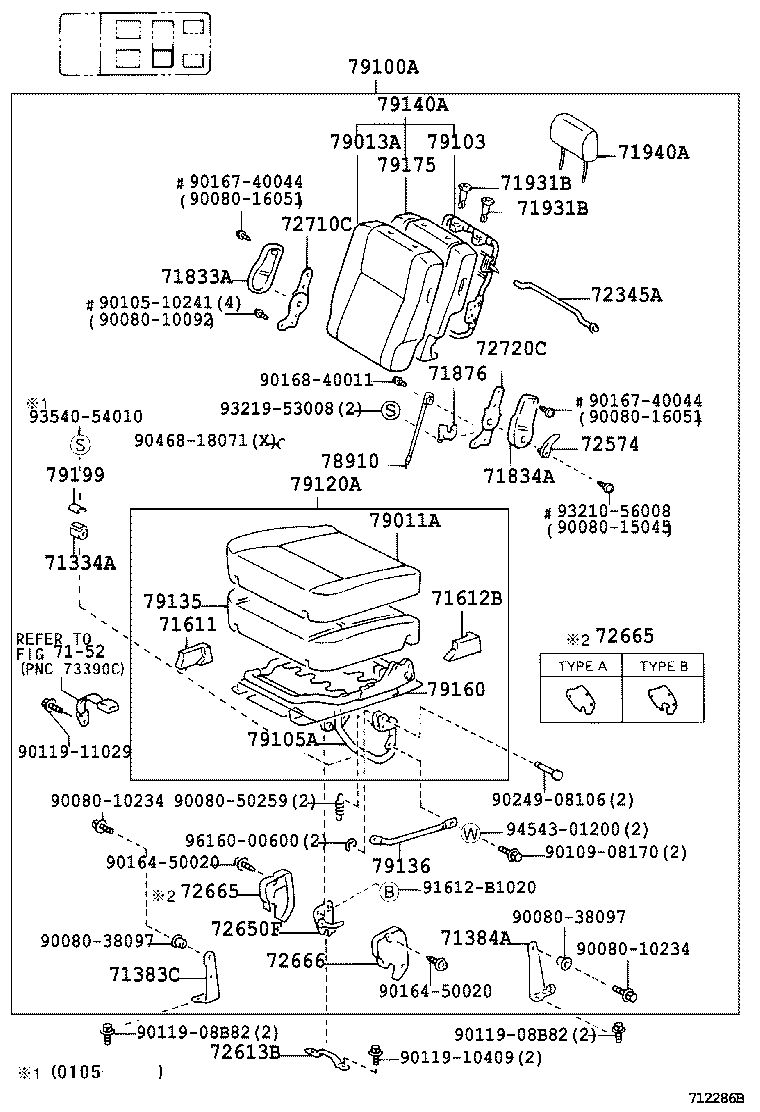

ILLUST NO. 2 OF 3(0201-0209)GL
REAR NO.1 SEAT (FOR 01S)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71334A - STOPPER, REAR SEAT LEG | ||||
| 71334-0B020 |
LF50 |
2 | ||
| 71383C - BRACKET, REAR SEAT CUSHION SET, REAR RH | ||||
| 71383-0B100 |
LF50,RZF50..GL |
1 | ||
| 71384A - BRACKET, REAR SEAT CUSHION SET, REAR LH | ||||
| 71384-0B060 |
LF50,RZF50..GL |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-0B100 |
LF50,RZF50..GL |
1 | ||
| 71612B - PAD, REAR SEAT CUSHION, B | ||||
| 71612-0B110 |
LF50,RZF50..GL |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71801-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71802-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-0B040 |
LF50,RZF50..GL |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72345A - PIPE, RECLINING CONNECTING | ||||
| 72501-0B050 |
LF50,RZF50..GL |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0B010 |
LF50,RZF50..GL W(BENCH TYPE THIRD SEAT) |
4 | ||
| 72613-38050 |
LF50,RZF50..GL |
4 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-0B030 |
LF50,RZF50..GL PNC 72665 = TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 72650-0B070 |
LF50,RZF50..GL PNC 72665 = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0B070 |
LF50,RZF50..GL TYPE B |
1 | ||
| 72665-0B050 |
LF50,RZF50..GL |
1 | ||
| 72665 - COVER, REAR SEAT BACK LOCK, RH | ||||
| 72665-0B070 |
LF50,RZF50..GL TYPE B |
1 | ||
| 72665-0B050 |
LF50,RZF50..GL |
1 | ||
| 72666 - COVER, REAR SEAT BACK LOCK, LH | ||||
| 72666-0B040 |
LF50,RZF50..GL |
1 | ||
| 72710C - ADJUSTER ASSY, NO.1 SEAT RECLINING, RH | ||||
| 72730-0B060 |
LF50,RZF50..GL |
1 | ||
| 72720C - ADJUSTER ASSY, NO.1 SEAT RECLINING, LH | ||||
| 72740-0B060 |
LF50,RZF50..GL |
1 | ||
| 78910 - CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1 | ||||
| 78910-0B210 |
LF50,RZF50..GL |
1 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-0B420B0 |
LF50,RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-0B160B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79013A - COVER SUB-ASSY, NO.1 SEAT BACK | ||||
| 79013-0B180B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79100A - SEAT ASSY, REAR NO.1 (FOR BENCH TYPE) | ||||
| 79100-0B180B0 |
LF50,RZF50..GL W(REAR SEAT BELT);PNC 72665 = TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 79100-0B830 |
LF50,RZF50..GL PNC 72665 = TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 79100-0B240B0 |
LF50,RZF50..GL PNC 72665 = TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1# |
1 | ||
| 79100-0B840 |
LF50,RZF50..GL PNC 72665 = TYPE B:REFER TO ILLUSTRATION;W(REAR SEAT BELT) |
1 | ||
| 79103 - FRAME SUB-ASSY, NO.1 SEAT BACK | ||||
| 79103-0B110 |
LF50,RZF50..GL |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-0B010 |
LF50,RZF50..GL |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-0B160B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79120-0B400B0 |
LF50,RZF50..GL W(REAR SEAT BELT),BLUISH GRAY,TRIM1# |
1 | ||
| 79135 - PAD, NO.1 SEAT CUSHION | ||||
| 79135-0B060 |
LF50,RZF50..GL |
1 | ||
| 79136 - LINK, NO.1 SEAT LEG | ||||
| 79136-0B010 |
LF50,RZF50..GL |
1 | ||
| 79140A - BACK ASSY, NO.1 SEAT | ||||
| 79140-0B180B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-0B060 |
LF50,RZF50..GL |
1 | ||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 79175 - PAD, NO.1 SEAT BACK | ||||
| 79017-0B060 |
LF50,RZF50..GL |
1 | ||
| 79199 - HOLDER, NO.1 SEAT LEG STOPPER | ||||
| 79199-0B010 |
LF50 |
2 | ||
| Common parts | ||||
| 90080-10092 | ||||
| 90080-10234 | ||||
| 90080-15045 | ||||
| 90080-16051 | ||||
| 90080-38097 | ||||
| 90080-50259 | ||||
| 90105-10241 | ||||
| 90109-08170 | ||||
| 90119-08B82 | ||||
| 90119-10409 | ||||
| 90119-11029 | ||||
| 90164-50020 | ||||
| 90167-40044 | ||||
| 90168-40011 | ||||
| 90249-08106 | ||||
| 90468-18071 | ||||
| 91612-B1020 | ||||
| 93210-56008 | ||||
| 93219-53008 | ||||
| 93540-54010 | ||||
| 94543-01200 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||

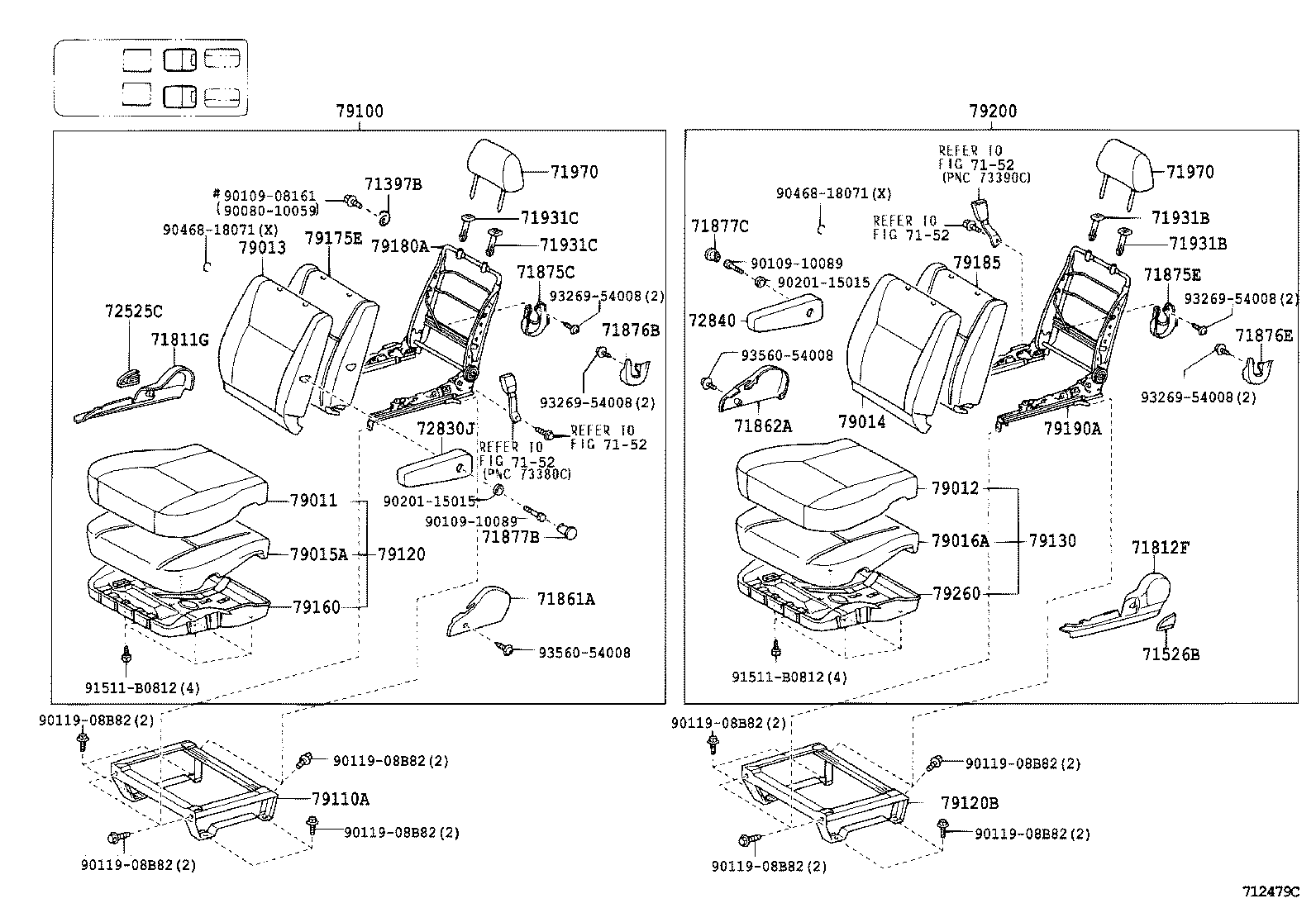

ILLUST NO. 2 OF 3(0209- )DLX,GL
REAR NO.1 SEAT (CAPTAIN SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397B - HOLDER, REAR SEAT BACK, RH | ||||
| 71398-0B040 |
LF50,RZF50..GL |
1 | ||
| 71526B - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71811G - SHIELD, REAR SEAT CUSHION, RH | ||||
| 71811-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71811-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812F - SHIELD, REAR SEAT CUSHION, LH | ||||
| 71812-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812-0B040B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861A - SHIELD, REAR SEAT CUSHION, INNER RH | ||||
| 71861-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862A - SHIELD, REAR SEAT CUSHION, INNER LH | ||||
| 71862-0B020B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862-0B020B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-06060B2 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71877B - COVER, REAR SEAT ARMREST HOLE RH | ||||
| 71877-26020 |
LF50,RZF50..GL |
1 | ||
| 71877C - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 71877-26020 |
LF50,RZF50..GL |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71931-0B030B0 |
LF50,RZF50..GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525-0B030B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72880-0B010 |
LF50,RZF50..GL |
1 | ||
| 72840 - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72890-0B010 |
LF50,RZF50..GL |
1 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0B700B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79011-0B700B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79012-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0B591B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79013-0B590B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79014-0B011B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79015A - PAD SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79015-0B010 |
LF50,RZF50..GL |
1 | ||
| 79016A - PAD SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79015-0B010 |
LF50,RZF50..GL |
1 | ||
| 79100 - SEAT ASSY, REAR NO.1 RH (FOR SEPARATE TYPE) | ||||
| 79100-0B772B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79100-0B770B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79110A - LEG ASSY, NO.1 SEAT, RH | ||||
| 79110-0B020 |
LF50,RZF50..GL |
1 | ||
| 79120 - CUSHION ASSY, NO.1 SEAT, RH | ||||
| 79120-0B680B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79120B - LEG ASSY, NO.1 SEAT, LH | ||||
| 79110-0B020 |
LF50,RZF50..GL |
1 | ||
| 79130 - CUSHION ASSY, NO.1 SEAT, LH | ||||
| 79130-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79160 - SPRING ASSY, NO.1 SEAT CUSHION | ||||
| 79160-0B060 |
LF50,RZF50..GL |
1 | ||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79017-0B190 |
LF50,RZF50..GL |
1 | ||
| 79017-0B191 |
LF50,RZF50..GL |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-0B031 |
LF50,RZF50..GL |
1 | ||
| 79180-0B030 |
LF50,RZF50..GL |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79018-0B011 |
LF50,RZF50..GL |
1 | ||
| 79018-0B010 |
LF50,RZF50..GL |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-0B010 |
LF50,RZF50..GL |
1 | ||
| 79190-0B011 |
LF50,RZF50..GL |
1 | ||
| 79200 - SEAT ASSY, REAR NO.1 LH (FOR SEPARATE TYPE) | ||||
| 79110-0B010B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79110-0B012B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 79260 - SPRING ASSY, NO.2 SEAT CUSHION | ||||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 79260-0B060 |
LF50,RZF50..GL |
1 | ||
| Common parts | ||||
| 90080-10059 | ||||
| 90109-08161 | ||||
| 90109-10089 | ||||
| 90119-08B82 | ||||
| 90201-15015 | ||||
| 90468-18071 | ||||
| 91511-B0812 | ||||
| 93269-54008 | ||||
| 93560-54008 | ||||
| Linked diagrams | ||||
| 7152 | ||||

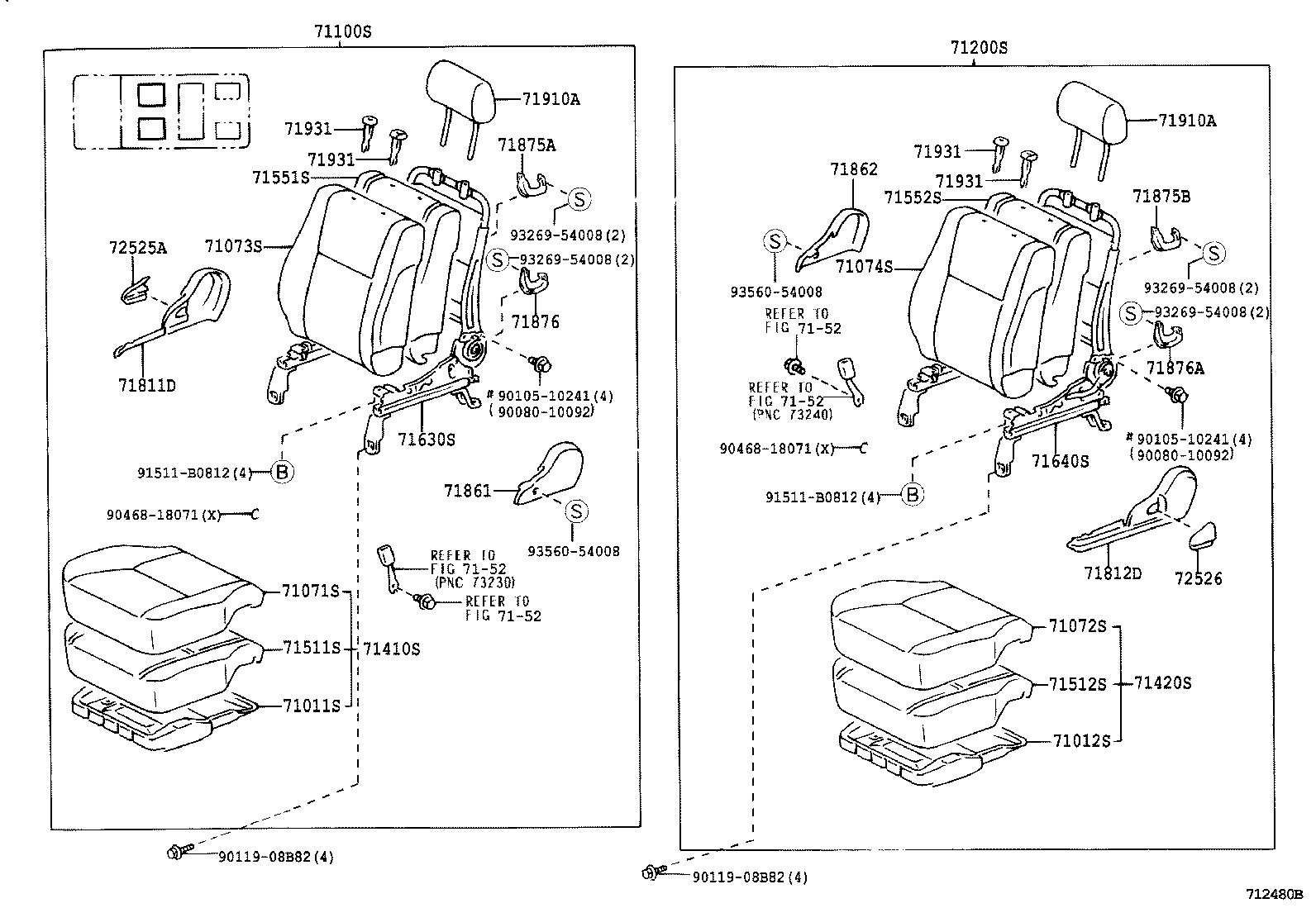

ILLUST NO. 1 OF 3(0209- )
FRONT SEAT (SEPARATE SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0B060 |
LF50;RZF50..GL,STD |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0B060 |
LF50,RZF50..GL |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71071-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71071-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0B251B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072-0B251B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71072-0B250B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71073-0B131B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100S - SEAT ASSY, FRONT RH | ||||
| 71100-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71100-0B172B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71200-0B220B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200-0B221B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71200-0B222B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-0B131B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410-0B130B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71410-0B131B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-0B250B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420-0B251B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71420-0B251B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-0B040 |
LF50,RZF50 |
1 | ||
| 71501-0B040 |
RZF50..GL;LF50..DLX,GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-0B040 |
LF50,RZF50..GL |
1 | ||
| 71501-0B040 |
LF50,RZF50..DLX,GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71505-0B041 |
LF50,RZF50 |
1 | ||
| 71505-0B040 |
LF50,RZF50 |
1 | ||
| 71505-0B042 |
LF50,RZF50..DLX,GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71505-0B042 |
LF50,RZF50..DLX,GL |
1 | ||
| 71505-0B040 |
LF50,RZF50..GL |
1 | ||
| 71505-0B041 |
LF50,RZF50..GL |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0B090 |
LF50,RZF50 W(SEPARATE SEAT) |
1 | ||
| 71630-0B091 |
LF50,RZF50..DLX,GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0B110 |
LF50,RZF50..DLX,GL |
1 | ||
| 71640-0B111 |
LF50,RZF50..DLX,GL |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71811-0B030B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0B040B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71812-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0B010B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 71861-0B010B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71861-0B010B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0B020B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862-0B020B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71862-0B020B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-0B020 |
LF50,RZF50..GL |
1 | ||
| 71875-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
2 | ||
| 71875-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71876-0B040 |
LF50,RZF50..GL |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06060B2 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0B170B0 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71910-0B171B1 |
LF50,RZF50..GL BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
RZF50;LF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71931-0B030B0 |
LF50,RZF50..DLX,GL W/O(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 71930-0B020B0 |
LF50,RZF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
1 | ||
| 71930-0B020B0 |
RZF50;LF50..DLX,GL W(LOCK),BLUISH GRAY,TRIM1# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 72525-0B030B0 |
LF50;RZF50..GL BLUISH GRAY,TRIM1# |
1 | ||
| 72525-0B030B0 |
LF50,RZF50 BLUISH GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526-0B040B0 |
LF50,RZF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| 72526-0B040B0 |
RZF50..GL;LF50..DLX,GL BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90080-10092 | ||||
| 90105-10241 | ||||
| 90119-08B82 | ||||
| 90468-18071 | ||||
| 91511-B0812 | ||||
| 93269-54008 | ||||
| 93560-54008 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
