LF50R-HRMNSD (2002)

Toyota Qualis

Production Jan 2002 - Dec 2004
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

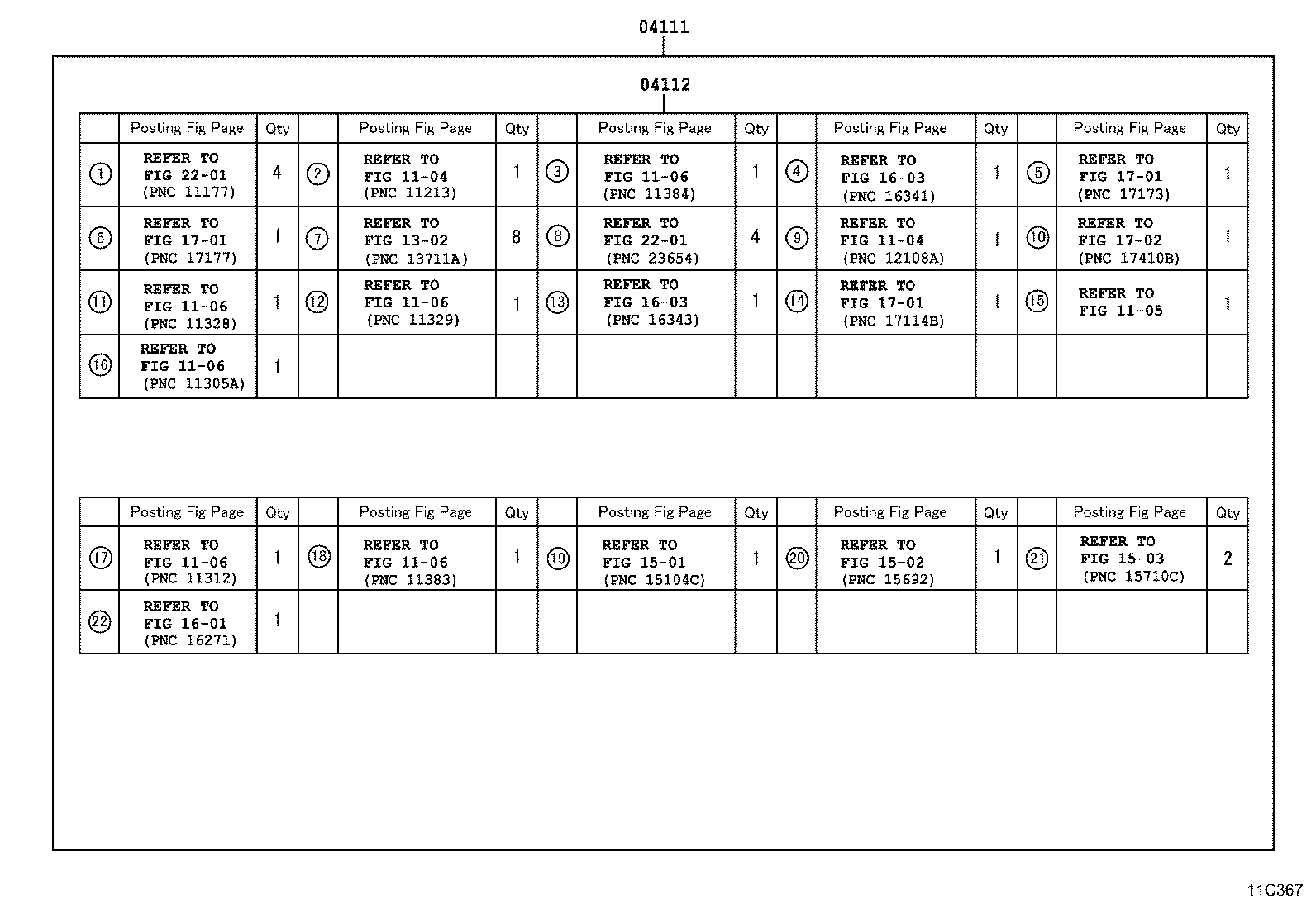

ILLUST NO. 1 OF 2(9912-0403)2L

Click highlighted areas on diagram

(J)

diagram 04111 04112
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-05040

2L..LF50

W(EGR)

 1
04111-54300

2L..LF50

(J)

 1
04111-54690

2L..LF50

W(EGR),(L)

 1
04111-05010

2L..LF50

(L)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-05040

2L..LF50

W(EGR)

 1
04112-05010

2L..LF50..GL

(L)

 1
04112-54590

2L..LF50

W(EGR),(L)

 1
04112-54240

2L..LF50

(J)

 1

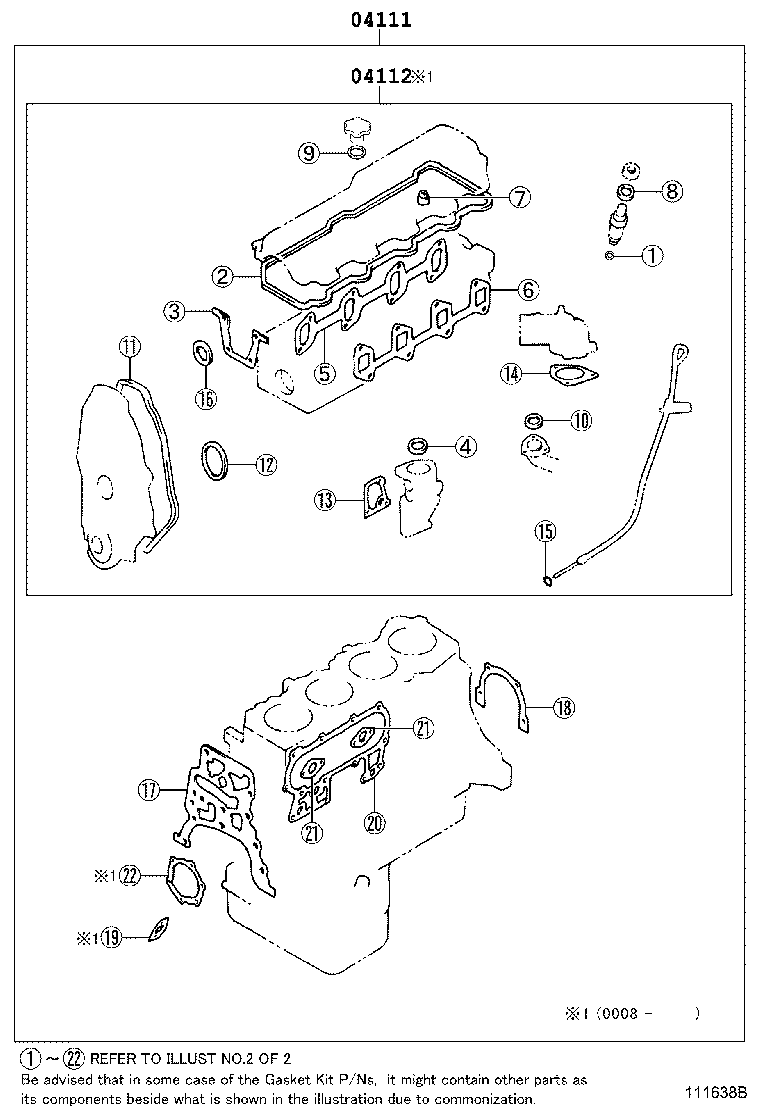

ILLUST NO. 2 OF 2(9912-0403)2L

Click highlighted areas on diagram

(J)

diagram 04111 04112 1104 1104 1105 1106 1106 1106 1106 1106 1106 1302 1501 1502 1503 1601 1603 1603 1701 1701 1701 1702 2201 2201
Part # Description Qty Price
04111 - GASKET KIT, ENGINE OVERHAUL
04111-54300

2L..LF50

(J)

 1
04111-54690

2L..LF50

W(EGR),(L)

 1
04111-05010

2L..LF50

(L)

 1
04111-05040

2L..LF50

W(EGR)

 1
04112 - GASKET KIT, ENGINE VALVE GRIND
04112-05040

2L..LF50

W(EGR)

 1
04112-05010

2L..LF50..GL

(L)

 1
04112-54590

2L..LF50

W(EGR),(L)

 1
04112-54240

2L..LF50

(J)

 1
Linked diagrams
1104
1105
1106
1302
1501
1502
1503
1601
1603
1701
1702
2201
