ZVW40R-AWXEBQ (2012)
Toyota Prius V
Production
Mar 2012
-
Apr 2015
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

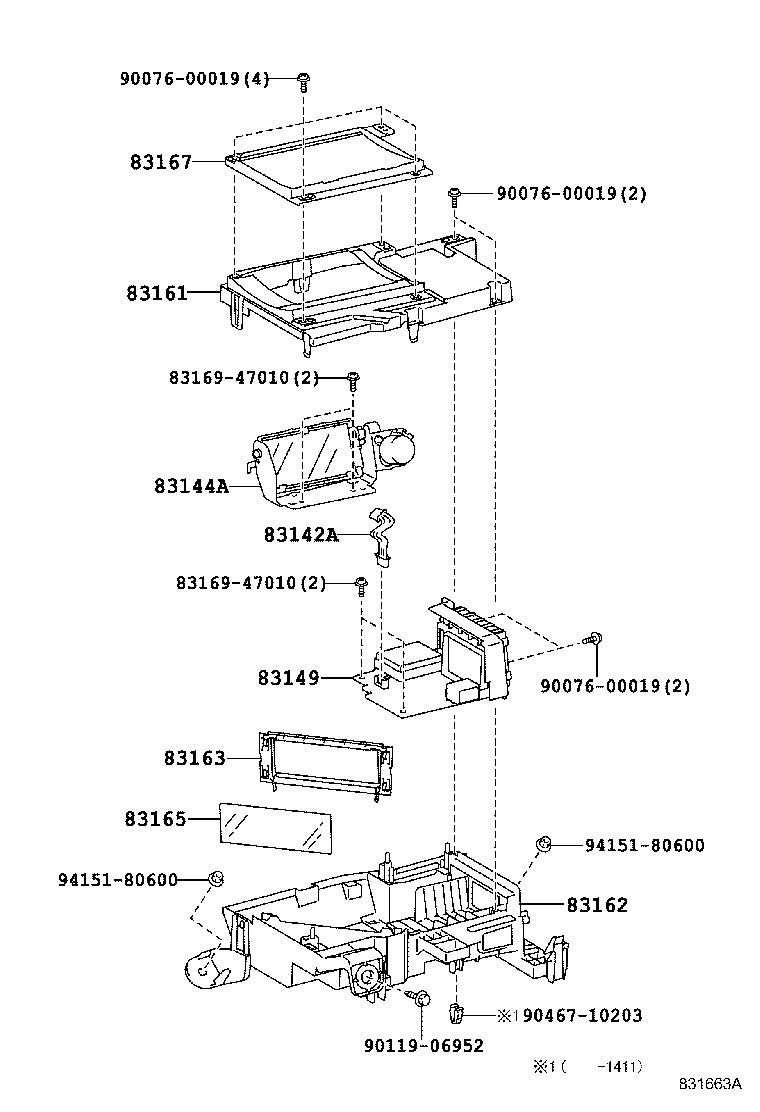

ILLUST NO. 2 OF 2(1203- )
HEAD UP DISPLAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83142A - WIRE, COMBINATION METER | ||||
| 83142-47030 |
ZVW40 |
1 | ||
| 83142-47030 |
ZVW40 |
1 | ||
| 83144A - MIRROR, COMBINATION METER | ||||
| 83144-47030 |
ZVW40 |
1 | ||
| 83144-47030 |
ZVW40 |
1 | ||
| 83149 - PLATE, METER CIRCUIT | ||||
| 83861-47030 |
ZVW40 |
1 | ||
| 83141-47050 |
ZVW40 |
1 | ||
| 83161 - CASE, COMBINATION METER MIRROR, NO.1 | ||||
| 83161-47030 |
ZVW40 |
1 | ||
| 83161-47030 |
ZVW40 |
1 | ||
| 83162 - CASE, COMBINATION METER MIRROR, NO.2 | ||||
| 83162-47030 |
ZVW40 |
1 | ||
| 83162-47030 |
ZVW40 |
1 | ||
| 83163 - PLATE, COMBINATION METER MIRROR, NO.1 | ||||
| 83163-47030 |
ZVW40 |
1 | ||
| 83163-47030 |
ZVW40 |
1 | ||
| 83165 - MIRROR, COMBINATION METER, NO.2 | ||||
| 83165-47030 |
ZVW40 |
1 | ||
| 83165-47030 |
ZVW40 |
1 | ||
| 83167 - GLASS, COMBINATION METER MIRROR | ||||
| 83167-47030 |
ZVW40 |
1 | ||
| 83167-47030 |
ZVW40 |
1 | ||
| Common parts | ||||
| 83169-47010 | None epc.PartDetail.None | |||
| 90076-00019 | None epc.PartDetail.None | |||
| 90119-06952 | None epc.PartDetail.None | |||
| 90467-10203 | None epc.PartDetail.None | |||
| 94151-80600 | None epc.PartDetail.None | |||

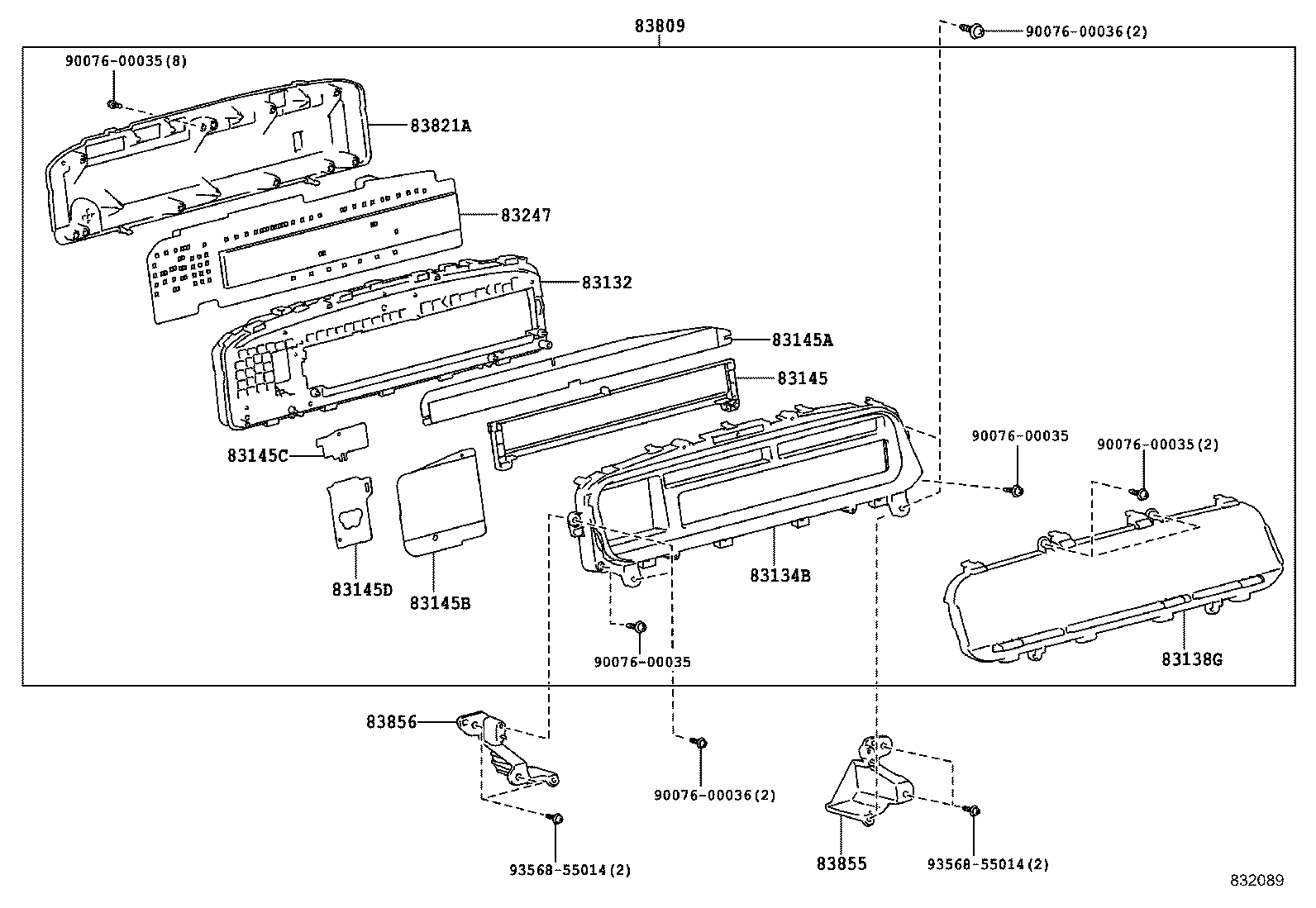

ILLUST NO. 1 OF 2(1504- )
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-47M50 |
ZVW40 |
1 | ||
| 83822-47580 |
ZVW40 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-47M50 |
ZVW40 |
1 | ||
| 83852-47580 |
ZVW40 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-47580 |
ZVW40 |
1 | ||
| 83831-47M50 |
ZVW40 |
1 | ||
| 83809 - METER SUB-ASSY, COMBINATION | ||||
| 83809-47080 |
ZVW40 |
1 | ||
| 83809-47081 |
ZVW40 |
1 | ||
| 83809-47173 |
ZVW40 YAZAKI |
1 | ||
| 83821A - COVER, COMBINATION METER, NO.1 | ||||
| 83821-47F60 |
ZVW40 |
1 | ||
| 83821-47850 |
ZVW40 |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-47580 |
ZVW40 |
1 | ||
| 83855-47580 |
ZVW40 |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-47580 |
ZVW40 |
1 | ||
| 83856-47580 |
ZVW40 |
1 | ||
| Common parts | ||||
| 90076-00035 | None epc.PartDetail.None | |||
| 90076-00036 | None epc.PartDetail.None | |||
| 93568-55014 | None epc.PartDetail.None | |||
ILLUST NO. 1 OF 2(1203-1504)
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83132 - CASE, COMBINATION METER | ||||
| 83841-47850 |
ZVW40 |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83822-47M50 |
ZVW40 |
1 | ||
| 83822-47580 |
ZVW40 |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83852-47M50 |
ZVW40 |
1 | ||
| 83852-47580 |
ZVW40 |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-47580 |
ZVW40 |
1 | ||
| 83831-47M50 |
ZVW40 |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-47580 |
ZVW40 |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83833-47A90 |
ZVW40 |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83834-47830 |
ZVW40 |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83835-47830 |
ZVW40 |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-47A90 |
ZVW40 |
1 | ||
| 83861-47A91 |
ZVW40 |
1 | ||
| 83809 - METER SUB-ASSY, COMBINATION | ||||
| 83809-47080 |
ZVW40 |
1 | ||
| 83809-47081 |
ZVW40 |
1 | ||
| 83809-47173 |
ZVW40 YAZAKI |
1 | ||
| 83821A - COVER, COMBINATION METER, NO.1 | ||||
| 83821-47F60 |
ZVW40 |
1 | ||
| 83821-47850 |
ZVW40 |
1 | ||
| 83855 - BRACKET, COMBINATION METER, NO.1 | ||||
| 83855-47580 |
ZVW40 |
1 | ||
| 83855-47580 |
ZVW40 |
1 | ||
| 83856 - BRACKET, COMBINATION METER, NO.2 | ||||
| 83856-47580 |
ZVW40 |
1 | ||
| 83856-47580 |
ZVW40 |
1 | ||
| Common parts | ||||
| 90076-00035 | None epc.PartDetail.None | |||
| 90076-00036 | None epc.PartDetail.None | |||
| 93568-55014 | None epc.PartDetail.None | |||
