ZVW40R-AWXEBQ (2012)
Toyota Prius V

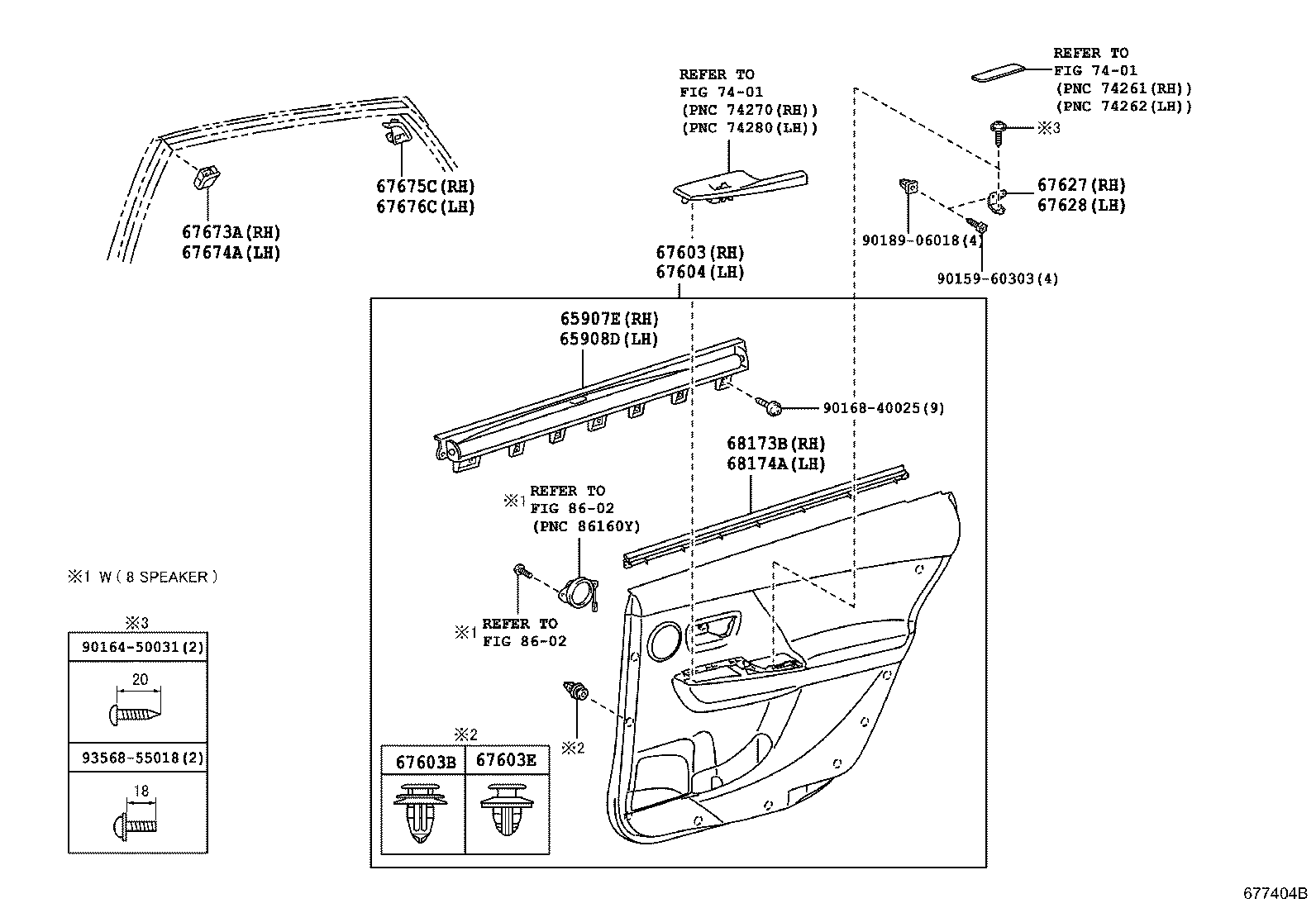

ILLUST NO. 2 OF 2(1203- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 65907-47010 |
ZVW40 |
1 | ||
| 65907-47010 |
ZVW40 |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 65908-47010 |
ZVW40 |
1 | ||
| 65908-47010 |
ZVW40 |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-47470G0 |
ZVW40 SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67630-47460B0 |
ZVW40 BLACK/GRAY,TRIM1# |
1 | ||
| 67630-47470G0 |
ZVW40 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67630-47480G0 |
ZVW40 SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67630-47470B0 |
ZVW40 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67630-47480B0 |
ZVW40 SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67630-47470B0 |
ZVW40 SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67630-47480C1 |
ZVW40 BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67630-47460G0 |
ZVW40 BLACK/AQUA,TRIM6# |
1 | ||
| 67630-47480B2 |
ZVW40 BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
ZVW40 |
16 | ||
| 90467-09206 |
ZVW40 |
16 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 67773-47010 |
ZVW40 |
2 | ||
| 67773-47010 |
ZVW40 |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-47480G0 |
ZVW40 SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67640-47480B0 |
ZVW40 SEAT COVER MATERIAL-FABRIC-HIGH GRADE&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67640-47480G0 |
ZVW40 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67640-47470G0 |
ZVW40 BLACK/AQUA,TRIM6# |
1 | ||
| 67640-47480B0 |
ZVW40 AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67640-47470B0 |
ZVW40 BLACK/GRAY,TRIM1# |
1 | ||
| 67640-47490C1 |
ZVW40 BLACK/BLACK/BLACK,TRIM2# |
1 | ||
| 67640-47490G0 |
ZVW40 SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/AQUA,TRIM6# |
1 | ||
| 67640-47490B2 |
ZVW40 BLACK/GRAY/GRAY,TRIM1# |
1 | ||
| 67640-47490B0 |
ZVW40 SEAT COVER MATERIAL-LEATHER&AUDIO-AVN & JBL & 8SPEAKER & BLUETOOTH,BLACK/GRAY,TRIM1# |
1 | ||
| 67627 - BRACKET, REAR DOOR TRIM, RH | ||||
| 67627-47020 |
ZVW40 |
1 | ||
| 67627-47020 |
ZVW40 |
1 | ||
| 67628 - BRACKET, REAR DOOR TRIM, LH | ||||
| 67628-47020 |
ZVW40 |
1 | ||
| 67628-47020 |
ZVW40 |
1 | ||
| 67673A - GARNISH, REAR DOOR FRAME, RH | ||||
| 67673-47010 |
ZVW40 |
1 | ||
| 67673-47010 |
ZVW40 |
1 | ||
| 67674A - GARNISH, REAR DOOR FRAME, LH | ||||
| 67674-47010 |
ZVW40 |
1 | ||
| 67674-47010 |
ZVW40 |
1 | ||
| 67675C - GARNISH, REAR DOOR FRAME, NO.2 RH | ||||
| 67675-47020 |
ZVW40 |
1 | ||
| 67675-47020 |
ZVW40 |
1 | ||
| 67676C - GARNISH, REAR DOOR FRAME, NO.2 LH | ||||
| 67676-47020 |
ZVW40 |
1 | ||
| 67676-47020 |
ZVW40 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-47050 |
ZVW40 |
1 | ||
| 68173-47050 |
ZVW40 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-47050 |
ZVW40 |
1 | ||
| 68174-47050 |
ZVW40 |
1 | ||
| Common parts | ||||
| 90159-60303 | None epc.PartDetail.None | |||
| 90164-50031 | None epc.PartDetail.None | |||
| 90168-40025 | None epc.PartDetail.None | |||
| 90189-06018 | None epc.PartDetail.None | |||
| 93568-55018 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7401 | ||||
| 8602 | ||||
ILLUST NO. 1 OF 2(1203- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-47180 |
ZVW40 |
1 | ||
| 67003-47180 |
ZVW40 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09138 |
ZVW40 |
4 | ||
| 90541-09138 |
ZVW40 |
4 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-47180 |
ZVW40 |
1 | ||
| 67004-47180 |
ZVW40 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-47040 |
ZVW40 |
1 | ||
| 67113-47040 |
ZVW40 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-47040 |
ZVW40 |
1 | ||
| 67114-47040 |
ZVW40 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-47040 |
ZVW40 |
1 | ||
| 67407-47040 |
ZVW40 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-47040 |
ZVW40 |
1 | ||
| 67408-47040 |
ZVW40 |
1 | ||
| 67487C - SEAL, REAR DOOR REAR GUIDE, RH | ||||
| 67487-47051 |
ZVW40 |
1 | ||
| 67487-47050 |
ZVW40 |
1 | ||
| 67488C - SEAL, REAR DOOR REAR GUIDE, LH | ||||
| 67488-47050 |
ZVW40 |
1 | ||
| 67488-47051 |
ZVW40 |
1 | ||
| 67837C - SEAL, REAR DOOR DUST PROOF | ||||
| 67837-48050 |
ZVW40 |
4 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-47110 |
ZVW40 |
1 | ||
| 67841-47070 |
ZVW40 |
1 | ||
| 67841-47110 |
ZVW40 |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-47060 |
ZVW40 |
1 | ||
| 67842-47090 |
ZVW40 |
1 | ||
| 67842-47090 |
ZVW40 |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ZVW40 |
19 | ||
| 67867-12150 |
ZVW40 |
19 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ZVW40 |
19 | ||
| 67867-12150 |
ZVW40 |
19 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-47040 |
ZVW40 |
1 | ||
| 67871-47040 |
ZVW40 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-47040 |
ZVW40 |
1 | ||
| 67872-47040 |
ZVW40 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-47090 |
ZVW40 |
1 | ||
| 68103-47090 |
ZVW40 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-47090 |
ZVW40 |
1 | ||
| 68104-47090 |
ZVW40 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-47041 |
ZVW40 |
1 | ||
| 68142-47040 |
ZVW40 |
1 | ||
| 68142-47042 |
ZVW40 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-47041 |
ZVW40 |
1 | ||
| 68152-47042 |
ZVW40 |
1 | ||
| 68152-47040 |
ZVW40 |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-47040 |
ZVW40 |
1 | ||
| 68630-47040 |
ZVW40 |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68630-47040 |
ZVW40 |
1 | ||
| 68630-47040 |
ZVW40 |
1 | ||
| 75923 - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-47030 |
ZVW40 |
1 | ||
| 75923-47030 |
ZVW40 |
1 | ||
| 75924 - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-47030 |
ZVW40 |
1 | ||
| 75924-47030 |
ZVW40 |
1 | ||
| 75937A - TAPE, BLACK OUT, INNER UPPER RH | ||||
| 75987-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75987-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75938 - TAPE, BLACK OUT, INNER UPPER LH | ||||
| 75988-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75988-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75951C - TAPE, BLACK OUT, INNER FRONT RH | ||||
| 75977-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75977-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75952A - TAPE, BLACK OUT, INNER FRONT LH | ||||
| 75978-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75978-47050 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75953A - TAPE, BLACK OUT, INNER REAR RH | ||||
| 75979-47060 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75979-47060 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75954A - TAPE, BLACK OUT, INNER REAR LH | ||||
| 75989-47060 |
ZVW40 REFER TO ILLUST. |
1 | ||
| 75989-47060 |
ZVW40 REFER TO ILLUST. |
1 | ||
| Common parts | ||||
| 90109-08295 | None epc.PartDetail.None | |||
| 90119-06983 | None epc.PartDetail.None | |||
| 90161-40020 | None epc.PartDetail.None | |||
| 90167-50022 | None epc.PartDetail.None | |||
| 90950-01841 | None epc.PartDetail.None | |||
| 94151-80600 | None epc.PartDetail.None | |||
| Linked diagrams | ||||
| 7503 | ||||
