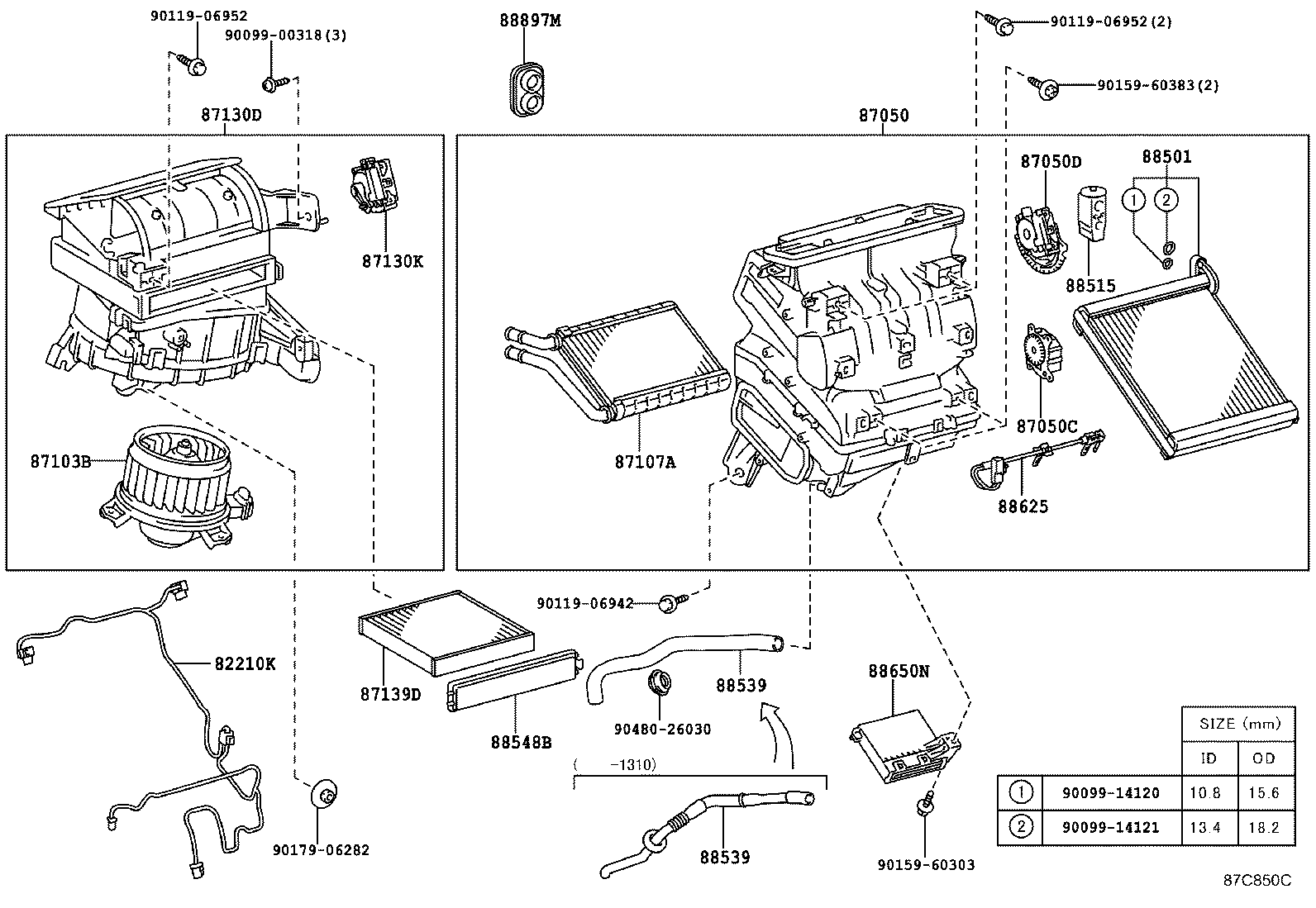

Toyota Prius v ZVW40 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
82210K - HARNESS ASSY, AIR CONDITIONER
82212-12020	ZVW40	03/2012 - 04/2015	1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-47120	ZVW40	03/2012 - 04/2015	1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-47170	ZVW40	11/2014 - 04/2015	1
87106-12170	ZVW40	03/2012 - 10/2014	1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-42100	ZVW40	03/2012 - 04/2015	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-12060	ZVW40	03/2012 - 04/2015	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-42170	ZVW40	03/2012 - 04/2015	1
87130D - BLOWER ASSY
87130-47100	ZVW40	03/2012 - 04/2015	1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-42120	ZVW40	03/2012 - 04/2015	1
87139D - ELEMENT, AIR REFINER
87139-52040	ZVW40 POLLEN FILTER	10/2012 - 04/2015	1
87139-30040	ZVW40 MICRO DUST FILTER	03/2012 - 09/2012	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-47051	ZVW40	03/2012 - 04/2015	1
88515 - VALVE, COOLER EXPANSION
88515-47040	ZVW40	03/2012 - 04/2015	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12190	ZVW40	03/2012 - 10/2013	1
88539-12210	ZVW40	10/2013 - 04/2015	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-12190	ZVW40	03/2012 - 10/2013	1
88539-12210	ZVW40	10/2013 - 04/2015	1
88548B - CASE, AIR FILTER
88548-42010	ZVW40	03/2012 - 04/2015	1
88625 - THERMISTOR, COOLER, NO.1
88625-71010	ZVW40	03/2012 - 04/2015	1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-47410	ZVW40	08/2013 - 04/2015	1
88650-47410	ZVW40	07/2012 - 07/2013	1
88650-47240	ZVW40	03/2012 - 07/2012	1
88897M - GROMMET (FOR HEATER PIPE)
87128-42010	ZVW40	03/2012 - 04/2015	1
Common parts
90099-00318
90099-14120
90099-14121
90119-06942
90119-06952
90159-60303
90159-60383
90179-06282
90480-26030

ZVW40R-AWXEBQ (2012)

(1203- )
