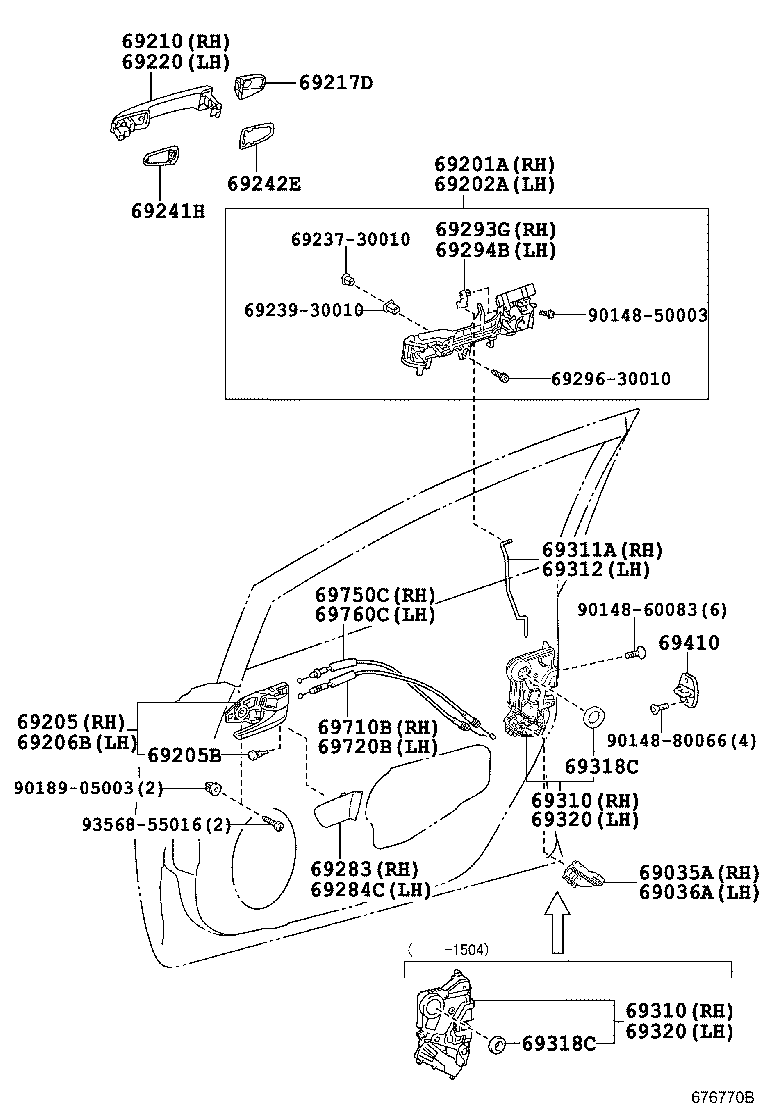

Toyota Prius v ZVW40 FRONT DOOR LOCK & HANDLE

Part #	Description	Period	Qty
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-30071	ZVW40	03/2012 - 04/2015	1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-30061	ZVW40	03/2012 - 04/2015	1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-47050C0	ZVW40 BLACK,TRIM1#	03/2012 - 04/2015	1
69205-47050G0	ZVW40 AQUA,TRIM6#	03/2012 - 04/2015	1
69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE)
90541-04027	ZVW40	03/2012 - 04/2015	2
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-47050C0	ZVW40 BLACK,TRIM1#	03/2012 - 04/2015	1
69206-47050G0	ZVW40 AQUA,TRIM6#	03/2012 - 04/2015	1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-74030B0	ZVW40 SILVER ME.,1F7	03/2012 - 04/2015	1
69210-74030A1	ZVW40 SUPER WHITE 2,040	03/2012 - 04/2015	1
69210-74030J1	ZVW40 DK.BLUE MC.,8T5	03/2012 - 04/2015	1
69210-74030B3	ZVW40 GRAY ME.,1G3	03/2012 - 04/2015	1
69210-74030A0	ZVW40 WHITE PEARL CS.,070	03/2012 - 04/2015	1
69210-74030D0	ZVW40 RED M.M.,3R3	03/2012 - 04/2015	1
69210-74030C0	ZVW40 BLACK,202	03/2012 - 04/2015	1
69217D - COVER, FRONT DOOR OUTSIDE HANDLE
69217-74010A1	ZVW40 SUPER WHITE 2,040,DRIVER SIDE	03/2012 - 04/2015	1
69217-74010B0	ZVW40 SILVER ME.,1F7,DRIVER SIDE	03/2012 - 04/2015	1
69217-74010J1	ZVW40 DK.BLUE MC.,8T5,DRIVER SIDE	03/2012 - 04/2015	1
69217-74010B4	ZVW40 GRAY ME.,1G3,DRIVER SIDE	03/2012 - 04/2015	1
69250-74010A1	ZVW40 WHITE PEARL CS.,070,PASSENGER SIDE	03/2012 - 04/2015	1
69250-74010A0	ZVW40 SUPER WHITE 2,040,PASSENGER SIDE	03/2012 - 04/2015	1
69217-74010C0	ZVW40 BLACK,202,DRIVER SIDE	03/2012 - 04/2015	1
69217-74010A0	ZVW40 WHITE PEARL CS.,070,DRIVER SIDE	03/2012 - 04/2015	1
69250-74010C0	ZVW40 BLACK,202,PASSENGER SIDE	03/2012 - 04/2015	1
69250-74010J0	ZVW40 DK.BLUE MC.,8T5,PASSENGER SIDE	03/2012 - 04/2015	1
69250-74010B0	ZVW40 SILVER ME.,1F7,PASSENGER SIDE	03/2012 - 04/2015	1
69250-74010B4	ZVW40 GRAY ME.,1G3,PASSENGER SIDE	03/2012 - 04/2015	1
69250-74010D0	ZVW40 RED M.M.,3R3,PASSENGER SIDE	03/2012 - 04/2015	1
69217-74010D0	ZVW40 RED M.M.,3R3,DRIVER SIDE	03/2012 - 04/2015	1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69210-74030A1	ZVW40 SUPER WHITE 2,040	03/2012 - 04/2015	1
69210-74030B0	ZVW40 SILVER ME.,1F7	03/2012 - 04/2015	1
69210-74030D0	ZVW40 RED M.M.,3R3	03/2012 - 04/2015	1
69210-74030J1	ZVW40 DK.BLUE MC.,8T5	03/2012 - 04/2015	1
69210-74030A0	ZVW40 WHITE PEARL CS.,070	03/2012 - 04/2015	1
69210-74030C0	ZVW40 BLACK,202	03/2012 - 04/2015	1
69210-74030B3	ZVW40 GRAY ME.,1G3	03/2012 - 04/2015	1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-30111	ZVW40	03/2012 - 04/2015	2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-47020	ZVW40	03/2012 - 04/2015	2
69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
69283-47010B2	ZVW40 DK.GRAY,TRIM1#	03/2012 - 04/2015	1
69283-47010G0	ZVW40 AQUA,TRIM6#	03/2012 - 04/2015	1
69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
69284-47010B2	ZVW40 DK.GRAY,TRIM1#	03/2012 - 04/2015	1
69284-47010G0	ZVW40 AQUA,TRIM6#	03/2012 - 04/2015	1
69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293-12030	ZVW40	03/2012 - 04/2015	1
69294B - SNAP, FRONT DOOR OUTSIDE HANDLE, LH
69293-12040	ZVW40	03/2012 - 04/2015	1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-42210	ZVW40	03/2012 - 04/2015	1
69310 - LOCK ASSY, FRONT DOOR, RH
69030-42210	ZVW40	03/2012 - 04/2015	1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-47050	ZVW40	03/2012 - 04/2015	1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-47050	ZVW40	03/2012 - 04/2015	1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	ZVW40	03/2012 - 04/2015	2
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010	ZVW40	03/2012 - 04/2015	2
69320 - LOCK ASSY, FRONT DOOR, LH
69040-42230	ZVW40	03/2012 - 04/2015	1
69320 - LOCK ASSY, FRONT DOOR, LH
69040-42230	ZVW40	03/2012 - 04/2015	1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010	ZVW40	03/2012 - 04/2015	2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-47040	ZVW40	03/2012 - 04/2015	1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-47040	ZVW40	03/2012 - 04/2015	1
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-47050	ZVW40	03/2012 - 04/2015	1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69750-47050	ZVW40	03/2012 - 04/2015	1
Common parts
69237-30010
69239-30010
69296-30010
90148-50003
90148-60083
90148-80066
90189-05003
93568-55016

ZVW40R-AWXEBQ (2012)

(1203- )
