ZVW40R-AWXEBQ (2012)

Toyota Prius V

Production Mar 2012 - Apr 2015
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )

Click highlighted areas on diagram

STANDARD ROOF

diagram 61247F 61248F 63102A 63103A 63104E 63105A 63106 63111 63127 63141G 63143B 9011908C89 9011908C89
Part # Description Qty Price
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
61247-47040

ZVW40

 1
61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH
61247-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
61247-47040

ZVW40

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-47060

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63102-47901

ZVW40

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-47020

ZVW40

 1
63103-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63104-47020

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63104-47010

ZVW40

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-47030

ZVW40

 1
63106 - REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63106-47010

ZVW40

 1
63111 - PANEL, ROOF
63111-47050

ZVW40

REFER TO ILLUST.

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63127-47020

ZVW40

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63123-47010

ZVW40

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-47040

ZVW40

 1
Common parts
90119-08C89

(1203- )

Click highlighted areas on diagram

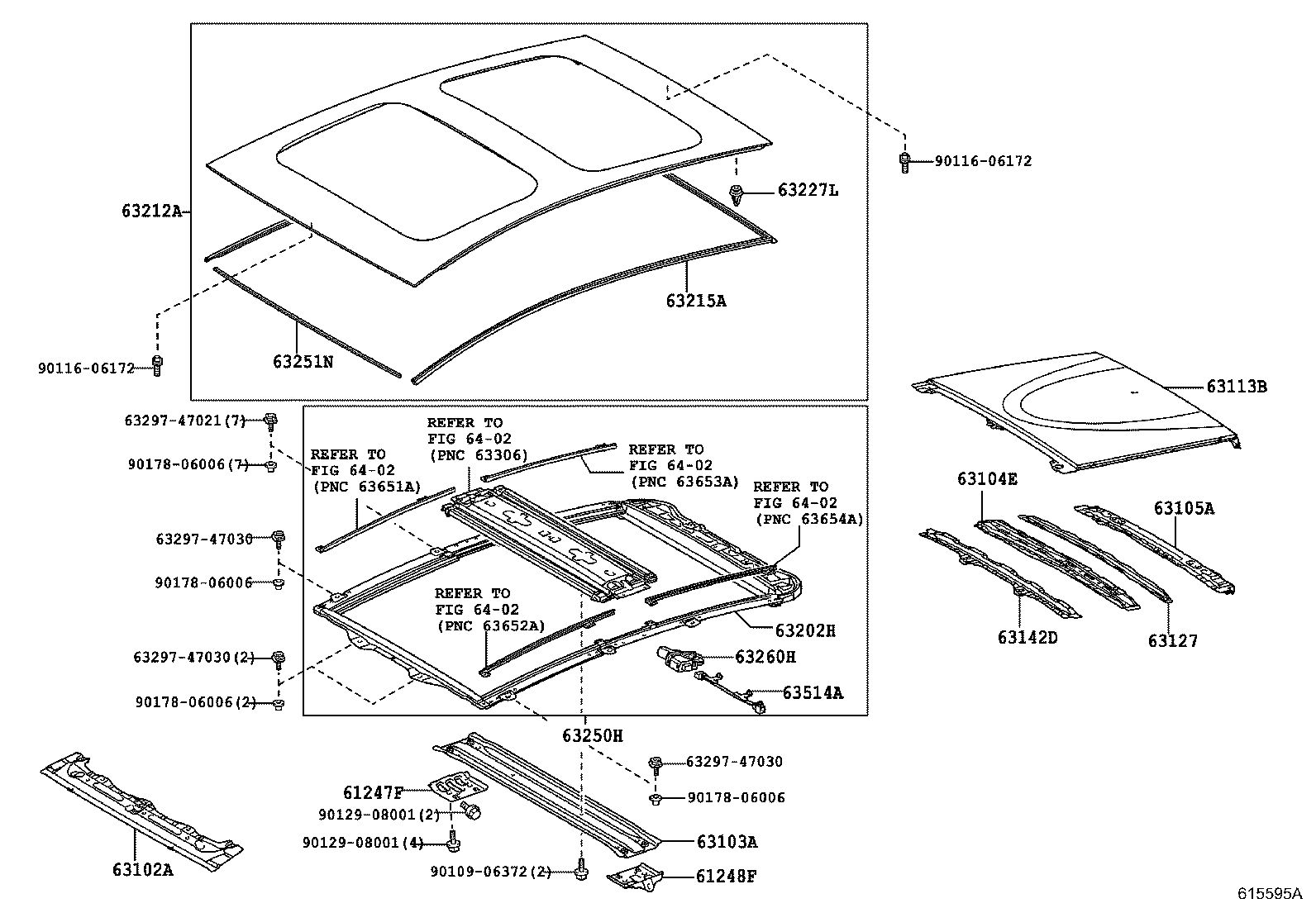

PANORAMIC ROOF

diagram 61247F 61248F 63102A 63103A 63104E 63105A 63113B 63127 63142D 63202H 63212A 63215A 63227L 63250H 63251N 63260H 6329747021 6329747030 6329747030 6329747030 63514A 6402 6402 6402 6402 6402 9010906372 9011606172 9011606172 9012908001 9012908001 9017806006 9017806006 9017806006 9017806006
Part # Description Qty Price
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
61247-47040

ZVW40

 1
61248F - REINFORCEMENT, ROOF SIDE RAIL, INNER, LH
61247-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
61247-47040

ZVW40

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-47060

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63102-47901

ZVW40

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-47020

ZVW40

 1
63103-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63104E - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63104-47020

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63104-47010

ZVW40

 1
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-47030

ZVW40

 1
63113B - PANEL, ROOF, REAR
63113-47010

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63127 - REINFORCEMENT, ROOF PANEL, NO.5
63127-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63127-47020

ZVW40

 1
63142D - REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63142-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63202H - RAIL SUB-ASSY, SLIDE ROOF
63202-47030

ZVW40

 1
63202-47030

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63202-47030

ZVW40

ROOF-NORMAL ROOF

 1
63212A - GLASS, ROOF WINDOW
63201-47040

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63215A - MOULDING, ROOF WINDOW, UPPER
75557-47010

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63227L - CLIP, ROOF WINDOW
63228-47010

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 4
63250H - HOUSING ASSY, SUNSHADE
63250-47022B1

ZVW40

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,6#

 1
63250-47022B1

ZVW40

ROOF-NORMAL ROOF,LT.GRAY,TRIM1#,6#

 1
63250-47023B1

ZVW40

ROOF-PANORAMIC ROOF(FIXED),LT.GRAY,TRIM1#,6#

 1
63250-47022B1

ZVW40

LT.GRAY,TRIM1#,6#

 1
63251N - DAM, ROOF WINDOW GLASS ADHESIVE, NO.1
56117-50140

ZVW40

*D,L=1061,ROOF-PANORAMIC ROOF(FIXED)

 1
63260H - GEAR ASSY, SLIDING ROOF DRIVE
63260-47020

ZVW40

 1
63260-47020

ZVW40

ROOF-NORMAL ROOF

 1
63260-47020

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63514A - WIRE, CONNECTOR
63514-47010

ZVW40

ROOF-PANORAMIC ROOF(FIXED)

 1
63514-47010

ZVW40

 1
63514-47010

ZVW40

ROOF-NORMAL ROOF

 1
Common parts
63297-47021
63297-47030
90109-06372
90116-06172
90129-08001
90178-06006
Linked diagrams
6402
