ZVW40R-AWXEBQ (2012)
Toyota Prius V
Production
Mar 2012
-
Apr 2015
Engine
2ZRFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1203- )

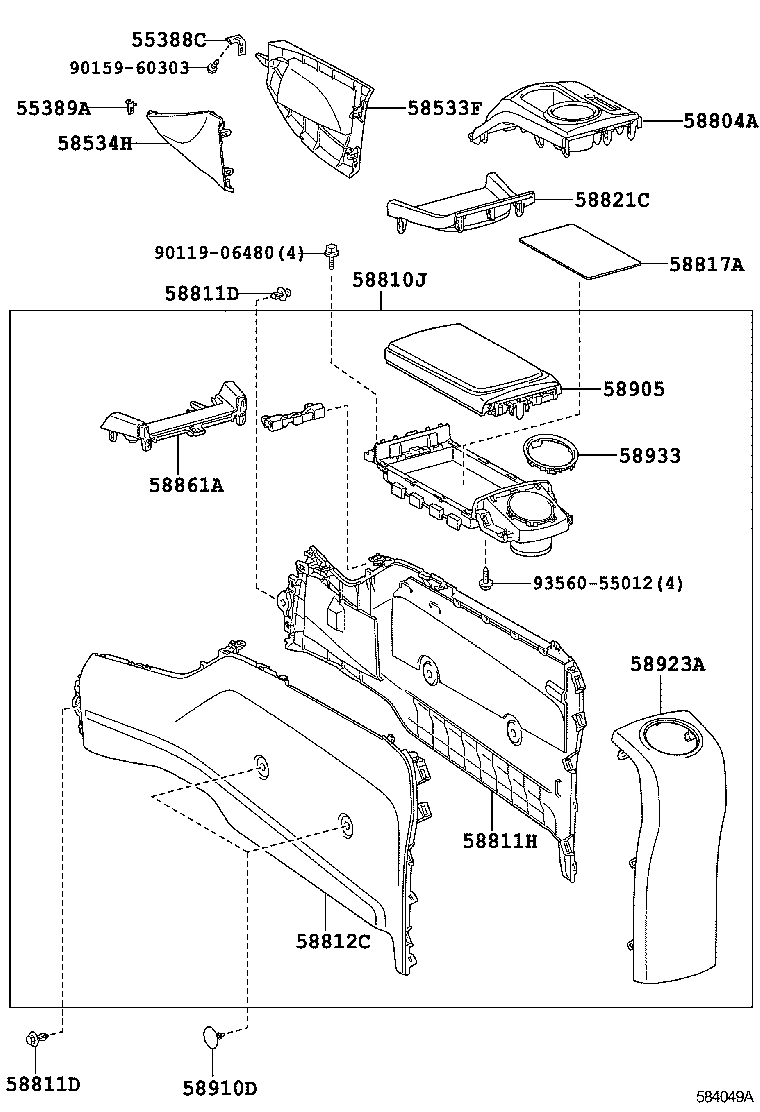

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55388C - BRACKET, CONSOLE MOUNTING, RH | ||||
| 55389-42020 |
ZVW40 |
1 | ||
| 55389A - BRACKET, CONSOLE MOUNTING, LH | ||||
| 55388-42020 |
ZVW40 |
1 | ||
| 58533F - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-47010G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58533-47010B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58534H - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-47010B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58534-47010G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-47020B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58804-47020G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-47030G0 |
ZVW40 AQUA/GRAY,TRIM6# |
1 | ||
| 58810-47030B0 |
ZVW40 GRAY,TRIM1# |
1 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07164 |
ZVW40 |
2 | ||
| 58811D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07164 |
ZVW40 |
2 | ||
| 58811H - BOX, CONSOLE, RH | ||||
| 58811-47030B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58811-47030G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58812C - BOX, CONSOLE, LH | ||||
| 58812-47030B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58812-47030G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58817A - INSERT, CONSOLE BOX, FRONT NO.2 | ||||
| 58817-47030C0 |
ZVW40 BLACK,TRIM1#,6# |
1 | ||
| 58821C - PANEL, CONSOLE, UPPER | ||||
| 58821-47030G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58821-47030B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58861A - SUPPORT, CONSOLE BOX, NO.1 | ||||
| 58861-47020B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58861-47020G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-47081G0 |
ZVW40 AQUA/GRAY,TRIM6# |
1 | ||
| 58905-47081B2 |
ZVW40 MD.GRAY/GRAY,TRIM1# |
1 | ||
| 58910D - CLIP(FOR CONSOLE BOX) | ||||
| 90467-07212G0 |
ZVW40 AQUA,TRIM6# |
4 | ||
| 90467-07212B0 |
ZVW40 MD.GRAY,TRIM1# |
4 | ||
| 58923A - PANEL, CONSOLE REAR END | ||||
| 58923-47060B0 |
ZVW40 MD.GRAY,TRIM1# |
1 | ||
| 58923-47060G0 |
ZVW40 AQUA,TRIM6# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-47010 |
ZVW40 |
1 | ||
| Common parts | ||||
| 90119-06480 | ||||
| 90159-60303 | ||||
| 93560-55012 | ||||
