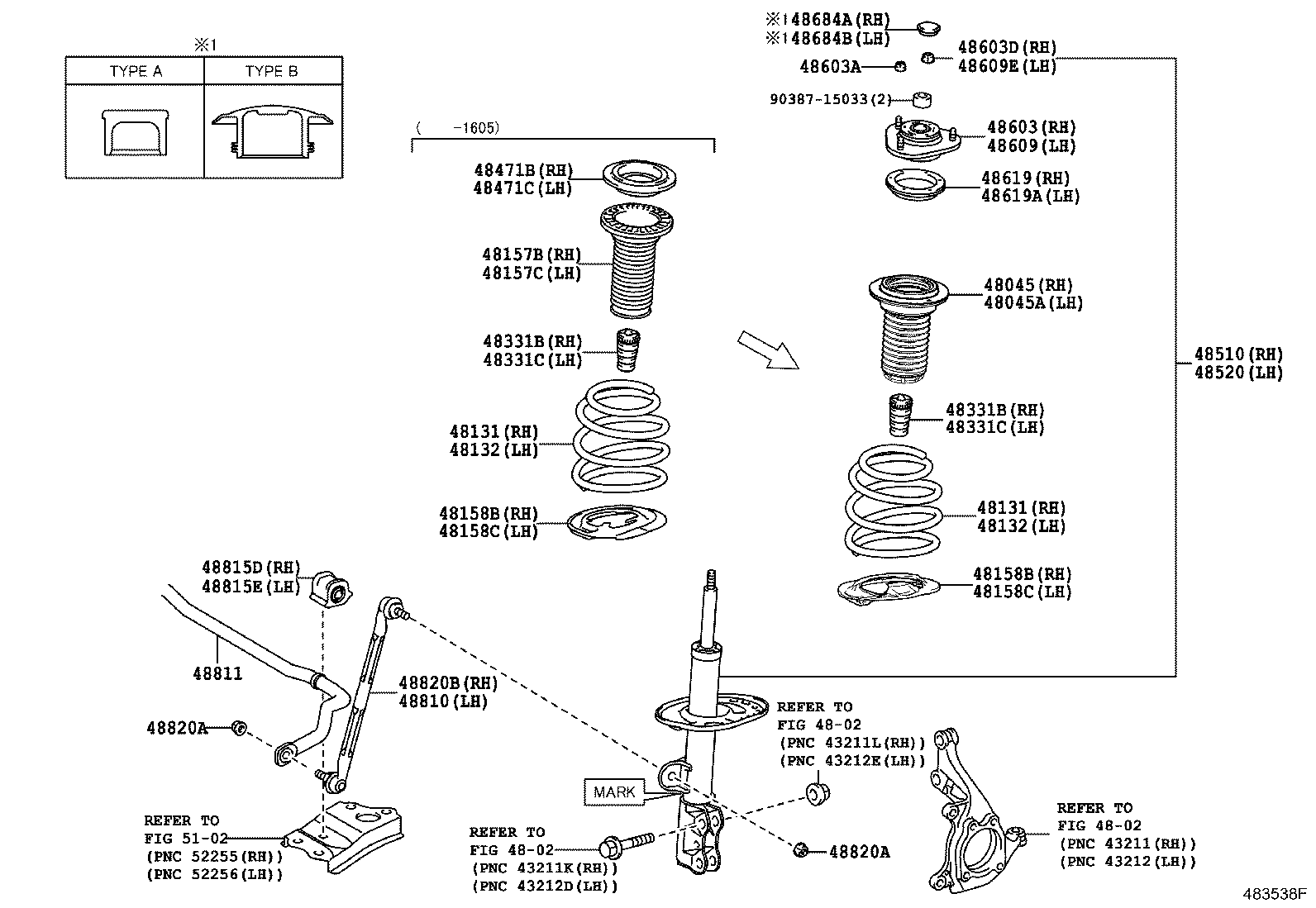

Toyota Prius v ZVW40 FRONT SPRING & SHOCK ABSORBER

Part #	Description	Period	Qty
48131 - SPRING, FRONT COIL, RH
48131-47300	ZVW40	03/2012 - 04/2015	1
48131 - SPRING, FRONT COIL, RH
48131-47300	ZVW40	03/2012 - 04/2015	1
48132 - SPRING, FRONT COIL, LH
48131-47300	ZVW40	03/2012 - 04/2015	1
48132 - SPRING, FRONT COIL, LH
48131-47300	ZVW40	03/2012 - 04/2015	1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-47020	ZVW40	03/2012 - 04/2015	1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-47020	ZVW40	03/2012 - 04/2015	1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-42010	ZVW40	03/2012 - 04/2015	1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-42010	ZVW40	03/2012 - 04/2015	1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-42010	ZVW40	03/2012 - 04/2015	1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-42010	ZVW40	03/2012 - 04/2015	1
48331B - BUMPER, FRONT SPRING, RH
48331-21030	ZVW40	03/2012 - 04/2015	1
48331B - BUMPER, FRONT SPRING, RH
48331-21030	ZVW40	03/2012 - 04/2015	1
48331C - BUMPER, FRONT SPRING, LH
48331-21030	ZVW40	03/2012 - 04/2015	1
48331C - BUMPER, FRONT SPRING, LH
48331-21030	ZVW40	03/2012 - 04/2015	1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48471-42010	ZVW40	03/2012 - 04/2015	1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48471-42010	ZVW40	03/2012 - 04/2015	1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80665	ZVW40 MARK 48510-47281	09/2013 - 04/2015	1
48510-80549	ZVW40 MARK 48510-47280	03/2012 - 09/2013	1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80366	ZVW40 MARK 48520-47281	09/2013 - 04/2015	1
48520-80271	ZVW40 MARK 48520-47280	03/2012 - 09/2013	1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-47040	ZVW40	03/2012 - 04/2015	1
48603A - NUT(FOR FRONT SUSPENSION SUPPORT)
90178-10030	ZVW40	03/2012 - 04/2015	6
48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
90177-14005	ZVW40	03/2012 - 04/2015	1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-47040	ZVW40	03/2012 - 04/2015	1
48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
90177-14005	ZVW40	03/2012 - 04/2015	1
48619 - BEARING, STRUT MOUNTING, RH
48619-28010	ZVW40	03/2012 - 04/2015	1
48619A - BEARING, STRUT MOUNTING, LH
48619-28010	ZVW40	03/2012 - 04/2015	1
48684A - COVER, FRONT SUSPENSION SUPPORT DUST, RH
48684-42020	ZVW40 TYPE B:REFER ILLUST.	03/2012 - 04/2015	1
48684-42010	ZVW40 TYPE A:REFER ILLUST.	03/2012 - 04/2015	1
48684B - COVER, FRONT SUSPENSION SUPPORT DUST, LH
48684-42010	ZVW40 TYPE A:REFER ILLUST.	03/2012 - 04/2015	1
48684-42020	ZVW40 TYPE B:REFER ILLUST.	03/2012 - 04/2015	1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-47030	ZVW40	03/2012 - 04/2015	1
48811 - BAR, STABILIZER, FRONT
48811-12A40	ZVW40	03/2012 - 04/2015	1
48815D - BUSH, FRONT STABILIZER BAR, RH
48815-64010	ZVW40	03/2012 - 04/2015	1
48815E - BUSH, FRONT STABILIZER BAR, LH
48815-64020	ZVW40	03/2012 - 04/2015	1
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151	ZVW40	03/2012 - 04/2015	4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151	ZVW40	03/2012 - 04/2015	4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-47030	ZVW40	03/2012 - 04/2015	1
Common parts
90387-15033
Linked diagrams
4802
5102

ZVW40R-AWXEBQ (2012)

(1203- )
