Toyota Prius v ZVW40 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-09435	2ZRFXE..ZVW40 (L)	03/2012 - 04/2015	1
11101-39725	2ZRFXE..ZVW40 (J)	03/2012 - 04/2015	1
11101E - SENSOR, CAM POSITION
90919-05060	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL
15330-37010	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11103 - HOUSING SUB-ASSY, CAMSHAFT
11103-37032	2ZRFXE..ZVW40 (J)	02/2015 - 04/2015	1
11103-37031	2ZRFXE..ZVW40 (J)	03/2012 - 02/2015	1
11103-0T051	2ZRFXE..ZVW40 (L)	03/2012 - 02/2015	1
11103-0T052	2ZRFXE..ZVW40 (L)	02/2015 - 04/2015	1
11114A - PIN, STRAIGHT
90250-06003	2ZRFXE..ZVW40 L=14,OD=6	03/2012 - 04/2015	2
11115 - GASKET, CYLINDER HEAD
11115-37060	2ZRFXE..ZVW40	03/2012 - 06/2014	1
11115-37061	2ZRFXE..ZVW40	07/2014 - 04/2015	1
11117B - PLUG, W/HEAD TAPER SCREW, NO.2
90341-20002	2ZRFXE..ZVW40	03/2012 - 04/2015	3
11117H - GASKET(FOR WATER HOLE)
90430-20004	2ZRFXE..ZVW40	03/2012 - 04/2015	3
11122 - BUSH, INTAKE VALVE GUIDE
11122-31050	2ZRFXE..ZVW40 STD	03/2012 - 04/2015	8
11123-31050	2ZRFXE..ZVW40 O/S 0.05	03/2012 - 04/2015	8
11126 - BUSH, EXHAUST VALVE GUIDE
11127-31030	2ZRFXE..ZVW40 O/S 0.05	03/2012 - 04/2015	8
11126-31030	2ZRFXE..ZVW40 STD	03/2012 - 04/2015	8
11131 - SEAT, INTAKE VALVE
11132-37040	2ZRFXE..ZVW40 O/S 0.03	11/2012 - 04/2015	8
11131-37020	2ZRFXE..ZVW40 STD	03/2012 - 04/2015	8
11132-37020	2ZRFXE..ZVW40 O/S 0.03	03/2012 - 11/2012	8
11135 - SEAT, EXHAUST VALVE
11135-37020	2ZRFXE..ZVW40 STD	03/2012 - 04/2015	8
11136-37020	2ZRFXE..ZVW40 O/S 0.03	03/2012 - 11/2012	8
11136-37040	2ZRFXE..ZVW40 O/S 0.03	11/2012 - 04/2015	8
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-13005	2ZRFXE..ZVW40 L=12.5,OD=8	03/2012 - 04/2015	10
11155A - PIN, RING W/HEAD
90253-12002	2ZRFXE..ZVW40	03/2012 - 04/2015	2
11159H - GASKET, CAMSHAFT BEARING CAP OIL HOLE
11159-37010	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11193 - GASKET, SPARK PLUG TUBE
11193-37020	2ZRFXE..ZVW40	03/2012 - 04/2015	4
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-37040	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER)
90210-06013	2ZRFXE..ZVW40 TYPE A:REFER ILLUST.	03/2012 - 04/2015	1
16258-37010	2ZRFXE..ZVW40 TYPE B:REFER ILLUST.	03/2012 - 07/2014	1
11201H - BOLT(FOR CYLINDER HEAD COVER)
91551-80670	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11212 - COVER, CYLINDER HEAD, NO.2
11212-37090	2ZRFXE..ZVW40	03/2012 - 04/2015	1
11212A - CUSHION, CYLINDER HEAD COVER
90480-16049	2ZRFXE..ZVW40	03/2012 - 12/2013	3
90480-07008	2ZRFXE..ZVW40	01/2014 - 04/2015	3
11213 - GASKET, CYLINDER HEAD COVER
11213-37040	2ZRFXE..ZVW40	03/2012 - 03/2015	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-38010	2ZRFXE..ZVW40	03/2012 - 04/2015	1
12108A - GASKET(FOR OIL FILLER CAP)
90430-35001	2ZRFXE..ZVW40	03/2012 - 04/2015	1
12281A - HANGER, ENGINE, NO.1
12281-37050	2ZRFXE..ZVW40 W(PAINTED)	03/2012 - 04/2015	1
12281-37021	2ZRFXE..ZVW40 W/O(PAINTED)	03/2012 - 06/2012	1
12281-37021	2ZRFXE..ZVW40 W/O(PAINTED)	06/2012 - 04/2015	1
12282D - HANGER, ENGINE, NO.2
12282-37011	2ZRFXE..ZVW40 W/O(PAINTED)	03/2012 - 04/2015	1
12282-37040	2ZRFXE..ZVW40 W(PAINTED)	03/2012 - 04/2015	1
15678A - FILTER, OIL CONTROL VALVE
15678-37010	2ZRFXE..ZVW40	03/2012 - 04/2015	1
Common parts
90099-14137
90109-06385
90430-10024
91551-80616
91551-80625
91552-81050
91671-80616
96721-24015
Linked diagrams
1709

ZVW40R-AWXEBQ (2012)

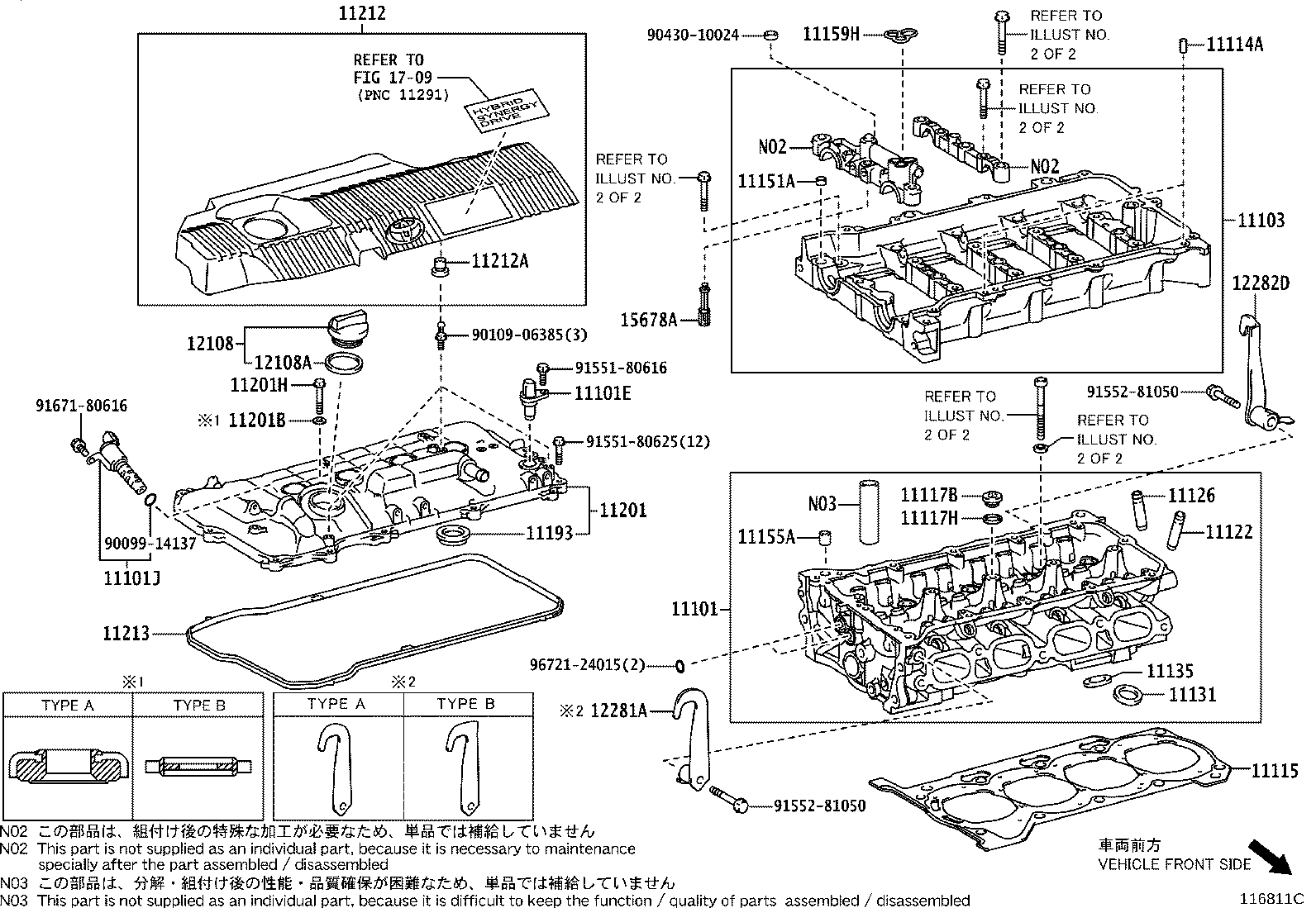

ILLUST NO. 1 OF 2(1203- )

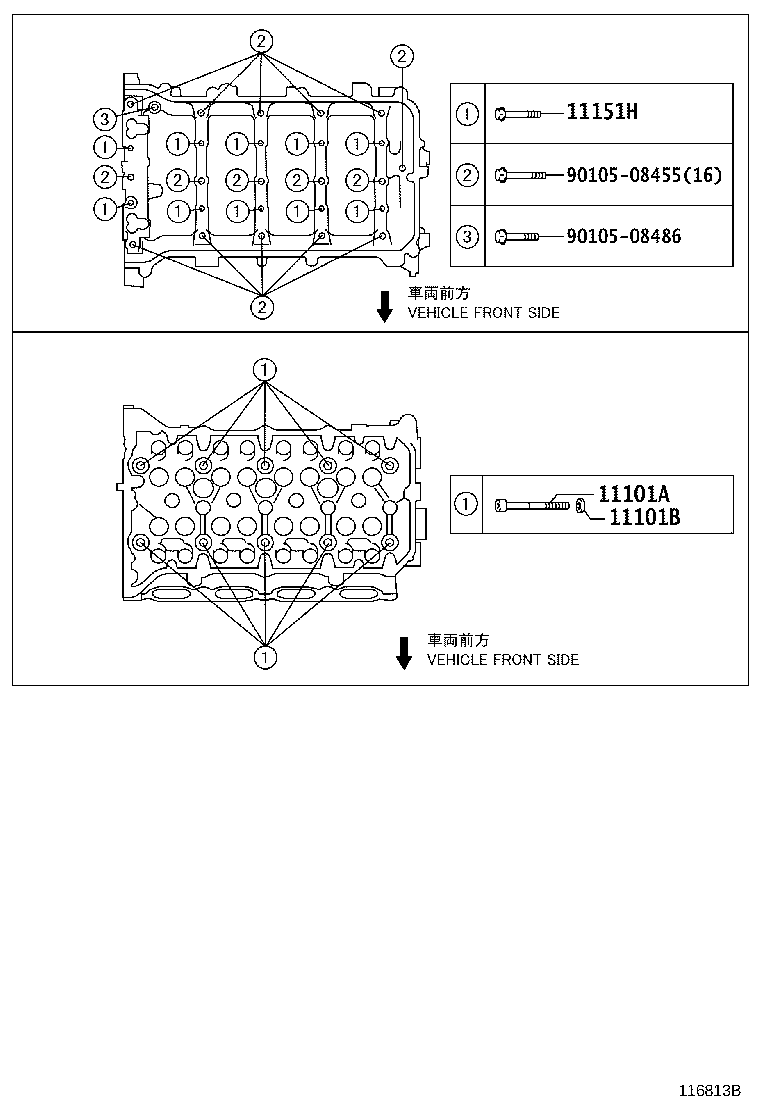

ILLUST NO. 2 OF 2(1203- )

Part Price Details

Part #	Description	Period	Qty
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02166	2ZRFXE..ZVW40	03/2012 - 04/2015	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-10344	2ZRFXE..ZVW40	03/2012 - 04/2015	10
11151H - BOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
90119-07009	2ZRFXE..ZVW40	03/2012 - 04/2015	10
Common parts
90105-08455
90105-08486
