NHP10R-AHXVBQ (2017)

Toyota Prius C

Production Jun 2017 - Sep 9999
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

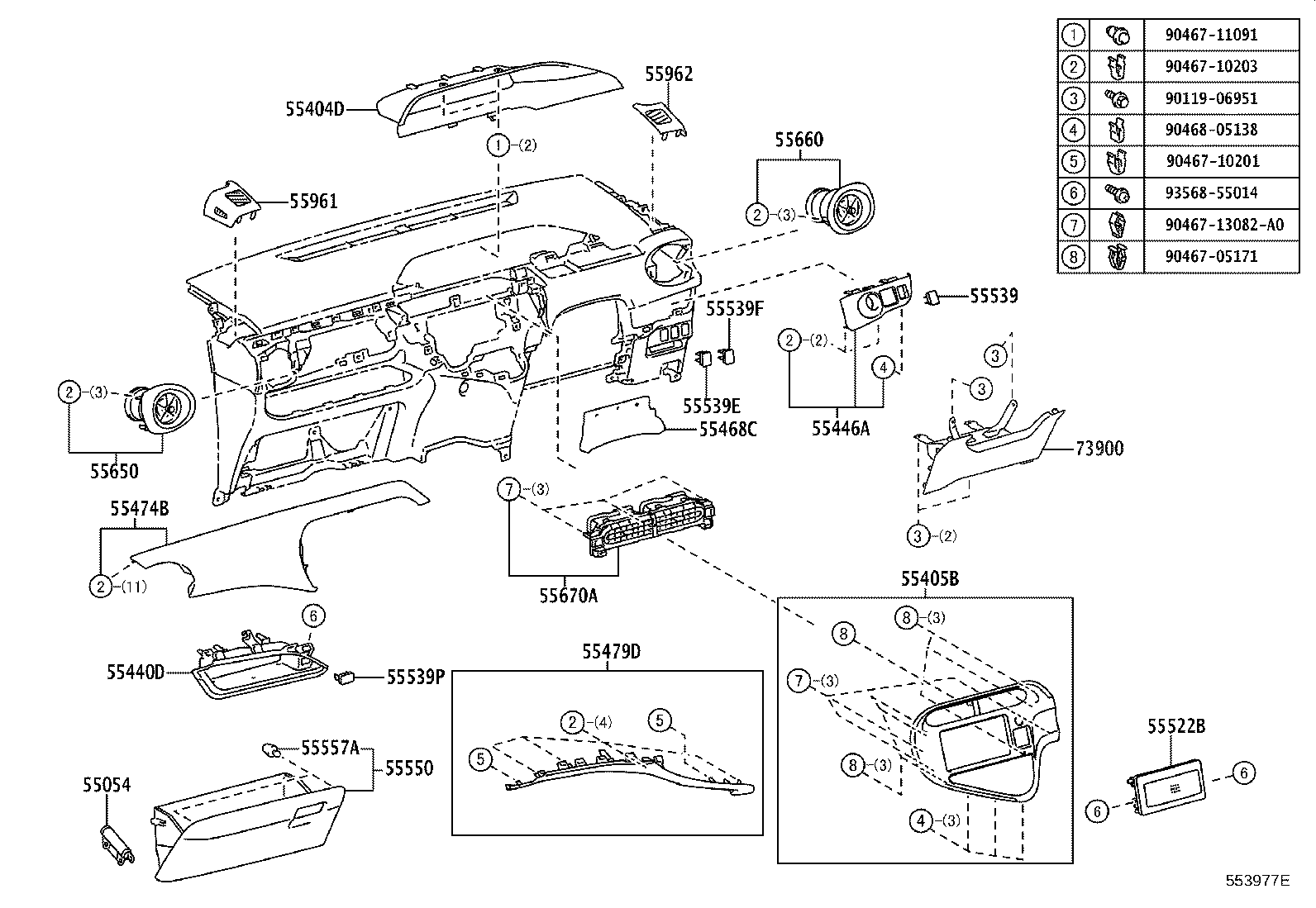

ILLUST NO. 2 OF 2(1706- )RHD

Click highlighted areas on diagram

diagram 55054 55404D 55405B 55440D 55446A 55468C 55474B 55479D 55522B 55539 55539E 55539F 55539P 55550 55557A 55650 55660 55670A 55961 55962 73900 9011906951 9046705171 9046710201 9046710203 9046711091 9046713082A0 9046805138 9356855014
Part # Description Qty Price
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-52020

NHP10

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-52120C0

NHP10..RHD

BLACK,TRIM2#,8#

 1
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-52D30C1

NHP10..RHD

BLACK,TRIM2#,8#

 1
55440D - BOX ASSY, INSTRUMENT PANEL
55440-52140C1

NHP10..RHD

BLACK,TRIM2#,8#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-52120C0

NHP10..RHD

BLACK,TRIM2#,8#

 1
55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55468-52090

NHP10

 1
55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL
55470-52180C0

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
55474-52220C0

NHP10..ARL

BLACK ME.,TRIM2#,8#

 1
55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER
55479-52120C0

NHP10..RHD

BLACK,TRIM2#,8#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

NHP10

AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER

 1
55522-52020

NHP10

 1
55539 - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP10..RHD

HEADLAMP-LED,BLACK,TRIM2#,8#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP10..RHD

BLACK,TRIM2#,8#

 1
55539F - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP10..RHD

BLACK,TRIM2#,8#

 2
55539P - COVER, SPARE SWITCH HOLE
55539-52060C4

NHP10

BLACK,TRIM2#,8#

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-52340C0

NHP10..RHD

BLACK,TRIM2#,8#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

NHP10

 2
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55012-52050C0

NHP10..RHD

BLACK/BLUE,TRIM2#,8#

 1
55012-52040C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
55012-52040C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
55012-52050C2

NHP10..RHD

BLACK/BLUE,TRIM8#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55011-52040C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
55011-52040C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
55011-52050C0

NHP10..RHD

BLACK/BLUE,TRIM2#,8#

 1
55011-52050C2

NHP10..RHD

BLACK/BLUE,TRIM8#

 1
55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER
55670-52250C0

NHP10

BLACK,TRIM2#,8#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-52030C0

NHP10

BLACK,TRIM2#,8#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-52010C0

NHP10

BLACK,TRIM2#,8#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-52100C0

NHP10..RHD

BLACK,TRIM2#,8#

 1
Common parts
90119-06951
90467-05171
90467-10201
90467-10203
90467-11091
90467-13082A0
90468-05138
93568-55014
