NHP10R-AHXVBQ (2014)

Toyota Prius C

Production Dec 2014 - Jun 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1412-1706)

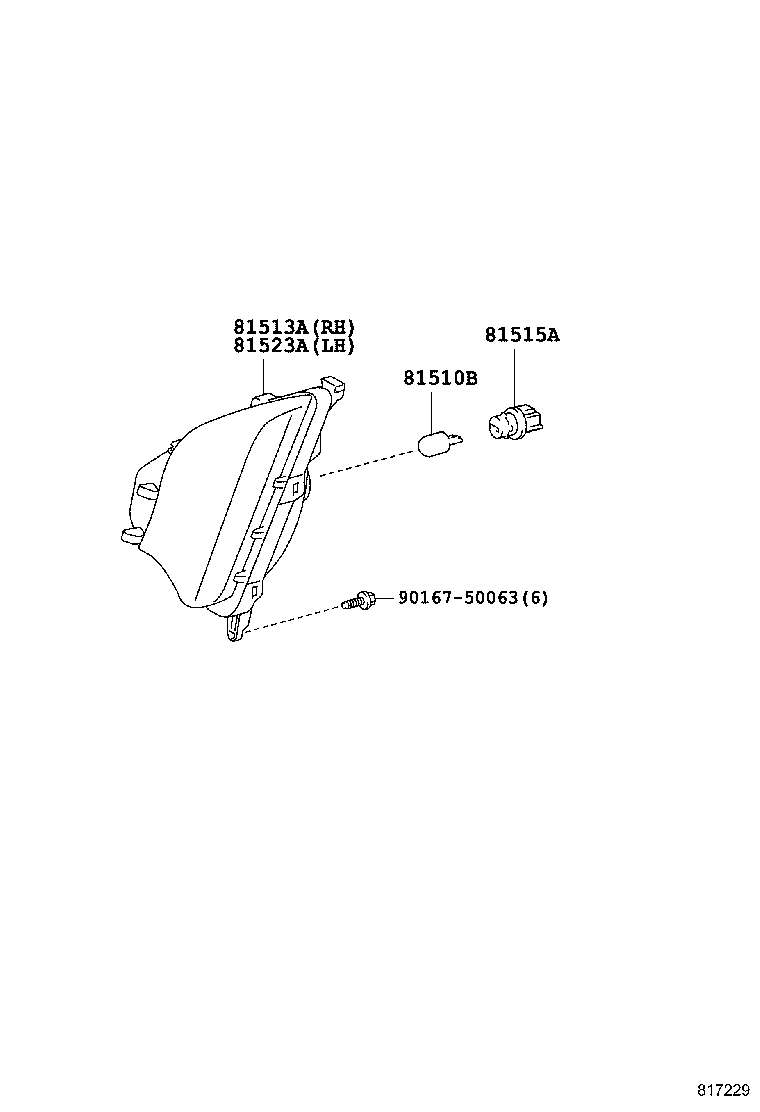

Click highlighted areas on diagram

diagram 81510B 81513A 81515A 81523A 9016750063
Part # Description Qty Price
81510B - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

NHP10

12V 21W,AMBER

 2
81513A - UNIT ASSY, FRONT TURN SIGNAL LAMP, RH
81511-52060

NHP10

 1
81515A - PLUG ASSY, FRONT TURN SIGNAL LAMP
90075-60028

NHP10

 2
81523A - UNIT ASSY, FRONT TURN SIGNAL LAMP, LH
81521-52060

NHP10

 1
Common parts
90167-50063
