NHP10R-AHXVBQ (2014)
Toyota Prius C
Production
Dec 2014
-
Jun 2017
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

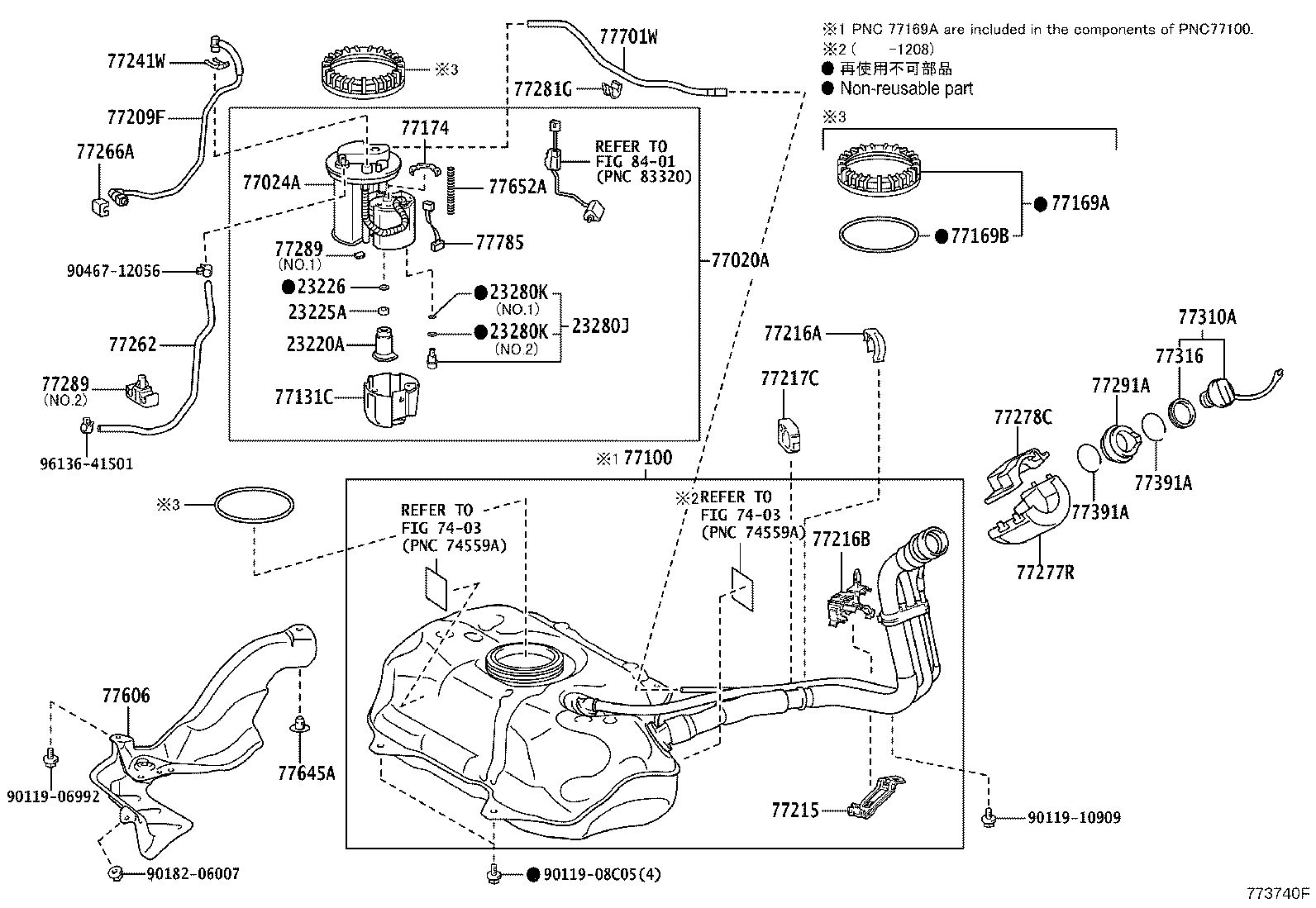

ILLUST NO. 1 OF 3(1112-1706)
Click highlighted areas on diagram
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-21211 |
1NZFXE..NHP10 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
1NZFXE..NHP10 |
1 | ||
| 23226 - RING, O(FOR FUEL PUMP) | ||||
| 90301-08020 |
1NZFXE..NHP10 |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
1NZFXE..NHP10 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE..NHP10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NZFXE..NHP10 NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
1NZFXE..NHP10 NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
1NZFXE..NHP10 NO.2:REFER ILLUST. |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-52441 |
NHP10 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-52172 |
NHP10 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-52350 |
NHP10 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52110 |
NHP10 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52040 |
NHP10 |
1 | ||
| 77169B - GASKET, FUEL SUCTION TUBE SET, NO.1 | ||||
| 77169-52030 |
NHP10 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52070 |
NHP10 |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-52190 |
NHP10 |
1 | ||
| 77215 - PLATE, FUEL TANK FILLER PIPE FLANGE | ||||
| 77219-52060 |
NHP10 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-12180 |
NHP10 |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-52160 |
NHP10 |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-52080 |
NHP10 |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
NHP10 |
1 | ||
| 77262 - TUBE, FUEL EMISSION, NO.2 | ||||
| 77028-52050 |
NHP10 |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-52110 |
NHP10 |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-52090 |
NHP10 |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-12070 |
NHP10 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-52040 |
NHP10 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
NHP10 NO.1:REFER ILLUST. |
1 | ||
| 77289-52130 |
NHP10 NO.2:REFER ILLUST. |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
NHP10 NO.1:REFER ILLUST. |
1 | ||
| 77289-52130 |
NHP10 NO.2:REFER ILLUST. |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-52100 |
NHP10 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
NHP10 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
NHP10 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NHP10 |
2 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-12020 |
NHP10 |
2 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-52110 |
NHP10 |
1 | ||
| 77645A - RETAINER, FUEL TANK PROTECTOR | ||||
| 77645-52020 |
NHP10 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-52030 |
NHP10 |
1 | ||
| 77701W - HOSE SUB-ASSY, CANISTER OUTLET, NO.1 | ||||
| 77701-52030 |
NHP10 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52110 |
NHP10 |
1 | ||
| Common parts | ||||
| 90119-06992 | ||||
| 90119-08C05 | ||||
| 90119-10909 | ||||
| 90182-06007 | ||||
| 90467-12056 | ||||
| 96136-41501 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8401 | ||||
