NHP10R-AHXVBQ (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1112- )RHD

Click highlighted areas on diagram

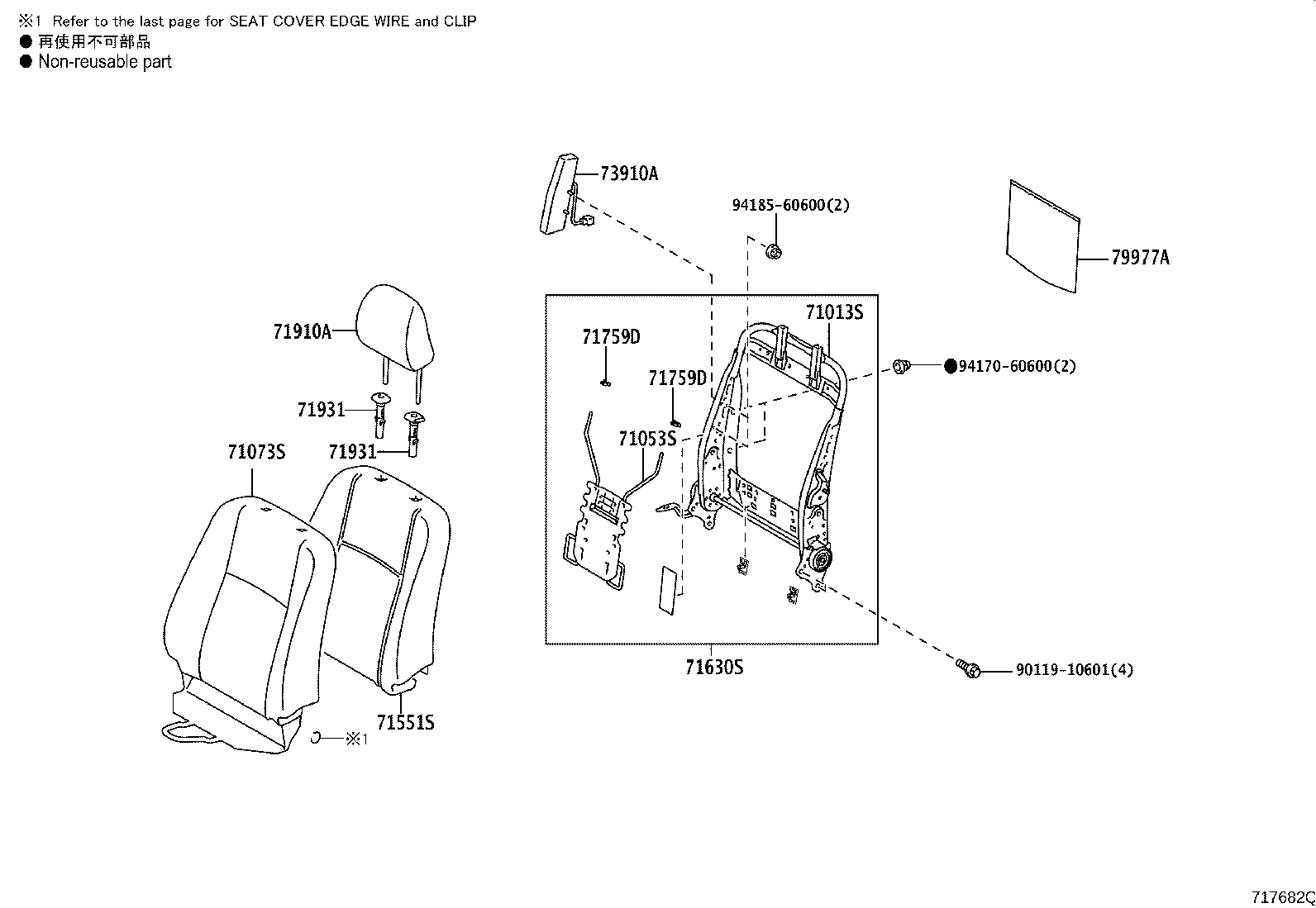

RH SEAT(HEADREST=SEPARATED TYPE)

diagram 71013S 71053S 71073S 71551S 71630S 71759D 71759D 71910A 71931 71931 73910A 79977A 9011910601 9417060600 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-52300

NHP10

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-52050

NHP10

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-52Q91C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71073-52Q50B1

NHP10..RHD

LT.BLUE GRAY/DARK GRAY,TRIM2#

 1
71073-52Q51B1

NHP10..RHD

LT.BLUE GRAY,TRIM2#

 1
71073-52Q91C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71073-52Q90C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-52A70

NHP10

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-52520

NHP10

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

NHP10

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

NHP10

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-52D91C0

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52D90C0

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52E20B2

NHP10

DK.GRAY,TRIM2#

 2
71910-52D91C2

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52E20B1

NHP10

DK.GRAY,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020C0

NHP10

W(LOCK),BLACK,TRIM2#

 2
71931-47020C0

NHP10

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020C0

NHP10

W(LOCK),BLACK,TRIM2#

 2
71931-47020C0

NHP10

W/O(LOCK),BLACK,TRIM2#

 2
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-52240

NHP10

 1
79977A - FELT, SEAT BACK
79977-52120

NHP10

 2
Common parts
90119-10601
94170-60600
94185-60600

ILLUST NO. 1 OF 2(1112- )RHD

Click highlighted areas on diagram

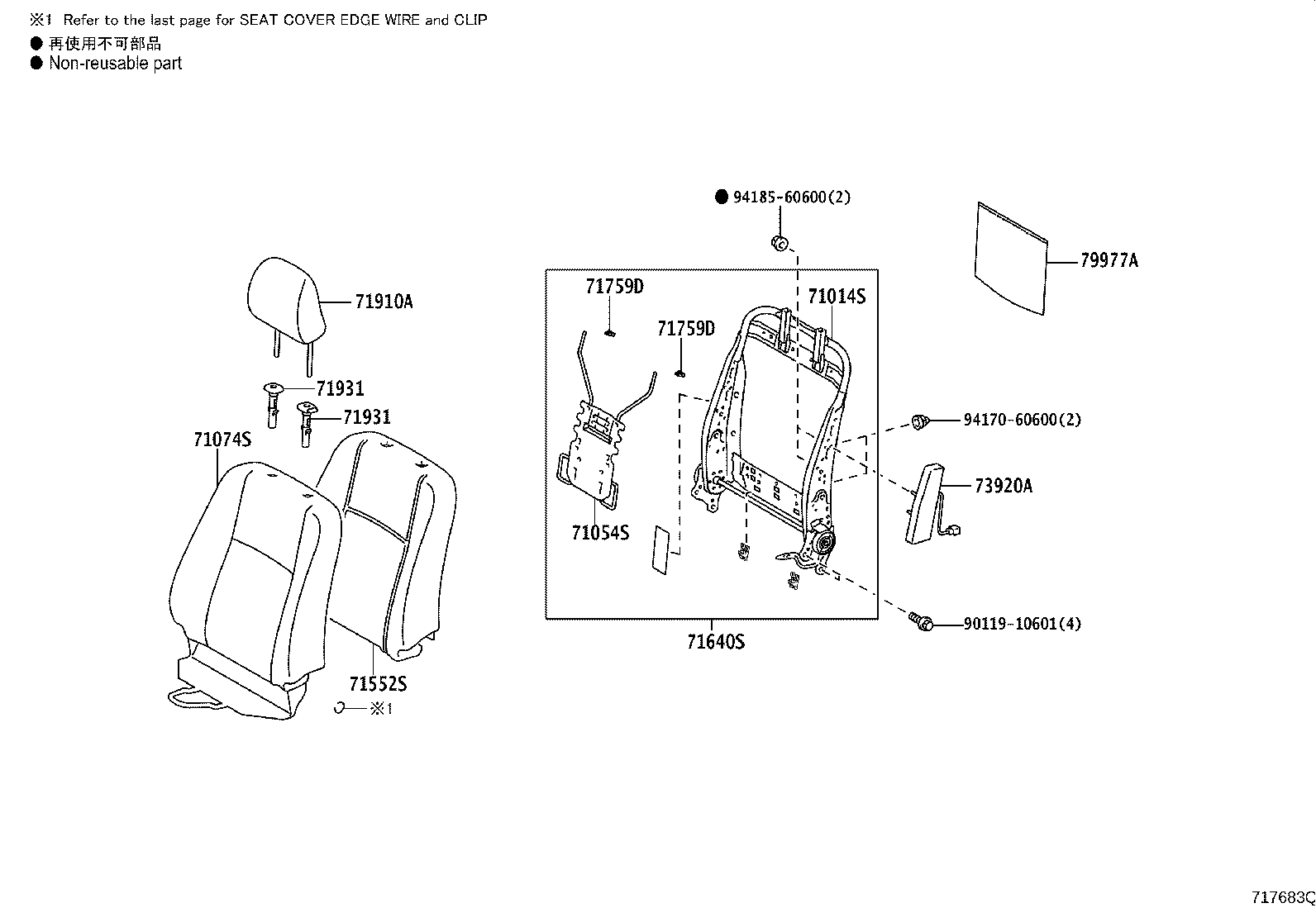

LH SEAT(HEADREST=SEPARATED TYPE)

diagram 71014S 71054S 71074S 71552S 71640S 71759D 71759D 71910A 71931 71931 73920A 79977A 9011910601 9417060600 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-52240

NHP10

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-52050

NHP10

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-52K90C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71074-52K91C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71074-52K51B1

NHP10..RHD

LT.BLUE GRAY,TRIM2#

 1
71074-52K91C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71074-52K50B1

NHP10..RHD

LT.BLUE GRAY/DARK GRAY,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-52850

NHP10

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71640-52330

NHP10

 1
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

NHP10

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-47010

NHP10

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-52D91C0

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52D90C0

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52E20B2

NHP10

DK.GRAY,TRIM2#

 2
71910-52D91C2

NHP10

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 2
71910-52E20B1

NHP10

DK.GRAY,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020C0

NHP10

W(LOCK),BLACK,TRIM2#

 2
71931-47020C0

NHP10

W/O(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71930-47020C0

NHP10

W(LOCK),BLACK,TRIM2#

 2
71931-47020C0

NHP10

W/O(LOCK),BLACK,TRIM2#

 2
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-52220

NHP10

 1
79977A - FELT, SEAT BACK
79977-52120

NHP10

 2
Common parts
90119-10601
94170-60600
94185-60600

(1112- )

Click highlighted areas on diagram

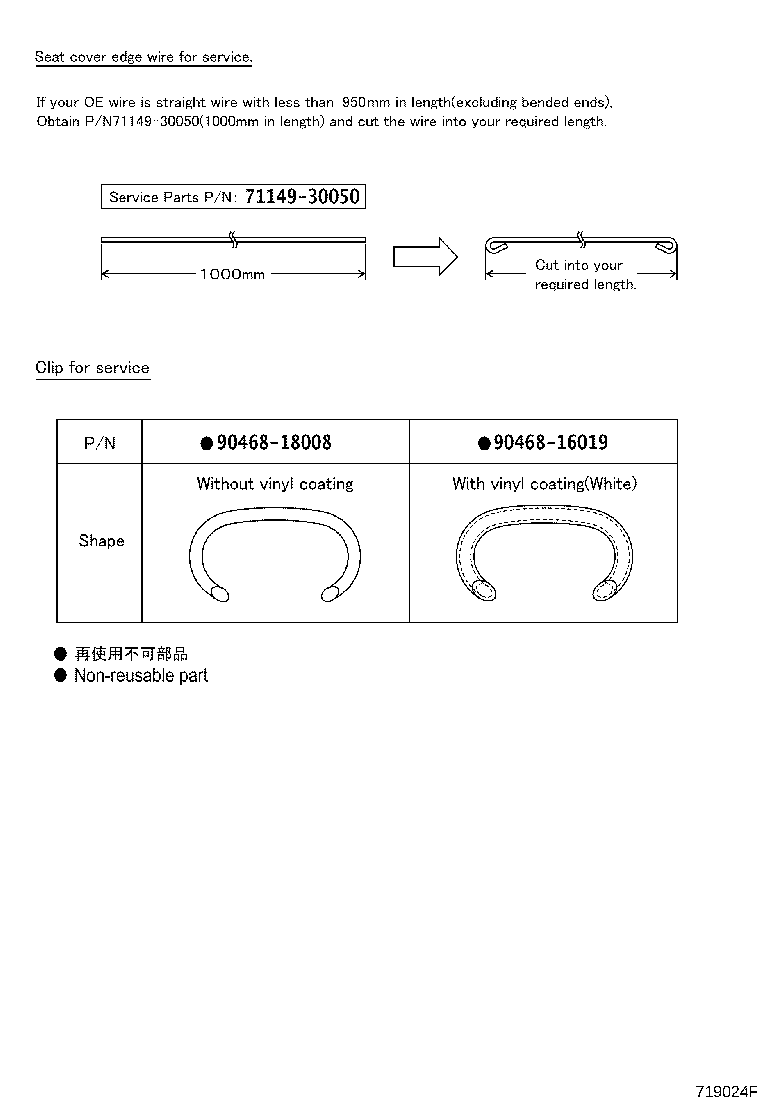

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
90468-16019
90468-18008

ILLUST NO. 2 OF 2(1112- )RHD

Click highlighted areas on diagram

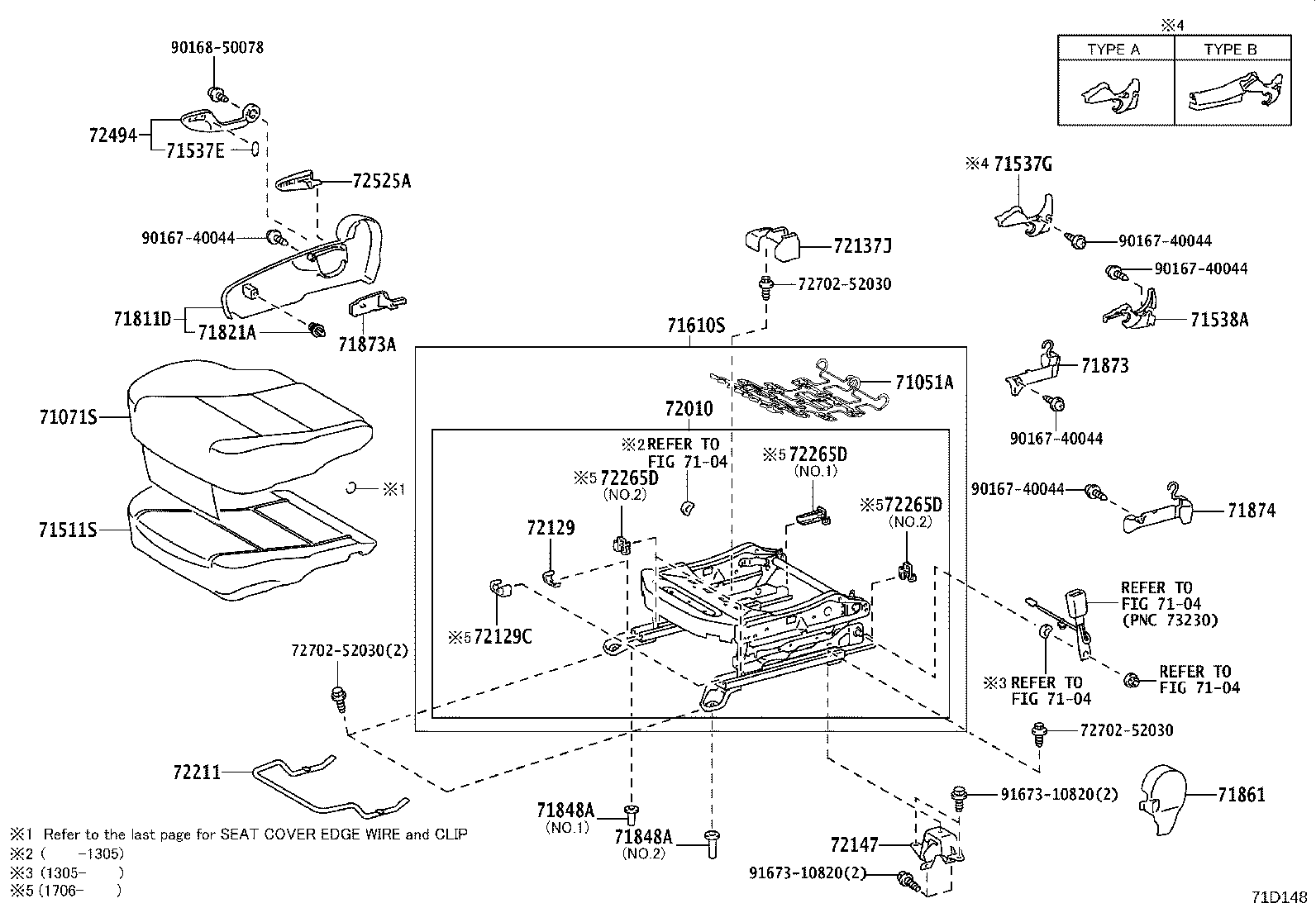

RH SEAT(HEADREST=SEPARATED TYPE)

diagram 7104 7104 7104 7104 71051A 71071S 71511S 71537E 71537G 71538A 71610S 71811D 71821A 71848A 71848A 71861 71873 71873A 71874 72010 72129 72129C 72137J 72147 72211 72265D 72265D 72265D 72494 72525A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9016740044 9016740044 9016850078 9167310820 9167310820
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-47060

NHP10

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-52M10B1

NHP10..RHD

LT.BLUE GRAY/DARK GRAY,TRIM2#

 1
71071-52M70C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71071-52M71C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71071-52M11B1

NHP10..RHD

LT.BLUE GRAY,TRIM2#

 1
71071-52M71C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-52650

NHP10..RHD

PNC 71537G=TYPE A

 1
71511-52651

NHP10..RHD

PNC 71537G=TYPE B

 1
71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1
71537-47040

NHP10..RHD

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-52100C0

NHP10..RHD

BLACK,TRIM2#

 1
71537-52150C0

NHP10..RHD

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-52050C0

NHP10..RHD

BLACK,TRIM2#

 1
71538-52090C0

NHP10..RHD

BLACK,TRIM2#

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-52161

NHP10..RHD

 1
71610-52160

NHP10..RHD

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-52291C0

NHP10..RHD

BLACK,TRIM2#

 1
71821A - CLIP (FOR FRONT SEAT SIDE SHIELD)
71769-47020

NHP10

 2
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

NHP10

NO.1:REFER ILLUST.

 1
71848-52100

NHP10

NO.2:REFER ILLUST.

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

NHP10

NO.1:REFER ILLUST.

 1
71848-52100

NHP10

NO.2:REFER ILLUST.

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-52230C0

NHP10..RHD

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-52280C0

NHP10..RHD

BLACK

 1
71873A - SHIELD, FRONT SEAT CUSHION, LOWER
71873-52230C0

NHP10..RHD

BLACK

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-47040

NHP10..RHD

 1
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-52A71

NHP10..RHD

 1
72010-52A70

NHP10..RHD

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-52150

NHP10

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-52110C0

NHP10

BLACK,TRIM2#

 1
72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH
72147-52120

NHP10

 1
72147-52160

NHP10

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52180

NHP10

 2
72494 - HANDLE, VERTICAL ADJUSTING, RH
72494-52040C0

NHP10..RHD

BLACK,TRIM2#

 1
72494-52050C0

NHP10..RHD

BLACK,TRIM2#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-47010C0

NHP10..RHD

BLACK,TRIM2#

 1
Common parts
72702-52030
90167-40044
90168-50078
91673-10820
Linked diagrams
7104

ILLUST NO. 2 OF 2(1112- )RHD

Click highlighted areas on diagram

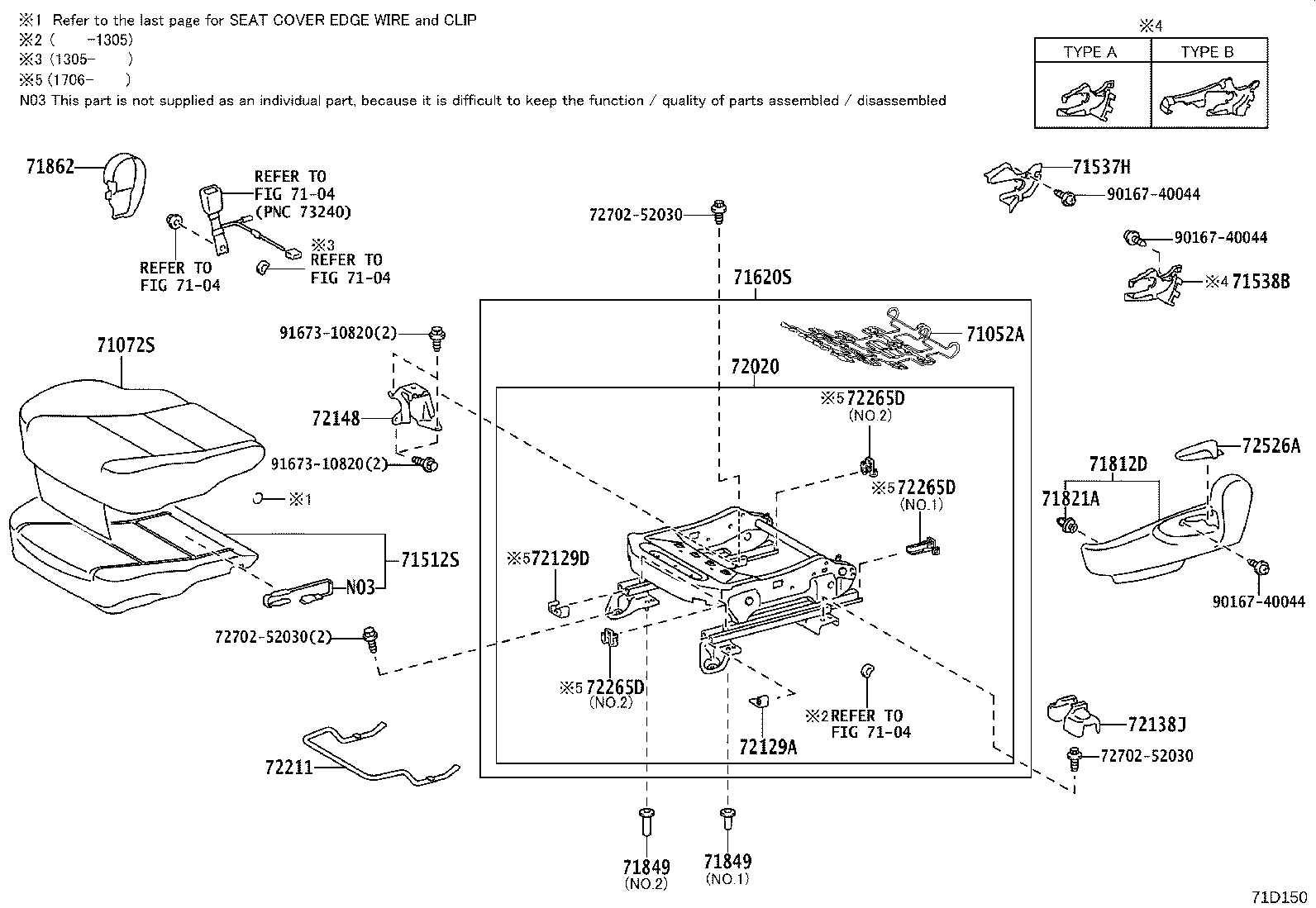

LH SEAT(HEADREST=SEPARATED TYPE)

diagram 7104 7104 7104 7104 71052A 71072S 71512S 71537H 71538B 71620S 71812D 71821A 71849 71849 71862 72020 72129A 72129D 72138J 72148 72211 72265D 72265D 72265D 72526A 7270252030 7270252030 7270252030 9016740044 9016740044 9016740044 9167310820 9167310820
Part # Description Qty Price
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-47060

NHP10

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-52M90C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71072-52M51B1

NHP10..RHD

LT.BLUE GRAY,TRIM2#

 1
71072-52M50B1

NHP10..RHD

LT.BLUE GRAY/DARK GRAY,TRIM2#

 1
71072-52M91C2

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71072-52M91C1

NHP10..RHD

SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-52091

NHP10..RHD

PNC 71538B=TYPE B

 1
71502-52090

NHP10..RHD

PNC 71538B=TYPE A

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-52120C0

NHP10..RHD

BLACK,TRIM2#

 1
71537-52121C0

NHP10..RHD

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-52070C0

NHP10..RHD

BLACK,TRIM2#

 1
71538-52071C0

NHP10..RHD

BLACK,TRIM2#

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71620-52170

NHP10..RHD

 1
71620-52171

NHP10..RHD

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-52380C0

NHP10..RHD

BLACK,TRIM2#

 1
71821A - CLIP (FOR FRONT SEAT SIDE SHIELD)
71769-47020

NHP10

 2
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52100

NHP10

NO.2:REFER ILLUST.

 1
71848-47010

NHP10

NO.1:REFER ILLUST.

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-52100

NHP10

NO.2:REFER ILLUST.

 1
71848-47010

NHP10

NO.1:REFER ILLUST.

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-52230C0

NHP10..RHD

BLACK,TRIM2#

 1
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-52A31

NHP10..RHD

 1
72020-52A30

NHP10..RHD

 1
72129A - PROTECTOR, SEAT TRACK LOWER RAIL, NO.2
72129-52160

NHP10

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72138-52090C0

NHP10

BLACK,TRIM2#

 1
72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72148-52120

NHP10

 1
72148-52150

NHP10

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-52180

NHP10

 2
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-52040C0

NHP10..RHD

BLACK,TRIM2#

 1
Common parts
72702-52030
90167-40044
91673-10820
Linked diagrams
7104
