NHP10R-AHXVBQ (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

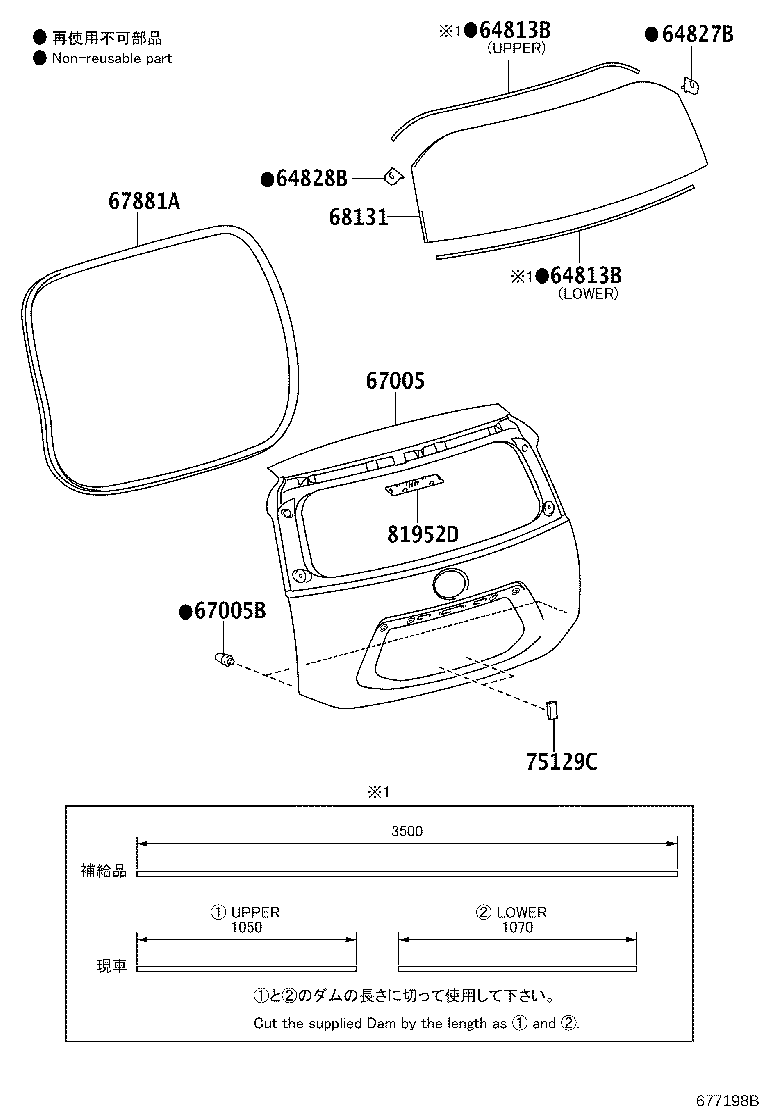

ILLUST NO. 1 OF 2(1112- )
Click highlighted areas on diagram
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
NHP10 UPPER & LOWER |
1 | ||
| 64813B - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-64010 |
NHP10 UPPER & LOWER |
1 | ||
| 64827B - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-52100 |
NHP10 |
1 | ||
| 64828B - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-52100 |
NHP10 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-52D00 |
NHP10..ARL AUSTRALIA SPEC |
1 | ||
| 67005-52D10 |
NHP10..ARL AUSTRALIA SPEC&AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER |
1 | ||
| 67005-52D10 |
NHP10 |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09146 |
NHP10 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-52190 |
NHP10 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-52912 |
NHP10..ARL |
1 | ||
| 68105-52913 |
NHP10..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-30010 |
NHP10 |
2 | ||
| 81952D - COVER, REAR LAMP | ||||
| 81952-52030 |
NHP10 |
1 | ||

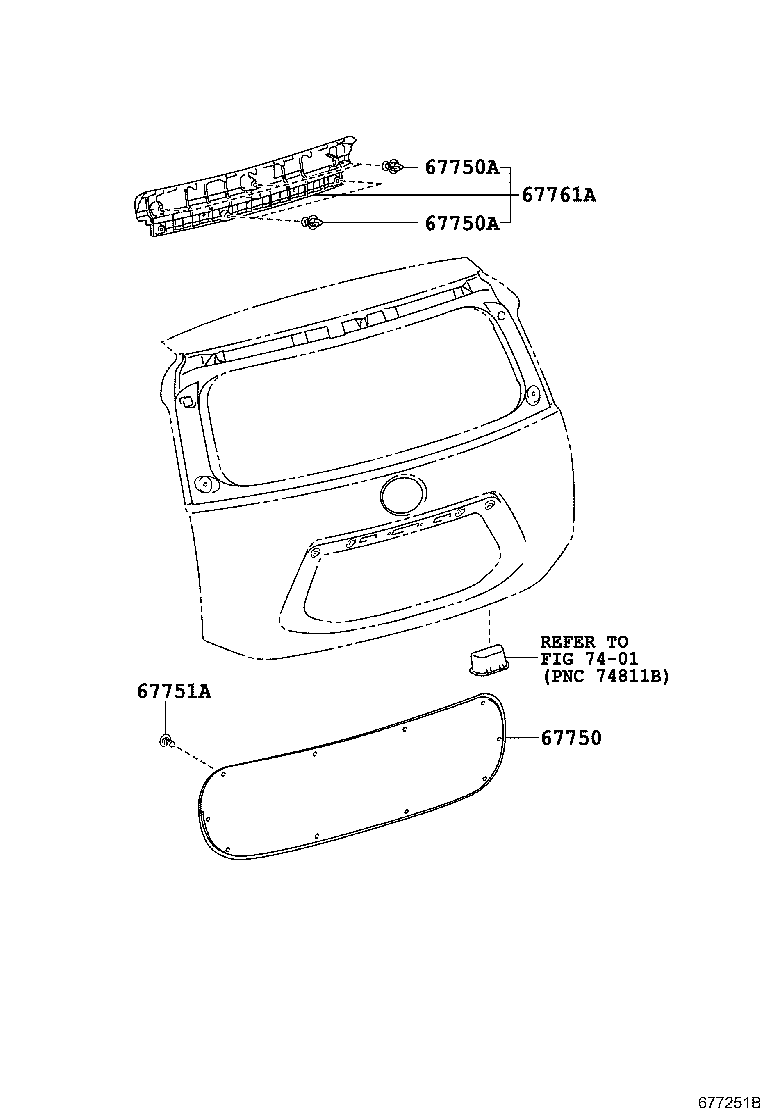

ILLUST NO. 2 OF 2(1112- )
Click highlighted areas on diagram
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-52140B1 |
NHP10 DARK GRAY,TRIM2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
NHP10 |
5 | ||
| 90467-10161 |
NHP10 |
4 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
NHP10 |
5 | ||
| 90467-10161 |
NHP10 |
4 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-08186C0 |
NHP10 BLACK,TRIM2# |
10 | ||
| 67761A - COVER, BACK DOOR TRIM | ||||
| 67761-52010C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 7401 | ||||
