NHP10R-AHXVBQ (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

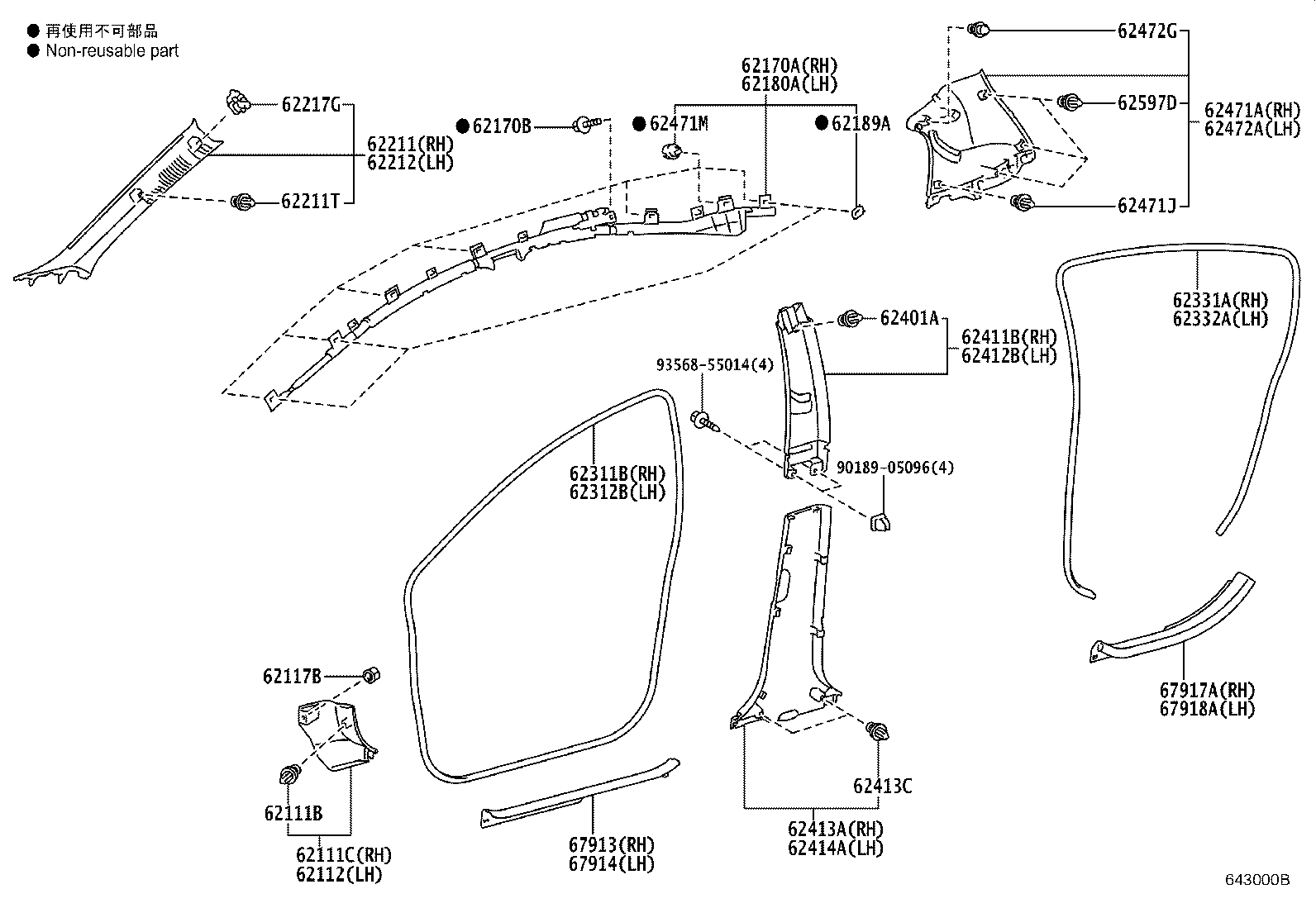

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NHP10 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-52210C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-52350C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NHP10 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-52090 |
NHP10 |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NHP10 |
2 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-52090 |
NHP10 |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-20010 |
NHP10 |
6 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-52300B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62211-52301B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
NHP10 |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52311B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62212-52310B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-52120 |
NHP10 |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-52210 |
NHP10 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-52180 |
NHP10 |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-52090 |
NHP10 |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-52110 |
NHP10 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10167 |
NHP10 |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-52200B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-52190B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-52160C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10167 |
NHP10 |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-52160C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-52430B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
NHP10 |
2 | ||
| 62471M - CLIP | ||||
| 62184-06010 |
NHP10 |
14 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-52480B0 |
NHP10 LT.GRAY,TRIM2# |
1 | ||
| 62472G - CLIP(FOR ROOF SIDE GARNISH) | ||||
| 63395-12150 |
NHP10 |
2 | ||
| 62597D - CLIP | ||||
| 90467-10167 |
NHP10 |
6 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-52220C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52220C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-52210C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-52220C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 93568-55014 | ||||
