NHP10R-AHXVBQ (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

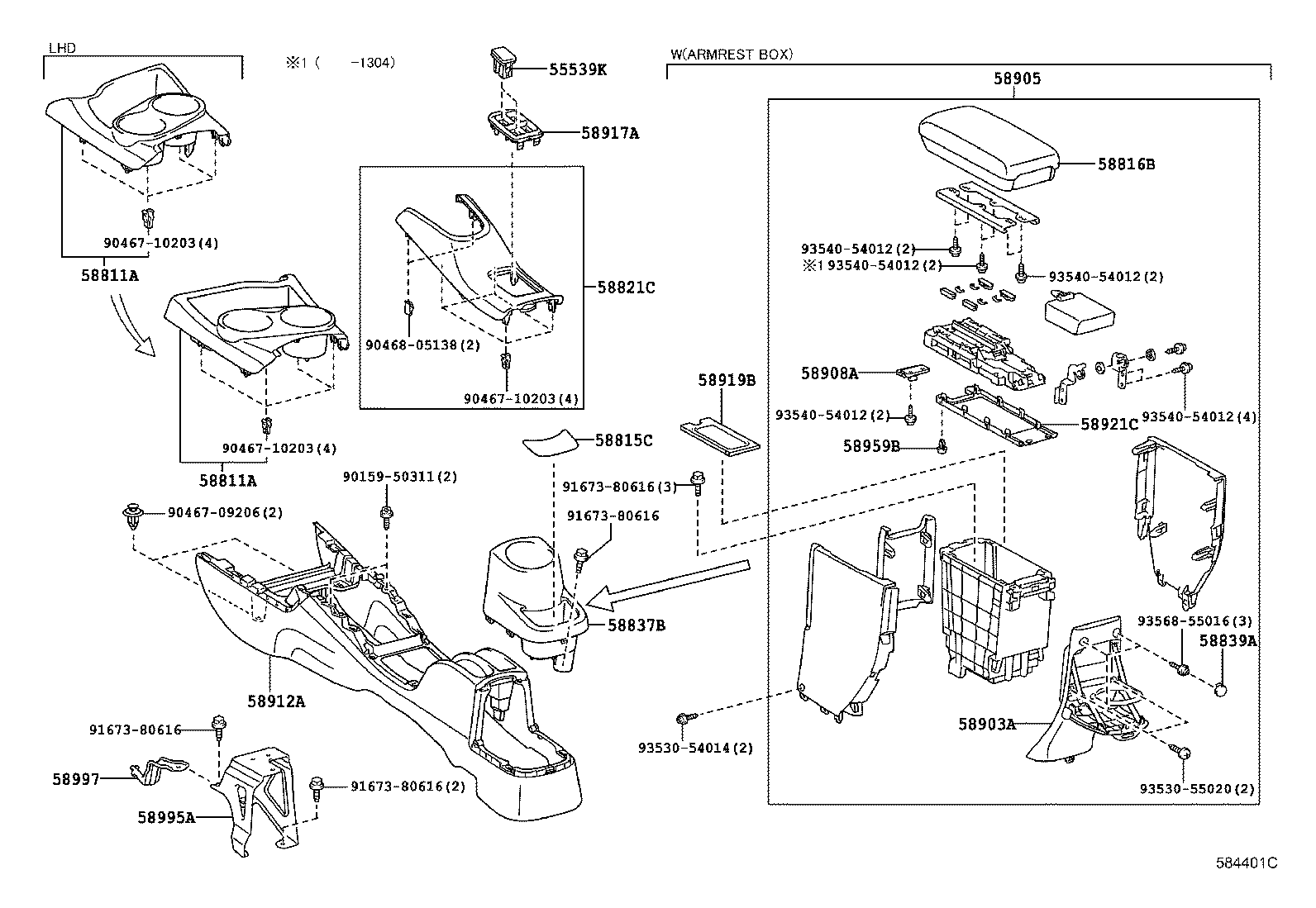

Click highlighted areas on diagram

diagram 55539K 58811A 58811A 58815C 58816B 58821C 58837B 58839A 58903A 58905 58908A 58912A 58917A 58919B 58921C 58959B 58995A 58997 9015950311 9046709206 9046710203 9046710203 9046710203 9046805138 9167380616 9167380616 9167380616 9167380616 9353054014 9353055020 9354054012 9354054012 9354054012 9354054012 9354054012 9356855016
Part # Description Qty Price
55539K - COVER, SPARE SWITCH HOLE
55539-28160B3

NHP10

LT.BLUE GRAY,TRIM2#

 1
55539-28160B3

NHP10

LT.BLUE GRAY,TRIM21,28

 1
58811A - BOX, CONSOLE, FRONT
58811-52050C0

NHP10..RHD

BLACK,TRIM2#

 1
58811A - BOX, CONSOLE, FRONT
58811-52050C0

NHP10..RHD

BLACK,TRIM2#

 1
58816B - INSERT, CONSOLE BOX
58914-52020C0

NHP10

BLACK,TRIM2#

 1
58821C - PANEL, CONSOLE, UPPER
58821-52120B0

NHP10

LT.BLUE GRAY,TRIM2#

 1
58821-52120B0

NHP10

LT.BLUE GRAY,TRIM21,28

 1
58839A - COVER, CONSOLE BOX HOLE
58839-52030C0

NHP10

BLACK,TRIM2#

 2
58903A - PANEL SUB-ASSY, CONSOLE REAR END
58903-52020C0

NHP10

BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-52020C0

NHP10

BLACK,TRIM2#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-12080

NHP10

 1
58912A - BOX, REAR CONSOLE
58911-52210C0

NHP10

BLACK,TRIM2#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-52131B0

NHP10

LT.BLUE GRAY,TRIM2#

 1
58917-52130B0

NHP10

LT.BLUE GRAY,TRIM2#

 1
58919B - PLATE, CONSOLE BOX
58919-52010

NHP10

 1
58921C - PLATE, BOX, UPPER NO.1
58921-52020

NHP10

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60060

NHP10

 2
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-52050

NHP10

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-52020

NHP10

 1
Common parts
90159-50311
90467-09206
90467-10203
90468-05138
91673-80616
93530-54014
93530-55020
93540-54012
93568-55016
