NHP10R-AHXVBQ (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112-1706)

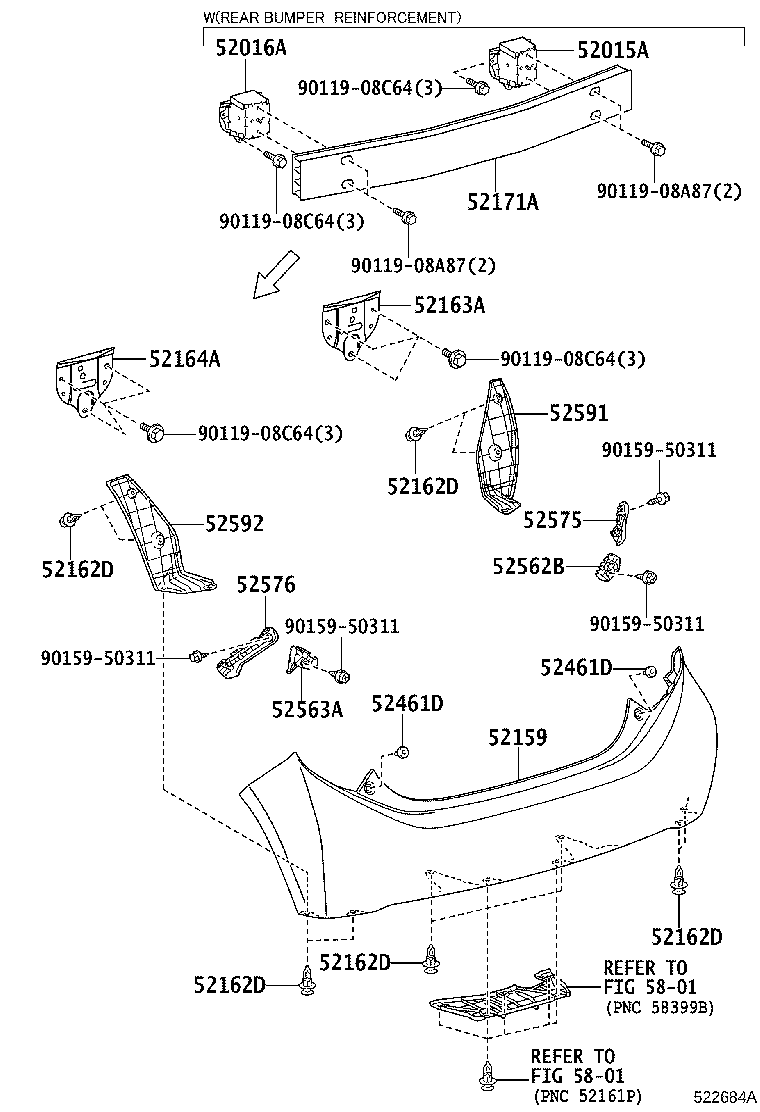

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52971 |
NHP10 PAINT REQ. |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
10 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NHP10 |
10 | ||
| 52163A - PLATE, REAR BUMPER, RH | ||||
| 52163-52080 |
NHP10..ARL |
1 | ||
| 52164A - PLATE, REAR BUMPER, LH | ||||
| 52164-52080 |
NHP10..ARL |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP10 |
2 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NHP10 |
2 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-52060 |
NHP10 |
1 | ||
| 52562-52061 |
NHP10 |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-52030 |
NHP10 |
1 | ||
| 52563-52031 |
NHP10 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52180 |
NHP10 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52160 |
NHP10 |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52330 |
NHP10 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52320 |
NHP10 |
1 | ||
| Common parts | ||||
| 90119-08A87 | ||||
| 90119-08C64 | ||||
| 90159-50311 | ||||
| Linked diagrams | ||||
| 5801 | ||||
