NHP10R-AHXVBQ (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

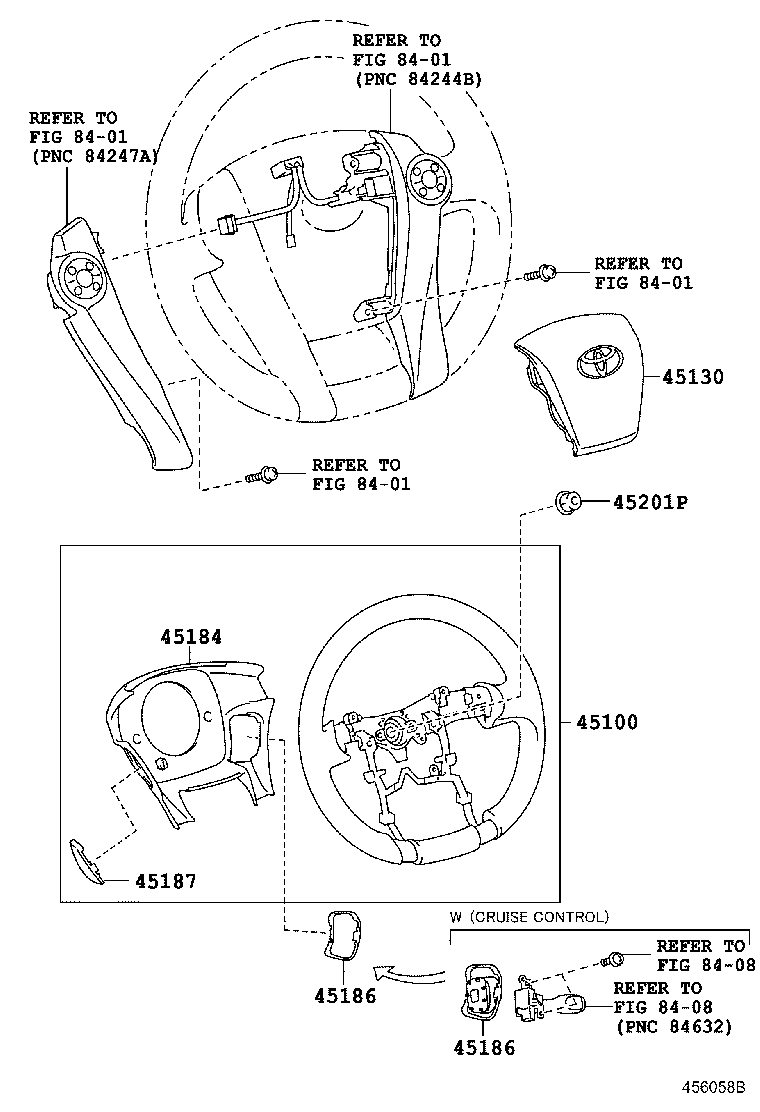

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45130 45184 45186 45186 45187 45201P 8401 8401 8401 8401 8408 8408
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-47120C0

NHP10

4-SPOKE,URETHANE,BLACK,TRIM2#

 1
45100-47130C0

NHP10

4-SPOKE,LEATHER,SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2#

 1
45130 - BUTTON ASSY, HORN
45130-52730C0

NHP10

BLACK,TRIM2#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-47010C0

NHP10

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47030C0

NHP10

BLACK,TRIM2#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-47030C0

NHP10

BLACK,TRIM2#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-47010C0

NHP10

BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

NHP10

 1
Linked diagrams
8401
8408
