NHP10R-AHXVBQ (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

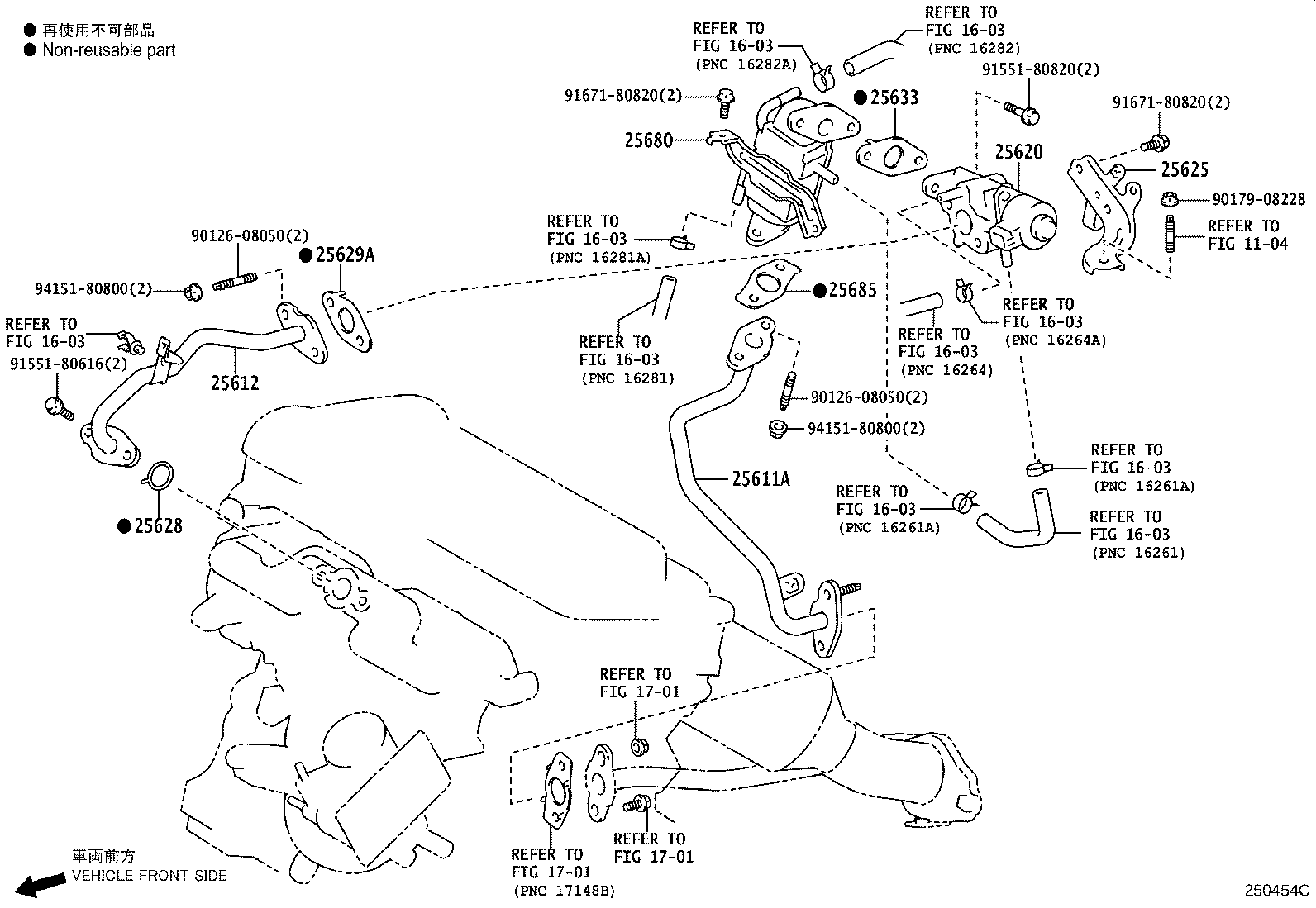

Click highlighted areas on diagram

diagram 1104 1603 1603 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 1701 25611A 25612 25620 25625 25628 25629A 25633 25680 25685 9012608050 9012608050 9017908228 9155180616 9155180820 9167180820 9167180820 9415180800 9415180800
Part # Description Qty Price
25611A - PIPE, EGR, NO.1
25611-21011

1NZFXE..NHP10

 1
25612 - PIPE, EGR, NO.2
25612-21010

1NZFXE..NHP10

 1
25620 - VALVE ASSY, EGR
25620-21020

1NZFXE..NHP10

 1
25625 - BRACKET, EGR VALVE
25625-21010

1NZFXE..NHP10

 1
25628 - GASKET, EGR INLET
25628-28010

1NZFXE..NHP10

 1
25629A - GASKET, EGR PIPE, NO.2
25629-21010

1NZFXE..NHP10

 1
25633 - GASKET, EGR VALVE
25633-21010

1NZFXE..NHP10

 1
25680 - COOLER ASSY, EGR
25680-21010

1NZFXE..NHP10

 1
25685 - GASKET, EGR COOLER, NO.1
25685-21010

1NZFXE..NHP10

 1
Common parts
90126-08050
90179-08228
91551-80616
91551-80820
91671-80820
94151-80800
Linked diagrams
1104
1603
1701
