NHP10R-AHXVBQ (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

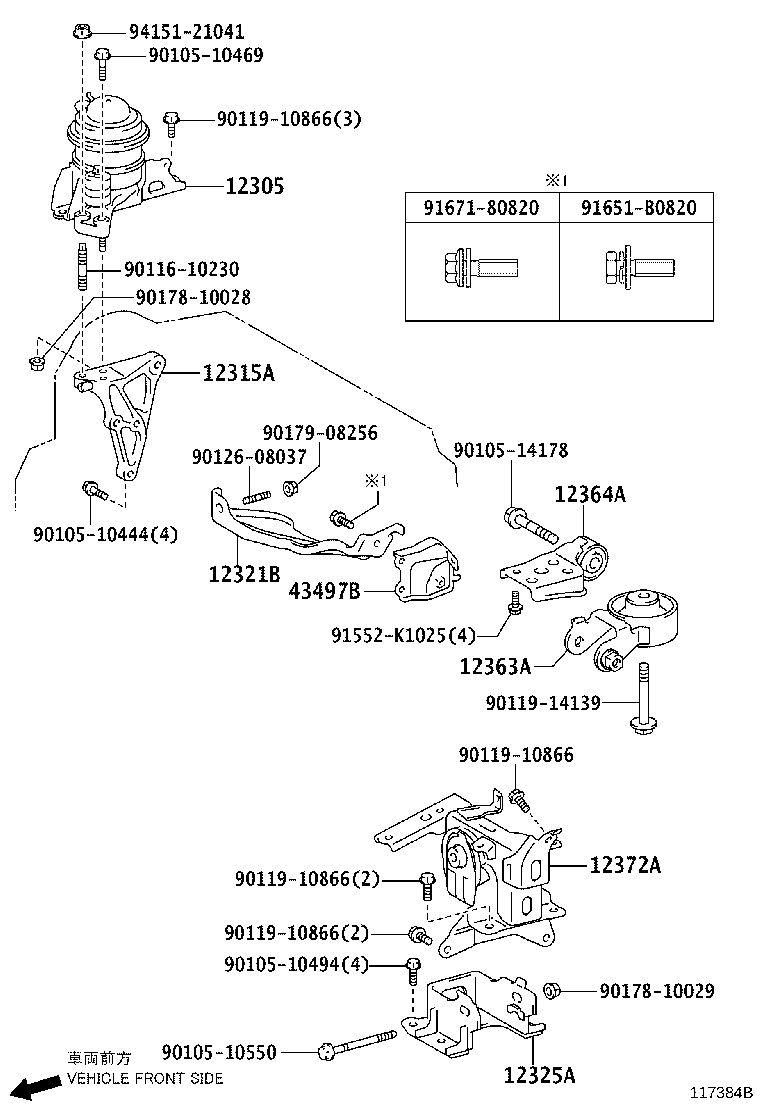

Click highlighted areas on diagram

diagram 12305 12315A 12321B 12325A 12363A 12364A 12372A 43497B 9010510444 9010510469 9010510494 9010510550 9010514178 9011610230 9011910866 9011910866 9011910866 9011910866 9011914139 9012608037 9017810028 9017810029 9017908256 91552K1025 91651B0820 9167180820 9415121041
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-21450

1NZFXE..NHP10

 1
12305-21451

1NZFXE..NHP10

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-21060

1NZFXE..NHP10

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-52090

1NZFXE..NHP10

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-21260

1NZFXE..NHP10

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-21160

1NZFXE..NHP10

 1
12363-21161

1NZFXE..NHP10

 1
12364A - ROD, ENGINE LATERAL CONTROL
12364-21130

1NZFXE..NHP10

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-21360

1NZFXE..NHP10

 1
43497B - BRACKET, DRIVE SHAFT HEAT INSULATOR
43497-52050

NHP10

 1
Common parts
90105-10444
90105-10469
90105-10494
90105-10550
90105-14178
90116-10230
90119-10866
90119-14139
90126-08037
90178-10028
90178-10029
90179-08256
91552-K1025
91651-B0820
91671-80820
94151-21041
