NHP10R-AHXVB (2011)

Toyota Prius C

Production Dec 2011 - Dec 2014
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1412)

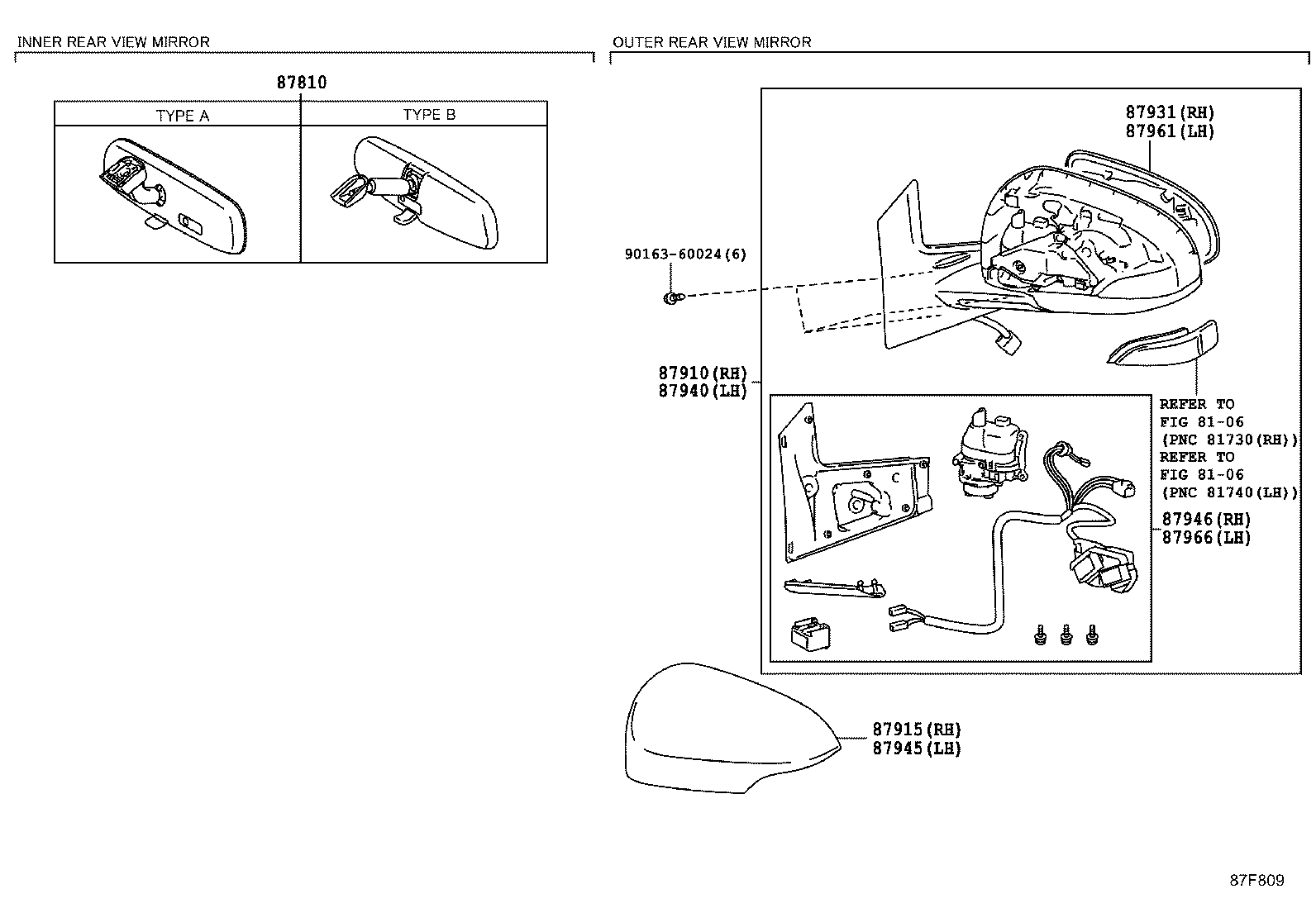

Click highlighted areas on diagram

diagram 8106 8106 87810 87910 87915 87931 87940 87945 87946 87961 87966 9016360024
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-AA011

NHP10

TYPE B:REFER ILLUST.

 1
87810-52041

NHP10

TYPE A:REFER ILLUST.

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-52D70

NHP10..RHD

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

 1
87910-52E30

NHP10..RHD

NO PAINT REQ.

 1
87915 - COVER, OUTER MIRROR, RH
87915-52170B1

NHP10

GRAY ME.,1G3

 1
87915-52170A2

NHP10

LIME WHITE PEARL CS.,082

 1
87915-52170A0

NHP10

SUPER WHITE 2,040

 1
87915-52170J1

NHP10

BLUE ME.,8T7

 1
87915-52170E2

NHP10

MANDARIN ORANGE M.M.,4V7

 1
87915-52170C0

NHP10

BLACK MC.,209

 1
87915-52170D1

NHP10

SUPER RED 5,3P0

 1
87915-52170B0

NHP10

SILVER ME.,1F7

 1
87915-52170H0

NHP10

AQUA M.M.,774

 1
87931 - OUTER MIRROR, RH
87931-52D70

NHP10

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-52D50

NHP10..RHD

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

 1
87940-52E10

NHP10..RHD

NO PAINT REQ.

 1
87945 - COVER, OUTER MIRROR, LH
87945-52170A0

NHP10

SUPER WHITE 2,040

 1
87945-52170E2

NHP10

MANDARIN ORANGE M.M.,4V7

 1
87945-52170B1

NHP10

GRAY ME.,1G3

 1
87945-52170H0

NHP10

AQUA M.M.,774

 1
87945-52170A2

NHP10

LIME WHITE PEARL CS.,082

 1
87945-52170B0

NHP10

SILVER ME.,1F7

 1
87945-52170J1

NHP10

BLUE ME.,8T7

 1
87945-52170D1

NHP10

SUPER RED 5,3P0

 1
87945-52170C0

NHP10

BLACK MC.,209

 1
87946 - RETRACTOR, OUTER MIRROR, RH
87946-52D70

NHP10..RHD

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

 1
87961 - MIRROR OUTER, LH
87961-52D50

NHP10

 1
87966 - RETRACTOR, OUTER MIRROR, LH
87966-52D50

NHP10..RHD

OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED)

 1
Common parts
90163-60024
Linked diagrams
8106
