NHP10R-AHXVB (2011)
Toyota Prius C

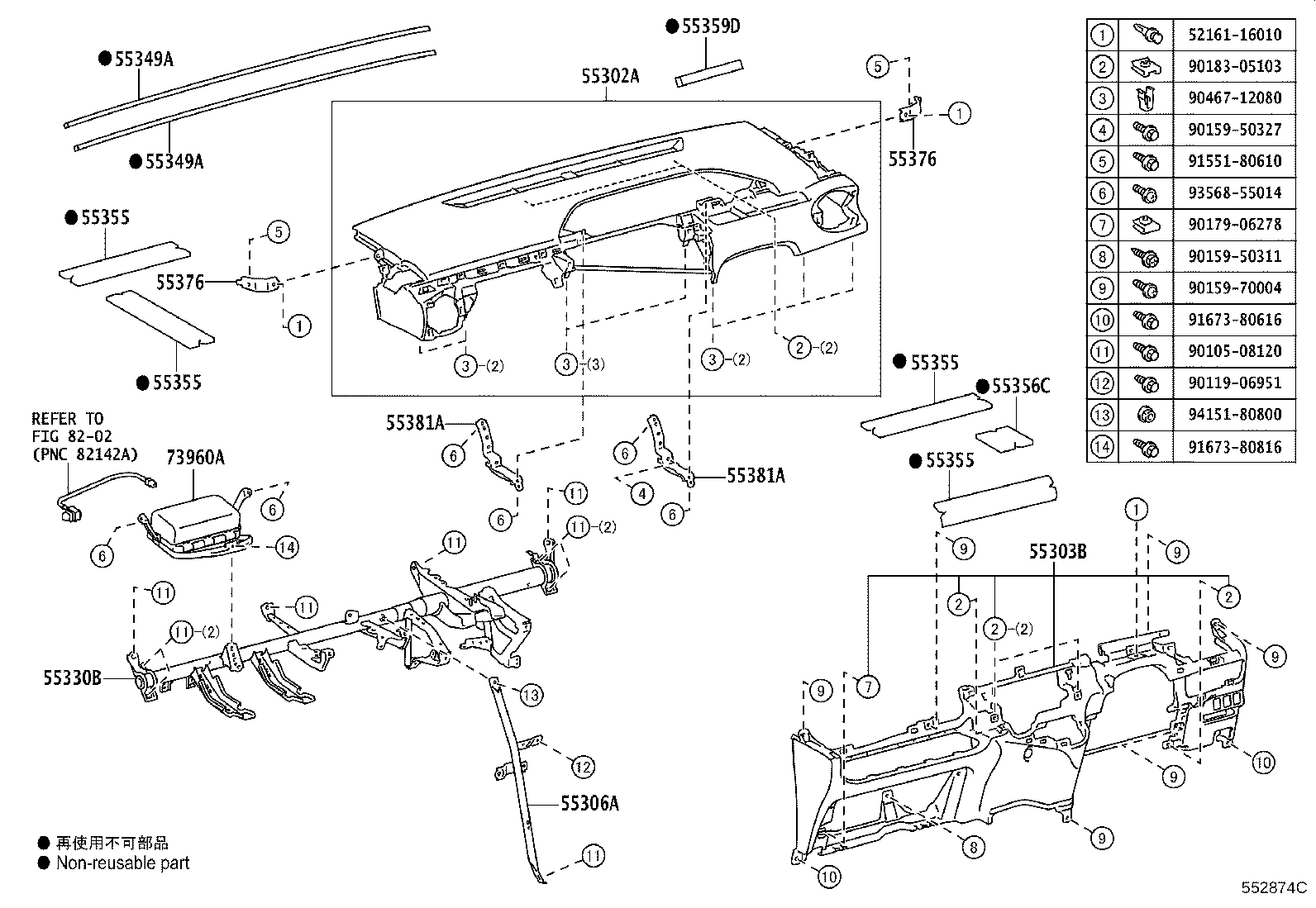

ILLUST NO. 1 OF 2(1112-1406)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52160C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55302-52906C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52280C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52260 |
NHP10..RHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52680 |
NHP10..RHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52180 |
NHP10..RHD |
2 | ||
| 55349-52180 |
NHP10..RHD COWL SIDE |
1 | ||
| 55349-52240 |
NHP10..RHD GLASS SIDE |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52180 |
NHP10..RHD |
2 | ||
| 55349-52180 |
NHP10..RHD COWL SIDE |
1 | ||
| 55349-52240 |
NHP10..RHD GLASS SIDE |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52200 |
NHP10 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-52150 |
NHP10 |
1 | ||
| 55359-52190 |
NHP10..RHD |
1 | ||
| 55359-52150 |
NHP10 |
1 | ||
| 55359-52151 |
NHP10 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
NHP10 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
NHP10 |
2 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-52050 |
NHP10 |
2 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-52050 |
NHP10 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52190 |
NHP10..RHD |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91551-80610 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

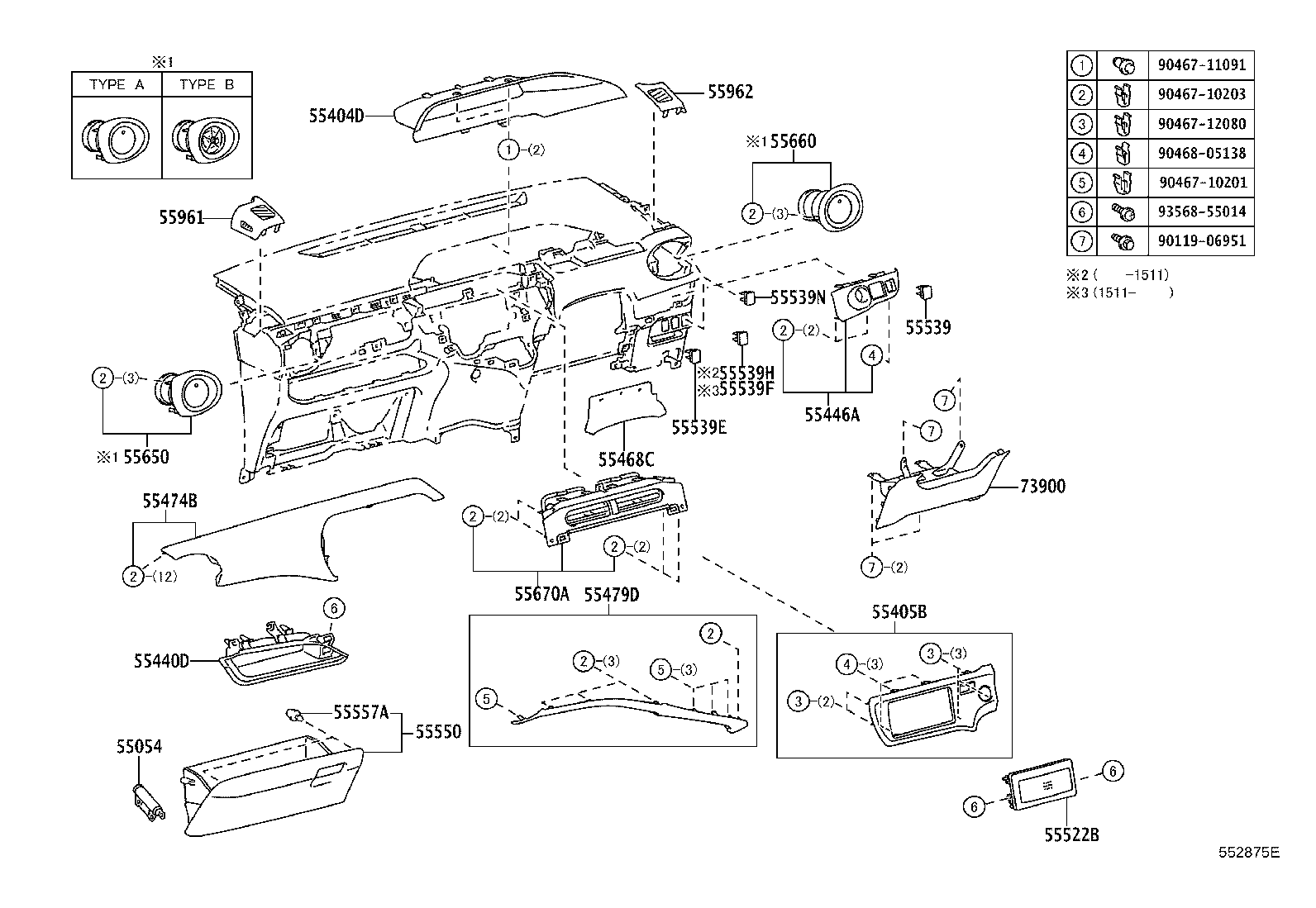

ILLUST NO. 2 OF 2(1112-1706)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-52020 |
NHP10 |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-52120C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-52A00C0 |
NHP10..RHD..GEN AUDIO-AM(10KHZ STEP) & CD & *BT & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55405-52A10C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55405-52A00C0 |
NHP10..RHD AUDIO-AM(9KHZ STEP) & CD & *BT & 6SPEAKER,BLACK,TRIM2# |
1 | ||
| 55440D - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-52140J0 |
NHP10..RHD SEAT COVER MATERIAL-FABRIC(FOR S),BLACK/LT.BLUE,TRIM28 |
1 | ||
| 55440-52180B0 |
NHP10..RHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55440-52140C0 |
NHP10..RHD BLACK,TRIM21,28 |
1 | ||
| 55440-52140J1 |
NHP10..RHD BLACK/ H/V BLUE,TRIM2# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-52120C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55468C - SEAL, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55468-52090 |
NHP10 |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-52100C0 |
NHP10..RHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55474-52050B0 |
NHP10..RHD LT.BLUE GRAY,TRIM2# |
1 | ||
| 55479D - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, LOWER | ||||
| 55479-52040C0 |
NHP10..RHD SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM28 |
1 | ||
| 55479-52040B1 |
NHP10..RHD LT.BLUE GRAY,TRIM28 |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
NHP10 |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55539H - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55539N - COVER, SPARE SWITCH HOLE | ||||
| 55539-52060C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-52330C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-60050 |
NHP10 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-52301C0 |
NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55650-52300C0 |
NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55650-52291C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55650-52290C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-52070C0 |
NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55660-52061C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55660-52071C0 |
NHP10 SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 55660-52060C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-52120C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-52030C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-52010C0 |
NHP10 BLACK,TRIM2# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-52100C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90467-10201 | ||||
| 90467-10203 | ||||
| 90467-11091 | ||||
| 90467-12080 | ||||
| 90468-05138 | ||||
| 93568-55014 | ||||

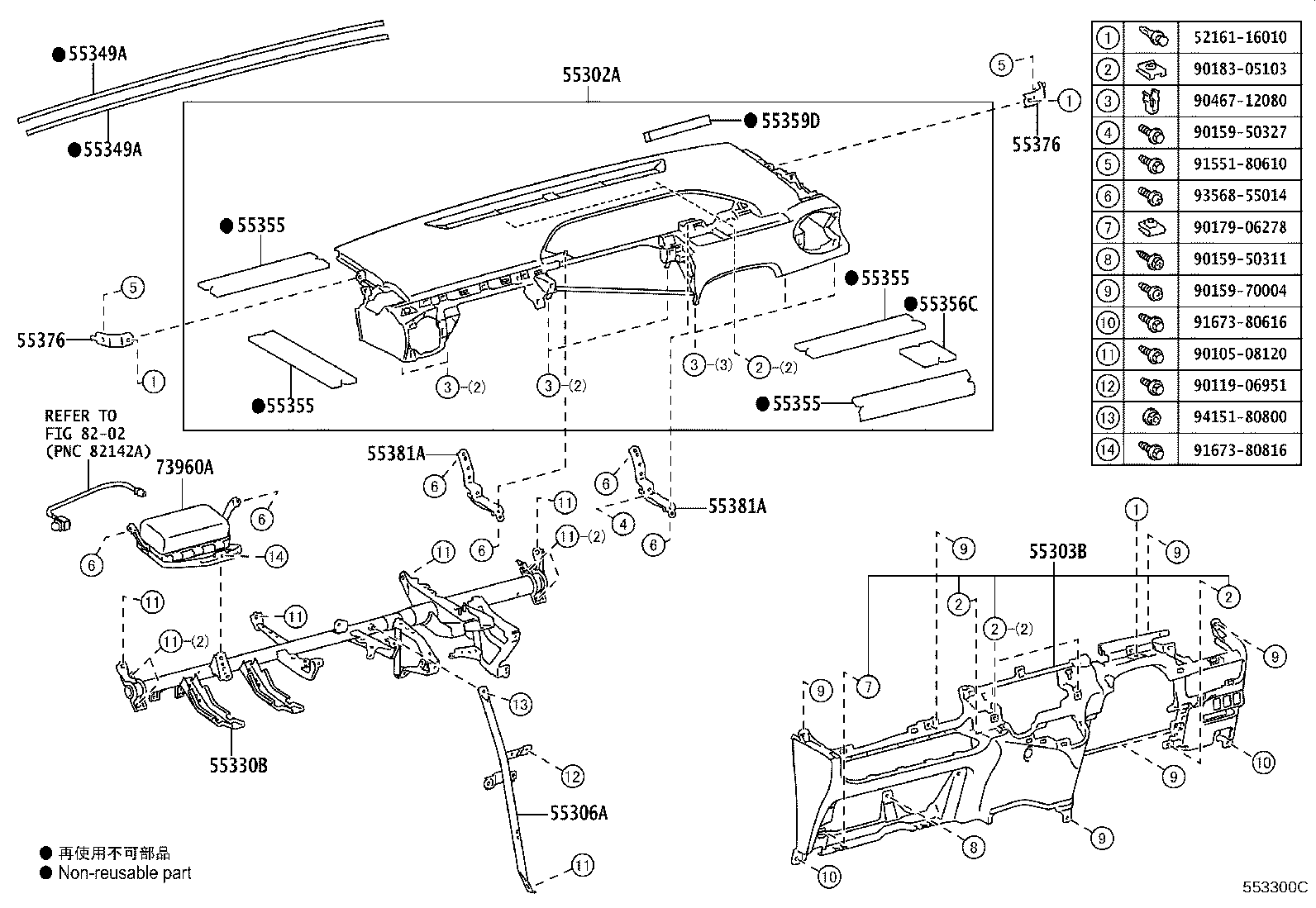

ILLUST NO. 1 OF 2(1406- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-52160C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55302-52906C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-52280C0 |
NHP10..RHD BLACK,TRIM2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-52260 |
NHP10..RHD |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-52680 |
NHP10..RHD |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52180 |
NHP10..RHD |
2 | ||
| 55349-52180 |
NHP10..RHD COWL SIDE |
1 | ||
| 55349-52240 |
NHP10..RHD GLASS SIDE |
1 | ||
| 55349A - CUSHION, INSTRUMENT PANEL | ||||
| 55349-52180 |
NHP10..RHD |
2 | ||
| 55349-52180 |
NHP10..RHD COWL SIDE |
1 | ||
| 55349-52240 |
NHP10..RHD GLASS SIDE |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-52200 |
NHP10 |
4 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-52200 |
NHP10 |
1 | ||
| 55359D - CUSHION, INSTRUMENT PANEL, NO.5 | ||||
| 55359-52150 |
NHP10 |
1 | ||
| 55359-52190 |
NHP10..RHD |
1 | ||
| 55359-52150 |
NHP10 |
1 | ||
| 55359-52151 |
NHP10 |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
NHP10 |
2 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-52110 |
NHP10 |
2 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-52050 |
NHP10 |
2 | ||
| 55381A - BRACKET, FINISH PANEL MOUNTING | ||||
| 55381-52050 |
NHP10 |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-52190 |
NHP10..RHD |
1 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 90105-08120 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90159-50327 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-12080 | ||||
| 91551-80610 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||
