NHP10R-AHXVB (2011)
Toyota Prius C
Production
Dec 2011
-
Dec 2014
Engine
1NZFXE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )RHD

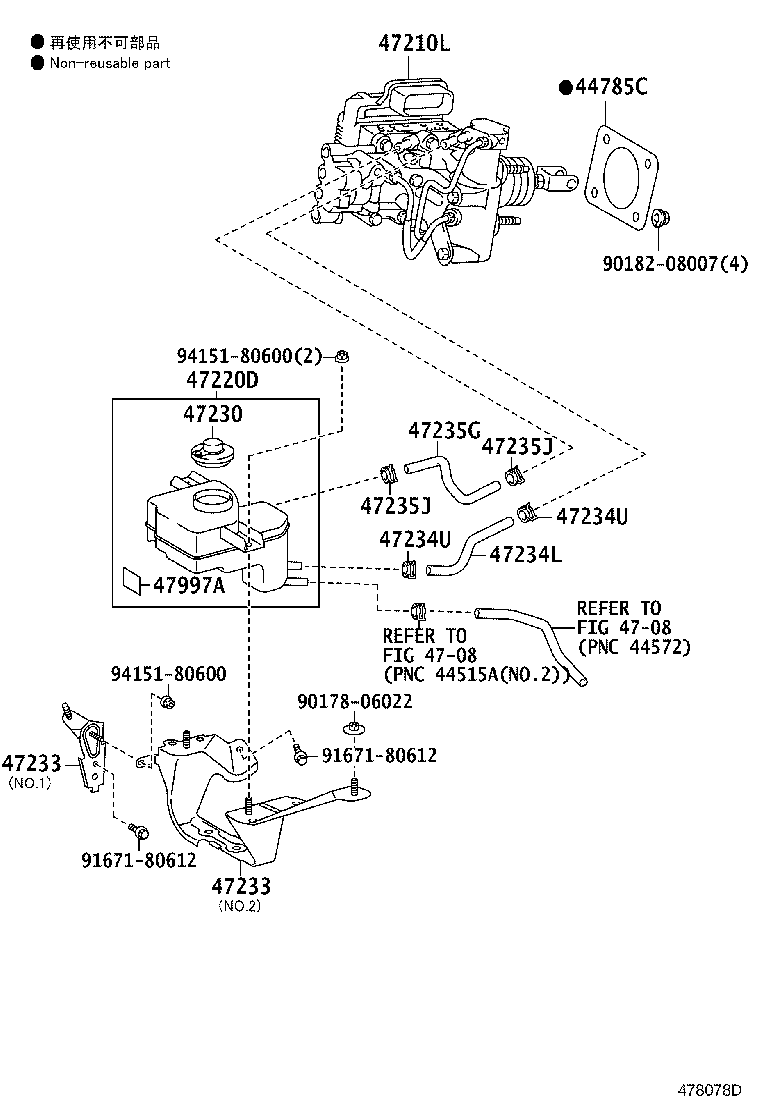

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44785C - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NHP10 |
1 | ||
| 47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER | ||||
| 47050-52050 |
NHP10..RHD |
1 | ||
| 47050-52270 |
NHP10..RHD |
1 | ||
| 47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-52290 |
NHP10..RHD |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20140 |
NHP10 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-52040 |
NHP10..RHD NO.1 |
1 | ||
| 47233-52050 |
NHP10..RHD NO.2 |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-52040 |
NHP10..RHD NO.1 |
1 | ||
| 47233-52050 |
NHP10..RHD NO.2 |
1 | ||
| 47234L - HOSE, RESERVOIR, NO.1 | ||||
| 47234-52050 |
NHP10..RHD |
1 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
NHP10 |
2 | ||
| 47234U - CLIP(FOR RESERVOIR HOSE NO.1) | ||||
| 96137-41501 |
NHP10 |
2 | ||
| 47235G - HOSE, RESERVOIR, NO.2 | ||||
| 47235-52050 |
NHP10..RHD |
1 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NHP10 |
2 | ||
| 47235J - CLIP(FOR RESERVOIR HOSE NO.2) | ||||
| 96137-41501 |
NHP10 |
2 | ||
| 47997A - LABEL, ACCUMULATOR CAUTION, NO.1 | ||||
| 47997-76010 |
NHP10 |
1 | ||
| Common parts | ||||
| 90178-06022 | ||||
| 90182-08007 | ||||
| 91671-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 4708 | ||||
