NHP10L-AHXVB (2014)

Toyota Prius C

Production Dec 2014 - Jun 2017
Engine 1NZFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1112-1706)

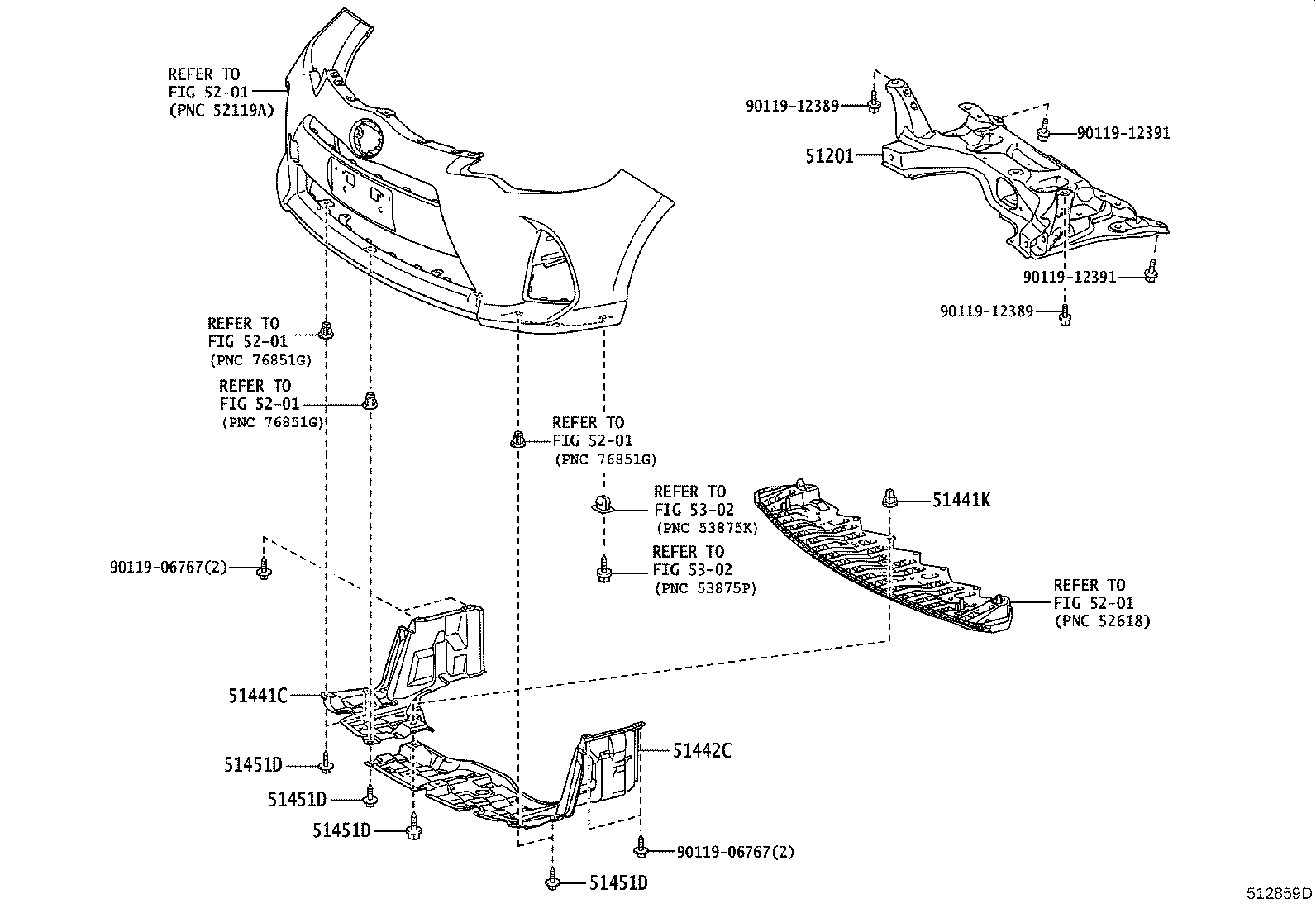

Click highlighted areas on diagram

diagram 51201 51441C 51441K 51442C 51451D 51451D 51451D 51451D 5201 5201 5201 5201 5201 5302 5302 9011906767 9011906767 9011912389 9011912389 9011912391 9011912391
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52087

NHP10

 1
51441C - COVER, ENGINE UNDER, RH
51441-52300

NHP10

 1
51441K - GROMMET(FOR ENGINE UNDER COVER)
90189-06076

NHP10

 1
51442C - COVER, ENGINE UNDER, LH
51442-52140

NHP10

 1
51451D - SCREW, NO.1
90159-60383

NHP10

 6
51451D - SCREW, NO.1
90159-60383

NHP10

 6
51451D - SCREW, NO.1
90159-60383

NHP10

 6
51451D - SCREW, NO.1
90159-60383

NHP10

 6
Common parts
90119-06767
90119-12389
90119-12391
Linked diagrams
5201
5302
