ZVW30L-AHXEBC (2011)
Toyota Prius (China)
Production
Dec 2011
-
Oct 2015
Engine
5ZRFXE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1112- )

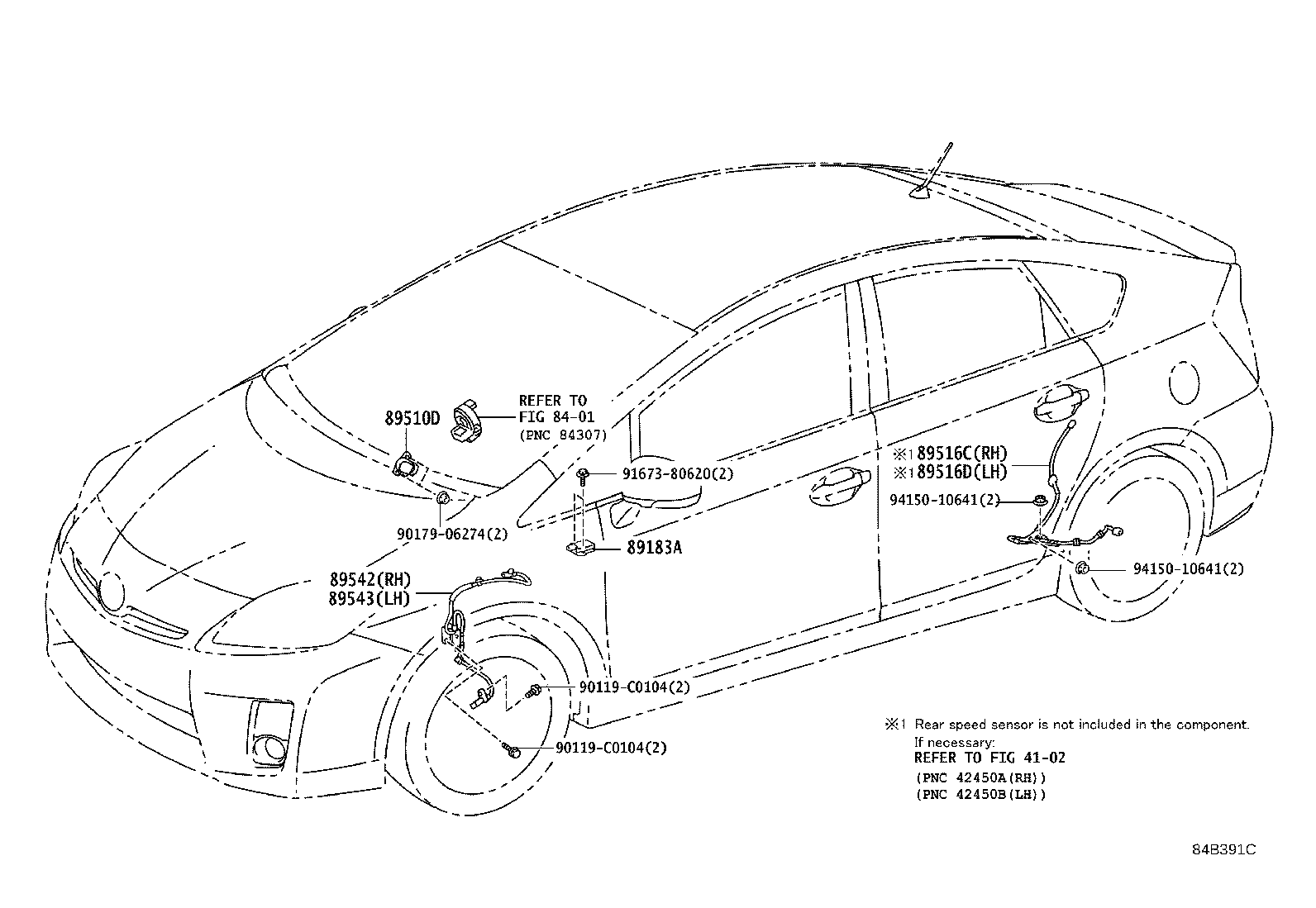

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-48030 |
ZVW30 |
1 | ||
| 89510D - SENSOR ASSY, BRAKE PEDAL STROKE | ||||
| 89510-47050 |
ZVW30 |
1 | ||
| 89516C - WIRE, SKID CONTROL SENSOR, RH | ||||
| 89516-47090 |
ZVW30 |
1 | ||
| 89516D - WIRE, SKID CONTROL SENSOR, LH | ||||
| 89516-47100 |
ZVW30 |
1 | ||
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-47030 |
ZVW30 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-47030 |
ZVW30 |
1 | ||
| Common parts | ||||
| 90119-C0104 | ||||
| 90179-06274 | ||||
| 91673-80620 | ||||
| 94150-10641 | ||||
| Linked diagrams | ||||
| 4102 | ||||
| 8401 | ||||
