ZVW30L-AHXEBC (2011)

Toyota Prius (China)

Production Dec 2011 - Oct 2015
Engine 5ZRFXE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

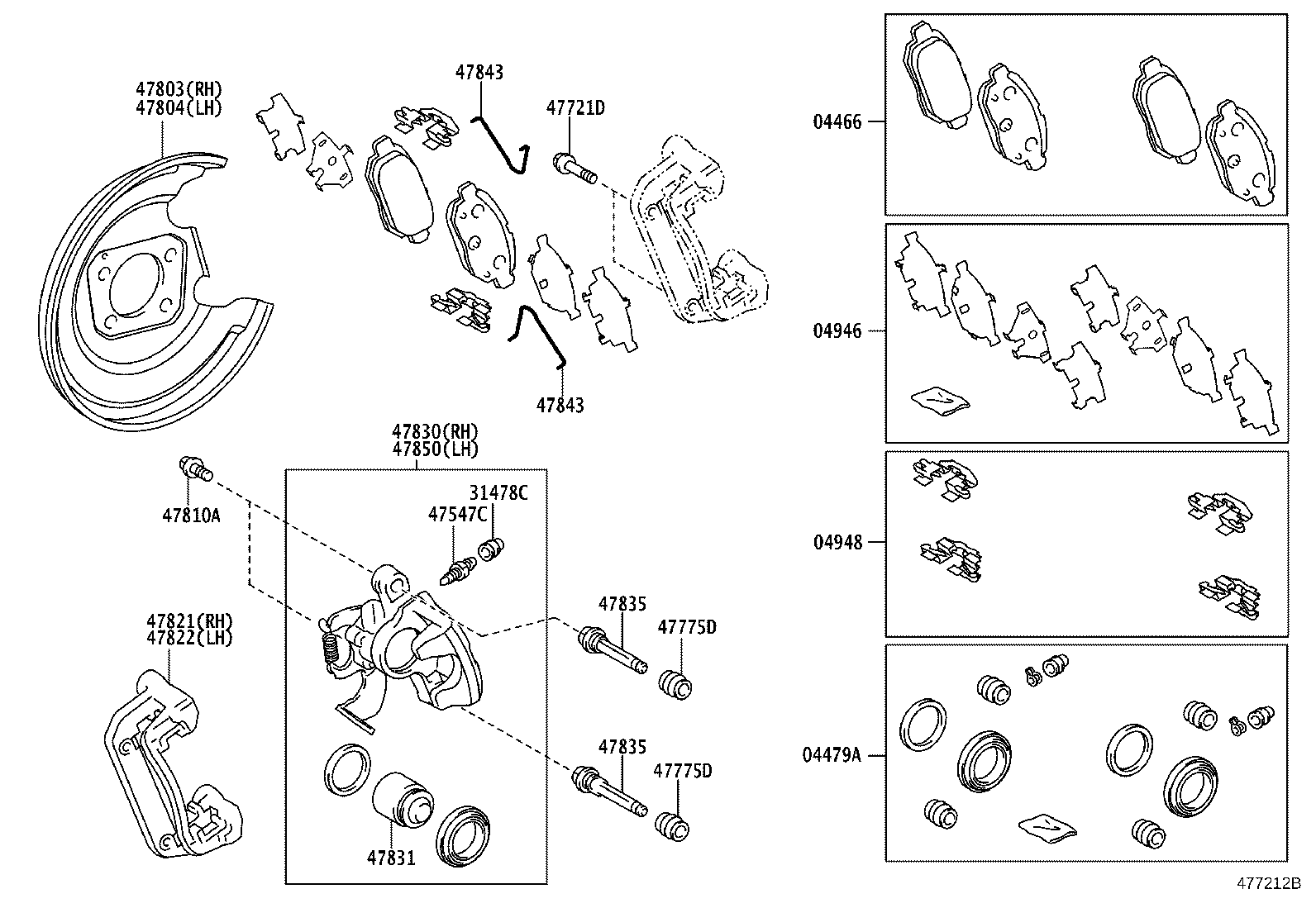

Click highlighted areas on diagram

diagram 04466 04479A 04946 04948 31478C 47547C 47721D 47775D 47775D 47803 47804 47810A 47821 47822 47830 47831 47835 47835 47843 47843 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-47080

ZVW30

MARK AK NS254

 1
04466-47061

ZVW30

MARK AK NS254

 1
04466-47100

ZVW30

MARK AK NS254

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-12260

ZVW30

 1
04946 - SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04946-47070

ZVW30

 1
04948 - FITTING KIT, DISC BRAKE, REAR
04948-12060

ZVW30

 1
31478C - CAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
31478-52010

ZVW30

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
47847-52050

ZVW30

 2
47721D - BOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
90105-10576

ZVW30

*10-1.25PX19-15.25

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZVW30

 4
47775D - BOOT, BUSH DUST(FOR REAR DISC BRAKE)
47875-12150

ZVW30

 4
47803 - COVER SUB-ASSY, DISC BRAKE DUST, REAR RH
47881-12071

ZVW30

 1
47804 - COVER SUB-ASSY, DISC BRAKE DUST, REAR LH
47882-12071

ZVW30

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90015-AA102

ZVW30

 4
47821 - MOUNTING, REAR DISC BRAKE CYLINDER, RH
47821-12151

ZVW30

 1
47822 - MOUNTING, REAR DISC BRAKE CYLINDER, LH
47821-12151

ZVW30

 1
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-12151

ZVW30

 1
47831 - PISTON, REAR DISC BRAKE
47831-52050

ZVW30

 2
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZVW30

 4
47835 - PIN, REAR DISC BRAKE PAD GUIDE
47835-12150

ZVW30

 4
47843 - CLIP, REAR DISC BRAKE PIN HOLD
47843-47040

ZVW30

 4
47843 - CLIP, REAR DISC BRAKE PIN HOLD
47843-47040

ZVW30

 4
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-12151

ZVW30

 1
