ZVW30L-AHXEBC (2011)

Toyota Prius (China)

Production Dec 2011 - Oct 2015
Engine 5ZRFXE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1112- )

Click highlighted areas on diagram

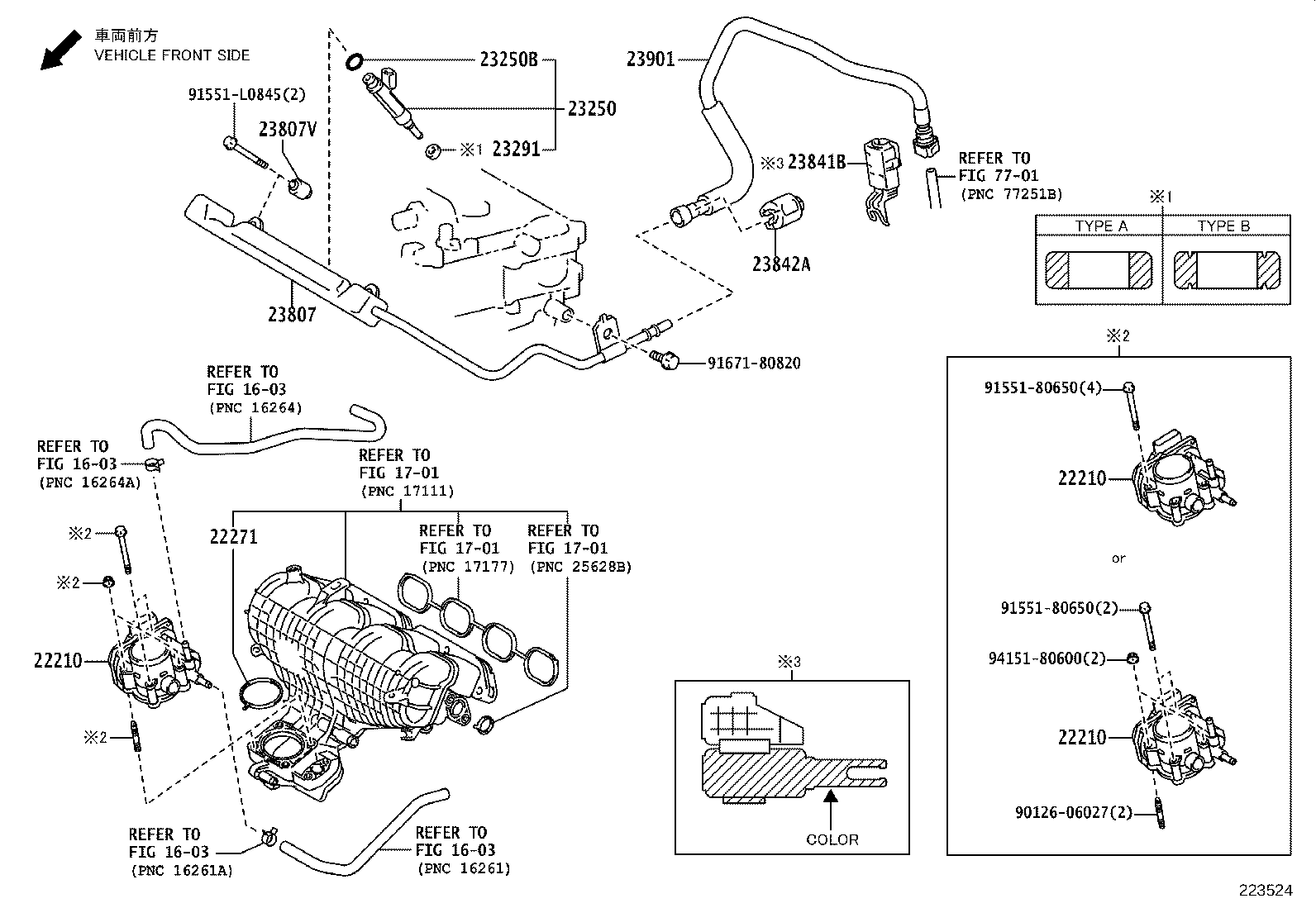

diagram 1603 1603 1603 1603 1701 1701 1701 22210 22210 22210 22271 23250 23250B 23291 23807 23807V 23841B 23842A 23901 7701 9012606027 9155180650 9155180650 91551L0845 9167180820 9415180600
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-37060

5ZRFXE..ZVW30

 1
22210 - BODY ASSY, THROTTLE
22030-37060

5ZRFXE..ZVW30

 1
22210 - BODY ASSY, THROTTLE
22030-37060

5ZRFXE..ZVW30

 1
22271 - GASKET, THROTTLE BODY
22271-37010

5ZRFXE..ZVW30

 1
23250 - INJECTOR ASSY, FUEL
23209-39146

5ZRFXE..ZVW30

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

5ZRFXE..ZVW30

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-28020

5ZRFXE..ZVW30

TYPE B:REFER ILLUST.

 4
23291-23010

5ZRFXE..ZVW30

TYPE A:REFER ILLUST.

 4
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23814-37061

5ZRFXE..ZVW30

 1
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-37010

5ZRFXE..ZVW30

 2
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-37090

5ZRFXE..ZVW30

 1
23841-21040

5ZRFXE..ZVW30

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-28010

5ZRFXE..ZVW30

 1
23901 - TUBE SUB-ASSY, FUEL
23901-37100

5ZRFXE..ZVW30

 1
Common parts
90126-06027
91551-80650
91551-L0845
91671-80820
94151-80600
Linked diagrams
1603
1701
7701
