ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(1511- )ARL

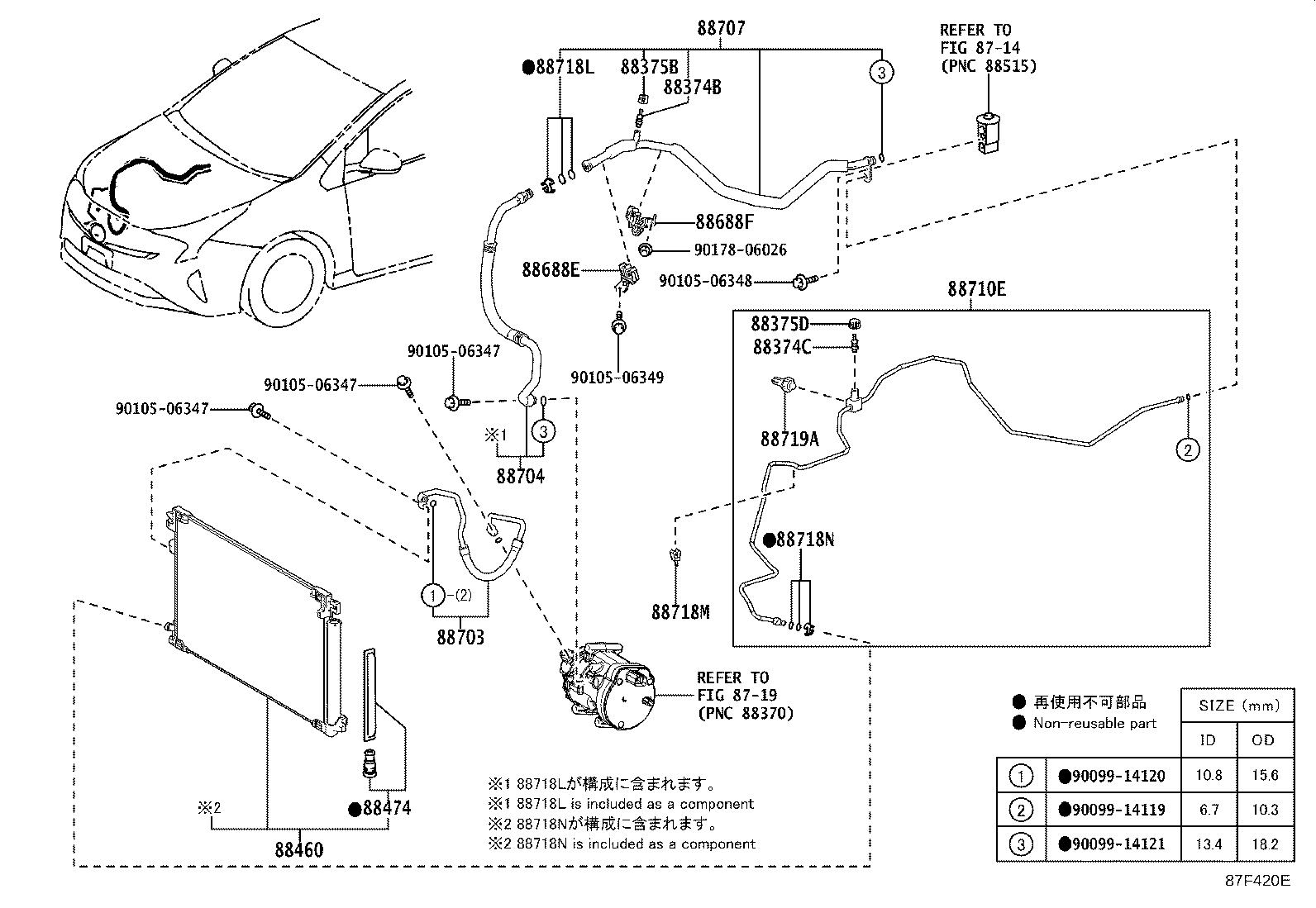

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
ZVW50 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
ZVW50 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
ZVW50 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
ZVW50 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-10320 |
ZVW50 |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12020 |
ZVW50 |
1 | ||
| 88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1 | ||||
| 88688-47700 |
ZVW50 |
1 | ||
| 88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2 | ||||
| 88688-47710 |
ZVW50 |
1 | ||
| 88703 - HOSE SUB-ASSY, DISCHARGE | ||||
| 88703-47080 |
ZVW50 |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-47100 |
ZVW50 |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 88707-47090 |
ZVW50..ARL |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-47160 |
ZVW50..ARL |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
ZVW50 |
1 | ||
| 88718M - CLAMP, PIPING | ||||
| 88718-47110 |
ZVW50 |
1 | ||
| 88718N - CLAMP, PIPING | ||||
| 88718-1E150 |
ZVW50 |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90105-06347 | ||||
| 90105-06348 | ||||
| 90105-06349 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
