ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1511- )

Click highlighted areas on diagram

HEATER CONTROL PANEL

diagram 55900 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-47251

ZVW50..ARL

 1
55900-47250

ZVW50..ARL

 1
Common parts
93568-55014

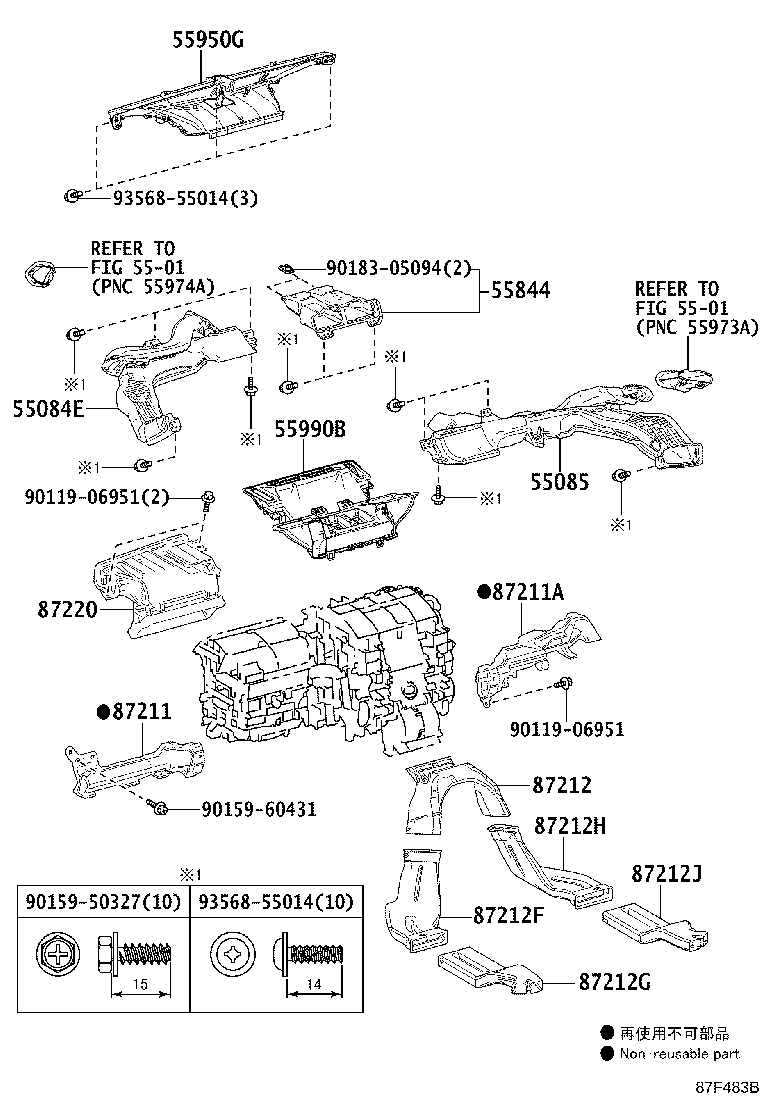

ILLUST NO. 2 OF 3(1511- )ARL

Click highlighted areas on diagram

AIR DUCT

diagram 5501 5501 55084E 55085 55844 55950G 55990B 87211 87211A 87212 87212F 87212G 87212H 87212J 87220 9011906951 9011906951 9015950327 9015960431 9018305094 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55085-47060

ZVW50..ARL

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55084-47100

ZVW50..ARL

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-47100

ZVW50..ARL

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-47070

ZVW50..ARL

 1
55990B - NOZZLE ASSY, DEFROSTER, LOWER
55990-47090

ZVW50

 1
87211 - DUCT, AIR, NO.1
87211-47180

ZVW50..ARL

 1
87211A - DUCT, AIR, NO.2
87211-47170

ZVW50..ARL

 1
87212 - DUCT, AIR, REAR NO.1
87215-47040

ZVW50..ARL

 1
87212F - DUCT, AIR, REAR NO.2
87213-47050

ZVW50

 1
87212G - DUCT, AIR, REAR NO.3
87217-47010

ZVW50

 1
87212H - DUCT, AIR, REAR NO.4
87212-47040

ZVW50

 1
87212J - DUCT, AIR, REAR NO.5
87216-47010

ZVW50

 1
87220 - DUCT ASSY, AIR
87220-47030

ZVW50..ARL

 1
Common parts
90119-06951
90159-50327
90159-60431
90183-05094
93568-55014
Linked diagrams
5501

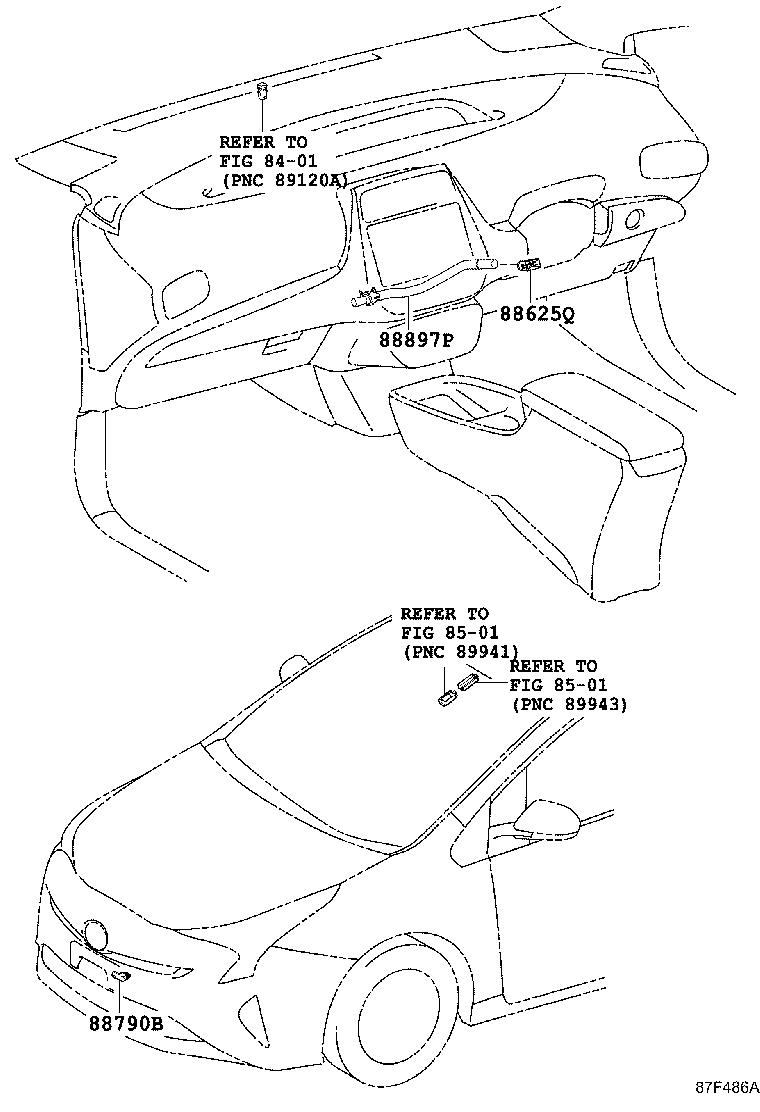

ILLUST NO. 3 OF 3(1511- )ARL

Click highlighted areas on diagram

SENSOR

diagram 8401 8501 8501 88625Q 88790B 88897P
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

ZVW50

 1
88790B - THERMISTOR ASSY
88790-28100

ZVW50

 1
88897P - ASPIRATOR
88505-47060

ZVW50..ARL

 1
Linked diagrams
8401
8501
