ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ARL

Click highlighted areas on diagram

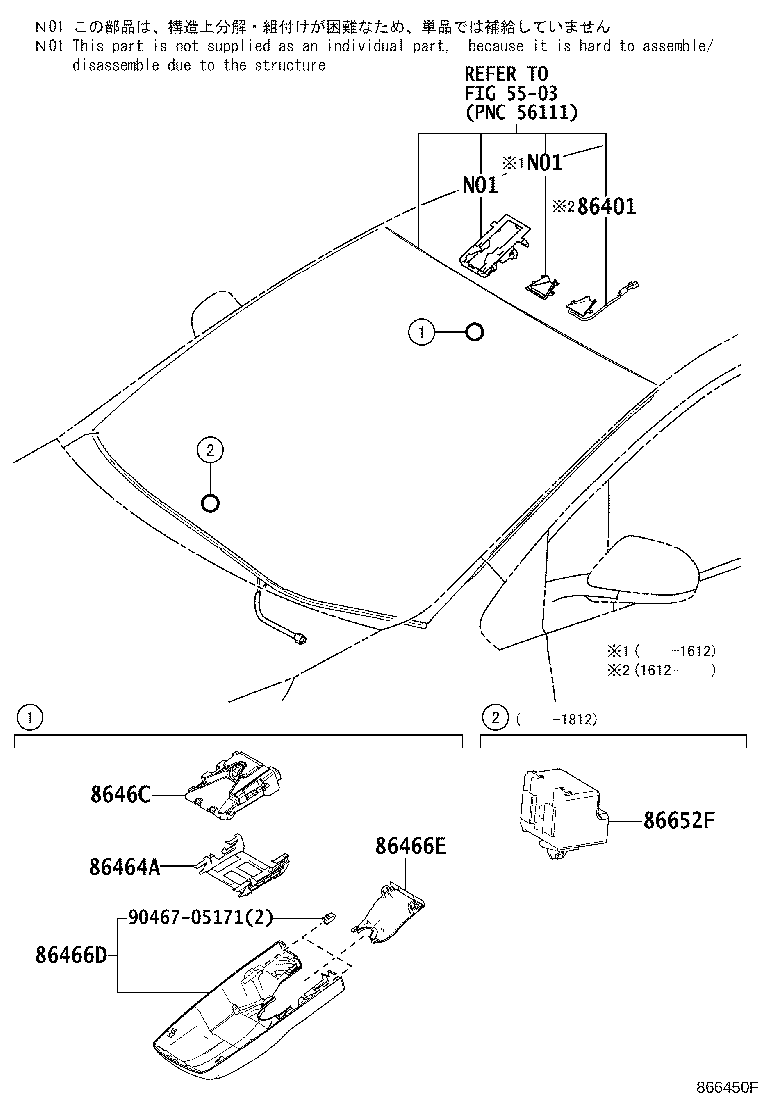

diagram 5503 86401 86464A 86466D 86466E 8646C 86652F 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-47010

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
86464A - LATCH, FORWARD RECOGNITION
86464-48011

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-47020

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
86466-47021

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-47030

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-47010

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
8646C-47030

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
8646C-47031

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
8646C-47032

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
86652F - BUZZER, SKID CONTROL
86652-50010

ZVW50..ARL

HEAD UP DISPLAY-WITH

 1
Common parts
90467-05171
Linked diagrams
5503
