ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1511- )ARL

Click highlighted areas on diagram

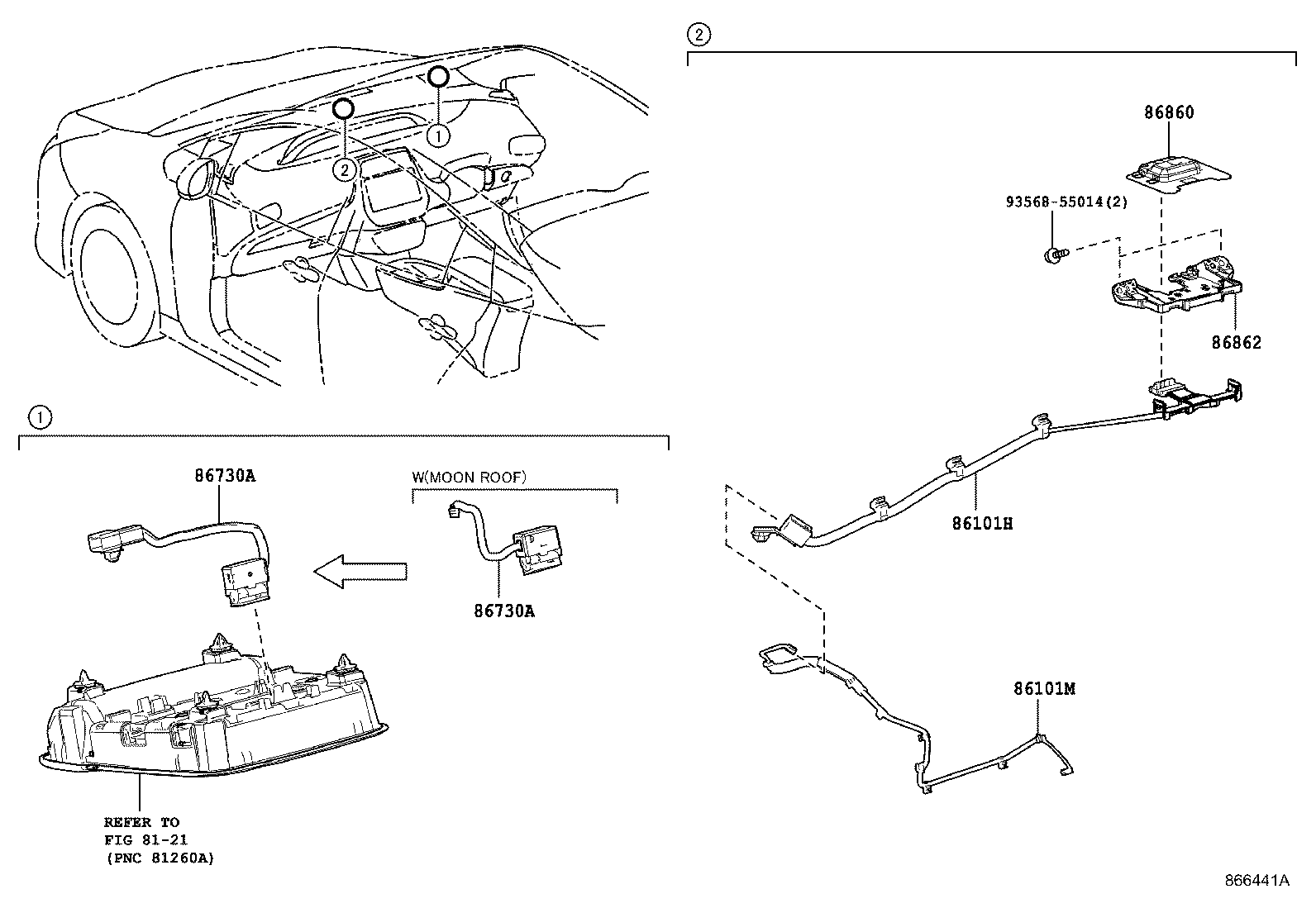

ANTENNA CORD & MICROPHONE

diagram 8121 86101H 86101M 86730A 86730A 86860 86862 9356855014
Part # Description Qty Price
86101H - CORD SUB-ASSY, ANTENNA
86101-47D90

ZVW50..ARL

 1
86101M - CORD SUB-ASSY, ANTENNA
86101-47E00

ZVW50..ARL

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53030

ZVW50..ARL

MOON ROOF-WITH

 1
86730-58040

ZVW50..ARL

 1
86730A - MICROPHONE ASSY, TELEPHONE
86730-53030

ZVW50..ARL

MOON ROOF-WITH

 1
86730-58040

ZVW50..ARL

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-78010

ZVW50

 1
86862 - BRACKET, NAVIGATION ANTENNA
86862-78010

ZVW50

 1
Common parts
93568-55014
Linked diagrams
8121

ILLUST NO. 1 OF 2(1511- )

Click highlighted areas on diagram

RECEIVER

diagram 8601 8601 8601 8601 8601 8601 86120L 86140A 86140A 86140B 86271 86841 86842 86848A 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010 9015350010
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86804-47350

ZVW50..ARL

FUJITSU TEN,ID100396,AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47260

ZVW50..ARL

FUJITSU TEN,ID100395

 1
86140A - RECEIVER ASSY, RADIO & DISPLAY
86140-47260

ZVW50..ARL

FUJITSU TEN,ID100395

 1
86271 - DISC, DISC PLAYER
86271-0E172

ZVW50..ARL

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

 1
86271-0E174

ZVW50..ARL

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

 1
86271-0E173

ZVW50..ARL

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

 1
86271-0E175

ZVW50..ARL

AUDIO-AUSTRALIA SPEC & AVN & *BT & USB & JBL

 1
Common parts
90153-50010
Linked diagrams
8601
