ZVW50R-AHXEBQ (2015)
Toyota Prius
Production
Nov 2015
-
Dec 2018
Engine
2ZRFXE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

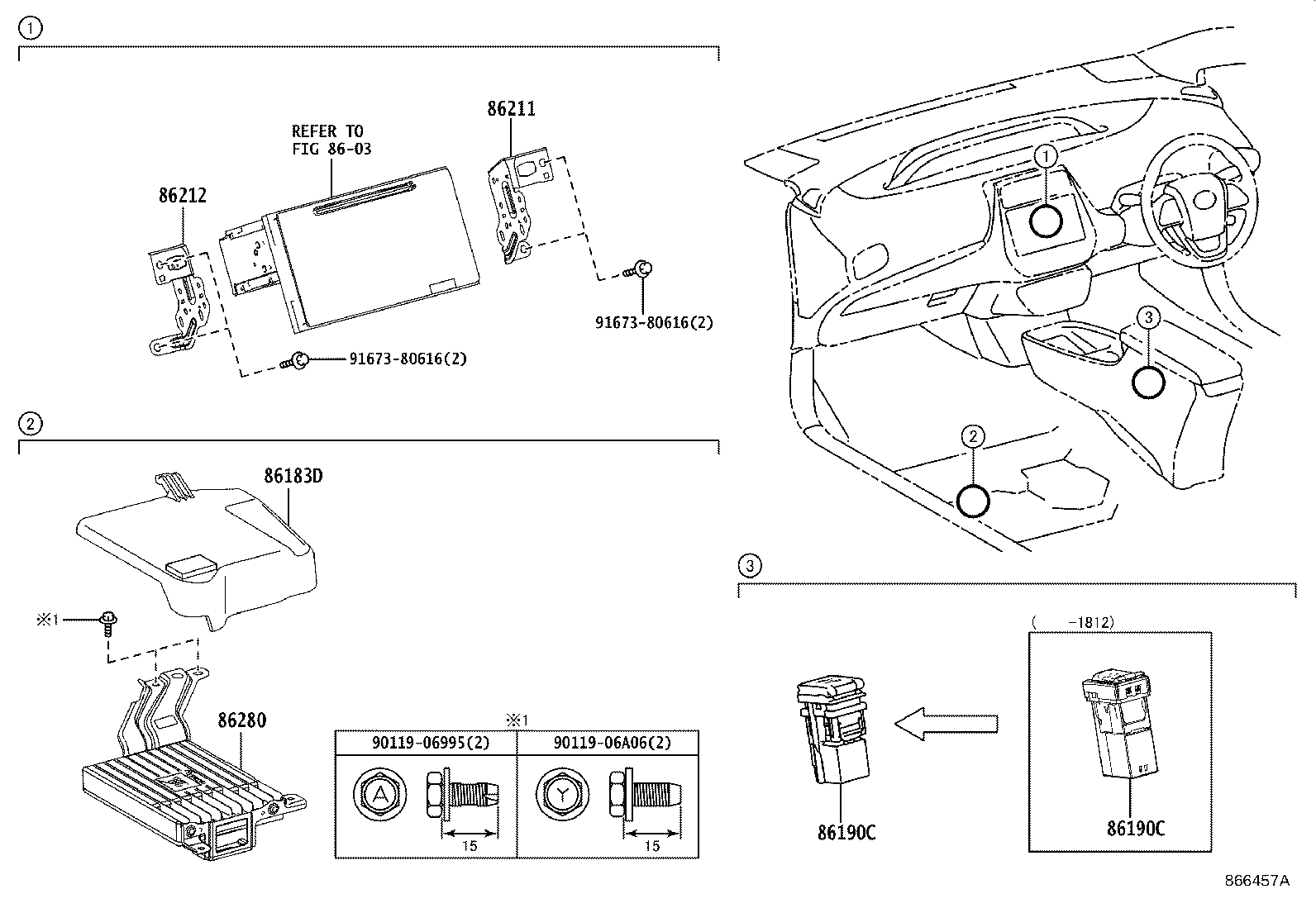

ILLUST NO. 1 OF 2(1511- )ARL
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86183D - COVER, AUDIO AMPLIFIER | ||||
| 86183-47120 |
ZVW50 |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-42040 |
ZVW50..ARL |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-42040 |
ZVW50..ARL |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-47130 |
ZVW50 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-47130 |
ZVW50 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-47051 |
ZVW50 |
1 | ||
| 86280-47050 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06995 | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
ILLUST NO. 2 OF 2(1511- )
Click highlighted areas on diagram
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A06 | ||||
