ZVW50R-AHXEBQ (2015)

Toyota Prius

Production Nov 2015 - Dec 2018
Engine 2ZRFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1511- )ARL

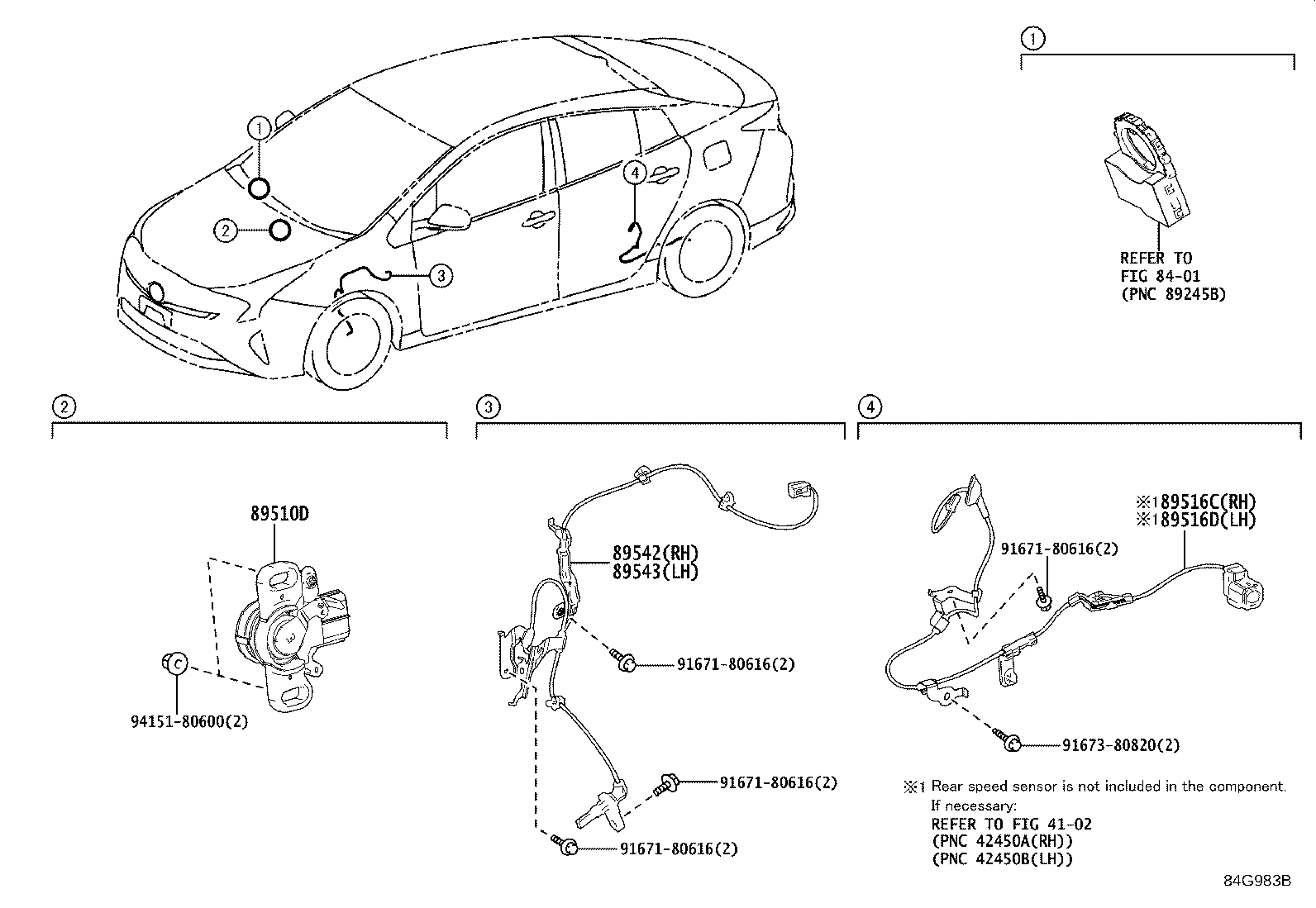

Click highlighted areas on diagram

diagram 4102 8401 89510D 89516C 89516D 89542 89543 9167180616 9167180616 9167180616 9167180616 9167380820 9415180600
Part # Description Qty Price
89510D - SENSOR ASSY, BRAKE PEDAL STROKE
89510-47030

ZVW50..ARL

 1
89516C - WIRE, SKID CONTROL SENSOR, RH
89516-47110

ZVW50

 1
89516D - WIRE, SKID CONTROL SENSOR, LH
89516-47120

ZVW50

 1
89542 - SENSOR, SPEED, FRONT RH
89542-47040

ZVW50

 1
89543 - SENSOR, SPEED, FRONT LH
89543-47040

ZVW50

 1
Common parts
91671-80616
91673-80820
94151-80600
Linked diagrams
4102
8401
