ZVW50R-AHXEBQ (2015)
Toyota Prius
ILLUST NO. 1 OF 8(1511- )
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12060 |
ZVW50 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-47090 |
ZVW50 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-47030 |
ZVW50 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-47010 |
ZVW50 |
1 | ||
| 89491-47011 |
ZVW50 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
ZVW50 |
1 | ||
| Common parts | ||||
| 82715-47680 | ||||
| 82715-47690 | ||||
| 82715-47A60 | ||||
| 82729-20040 | ||||
| 90468-15007 | ||||
| 91551-80616 | ||||
| 91551-80835 | ||||
| 91553-81014 | ||||
| 91673-80616 | ||||

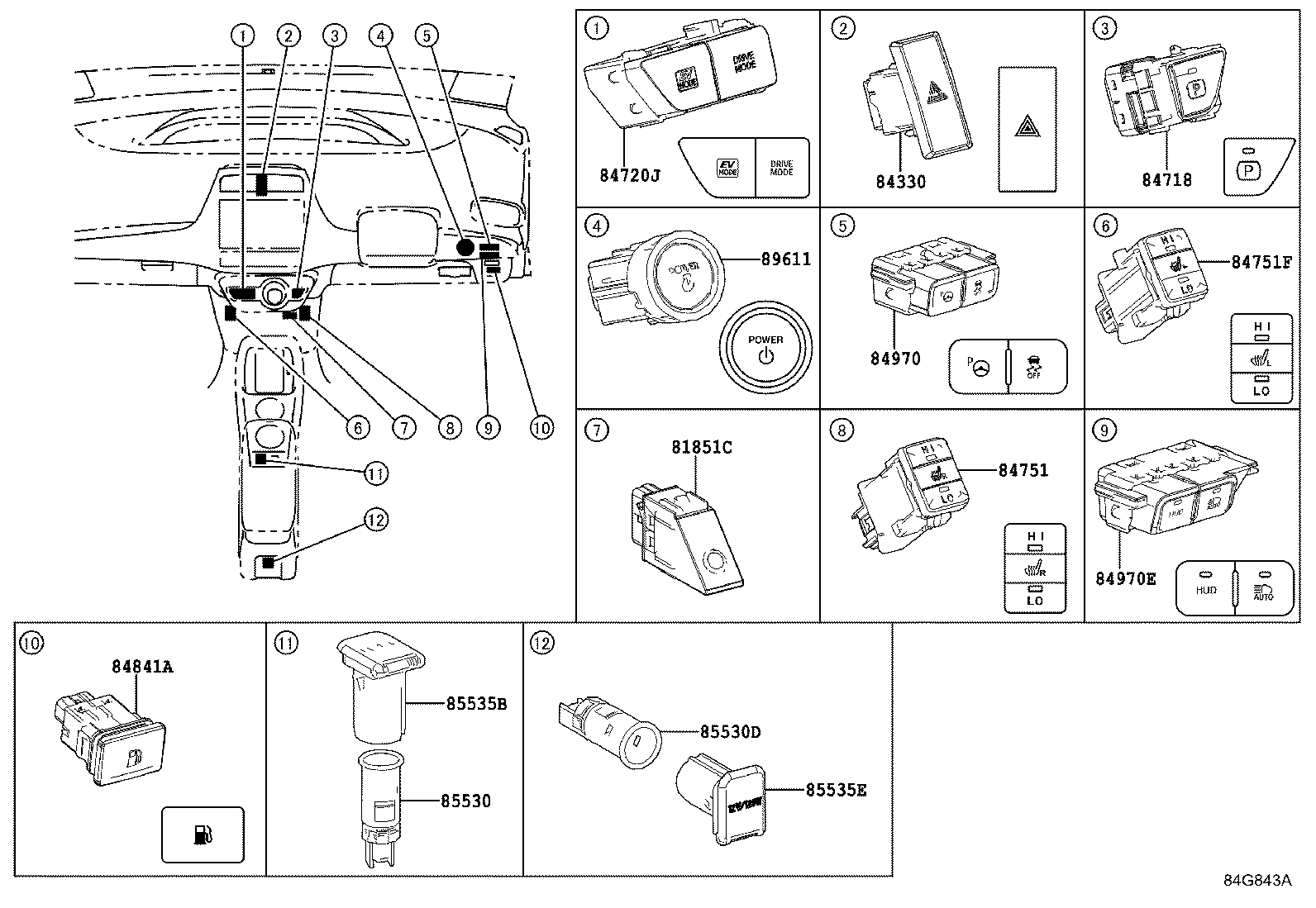

ILLUST NO. 5 OF 8(1511-1812)ARL
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81851C - LAMP ASSY, INDICATOR | ||||
| 81850-47030 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-47050 |
ZVW50 |
1 | ||
| 84718 - SWITCH, TRANSMISSION SHIFT MAIN | ||||
| 84718-47090 |
ZVW50..ARL |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84010-47300 |
ZVW50..ARL |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-47070 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-47060 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-47020 |
ZVW50 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84010-47280 |
ZVW50..ARL |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84010-47210 |
ZVW50..ARL PRE-COLLISION SYSTEM-WITH&HEAD UP DISPLAY-WITH |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
ZVW50 |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-42010 |
ZVW50 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-47030 |
ZVW50 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-47030 |
ZVW50 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-30142 |
ZVW50 |
1 | ||
| 89611-30141 |
ZVW50 |
1 | ||
ILLUST NO. 6 OF 8(1511- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33231 |
ZVW50..ARL |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33231 |
ZVW50..ARL |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-47540C1 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84250-47530C1 |
ZVW50..ARL PRE-COLLISION SYSTEM-WITH,BLACK,TRIM1#,2# |
1 | ||
| 84250-47541C3 |
ZVW50 WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84250-47531C4 |
ZVW50..ARL PRE-COLLISION SYSTEM-WITH,WHITE & BLACK,TRIM1#,2# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-47010 |
ZVW50 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-47151 |
ZVW50 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-58020 |
ZVW50..ARL |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-58020 |
ZVW50..ARL |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-47010 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
ILLUST NO. 7 OF 8(1511- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-33200C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 84921-47050 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-47040 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 84921-33190C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-47020 |
ZVW50..ARL |
1 | ||
| 84920-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84922A - SWITCH, FRONT POWER SEAT(FOR LUMBAR) | ||||
| 84920-47020 |
ZVW50..ARL |
1 | ||
| 84920-47030C0 |
ZVW50 BLACK,TRIM1#,2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-33220C0 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION),BLACK,TRIM1#,2# |
1 | ||
| 84922-47020 |
ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| Common parts | ||||
| 93560-54012 | ||||

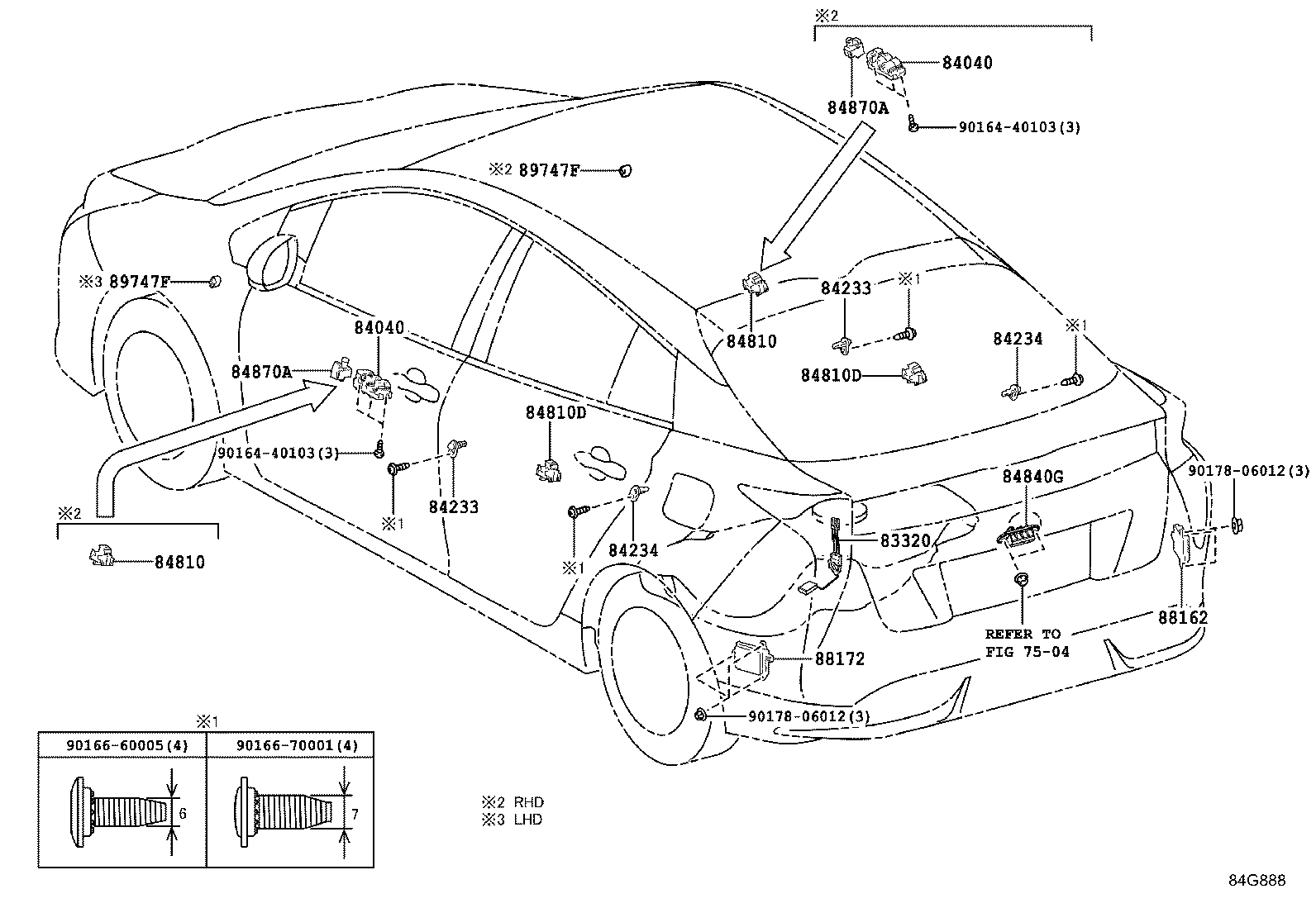

ILLUST NO. 8 OF 8(1511-1812)
DOOR,ROOF,FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-47120 |
ZVW50 |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-47080 |
ZVW50..ARL |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-47080 |
ZVW50..ARL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW50 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
ZVW50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW50 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-60070 |
ZVW50 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-47010 |
ZVW50 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-47010 |
ZVW50 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-47010 |
ZVW50 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-47010 |
ZVW50 |
2 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-47040 |
ZVW50..ARL FRONT SEAT-DRIVER(8-WAY) |
1 | ||
| 84840-47040 |
ZVW50..ARL |
1 | ||
| 84840-47030 |
ZVW50..ARL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47060 |
ZVW50..ARL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-47060 |
ZVW50..ARL |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-0W272 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W270 |
ZVW50..ARL SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON) |
1 | ||
| 88162-0W271 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W273 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-0W271 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W273 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 88162-0W270 |
ZVW50..ARL SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON) |
1 | ||
| 88162-0W272 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
ZVW50..ARL SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON) |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
ZVW50..ARL BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT) |
1 | ||
| 89747-52010 |
ZVW50..ARL SMART ENTRY-W(FRONT & BACK DOOR) & W(PANIC BUTTON) |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90178-06012 | ||||
| Linked diagrams | ||||
| 7504 | ||||
ILLUST NO. 4 OF 8(1511- )ARL
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ZRFXE..ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02027 |
2ZRFXE..ZVW50..ARL SEAT COVER MATERIAL-NATURAL LEATHER(PERFORATION) |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
ZVW50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZVW50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZVW50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZVW50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZVW50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZVW50 20A,MINI FUSE,YELLOW |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09019 |
ZVW50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09021 |
ZVW50 10A,MINI FUSE,RED |
1 | ||
| 90982-09020 |
ZVW50 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
ZVW50 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
ZVW50 20A,MINI FUSE,YELLOW |
1 | ||
| 82660F - BLOCK ASSY, RELAY | ||||
| 82660-47060 |
ZVW50..ARL |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-47150 |
ZVW50 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-47190 |
ZVW50..ARL |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-47210 |
ZVW50..ARL |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-47530 |
ZVW50 |
1 | ||
| 82878 - BOX, COMPUTER INTEGRATION, LH | ||||
| 82878-47020 |
ZVW50..ARL |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49075 |
ZVW50 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
ZVW50 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
ZVW50 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
ZVW50 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-47060 |
ZVW50..ARL |
1 | ||
| 87989 - RELAY, MIRROR CONTROL | ||||
| 85927-22010 |
ZVW50 |
2 | ||
| 90987-04004 |
ZVW50 |
2 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-47140 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 88150-47110 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 88150-47160 |
ZVW50..ARL HEAD UP DISPLAY-WITH |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89111-47062 |
ZVW50 |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
ZVW50 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-4EE20 |
ZVW50..ARL |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-47570 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90119-06A21 | ||||
| 90179-06115 | ||||
| 90179-06274 | ||||
| 90183-06032 | ||||
| 91671-80616 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
ILLUST NO. 2 OF 8(1511- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-37070 |
2ZRFXE..ZVW50 |
1 | ||
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-37070 |
2ZRFXE..ZVW50 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37030 |
2ZRFXE..ZVW50 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-37030 |
2ZRFXE..ZVW50 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-47090 |
ZVW50 |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
ILLUST NO. 3 OF 8(1511- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100P - RELAY, WATER PUMP | ||||
| 90987-02027 |
2ZRFXE..ZVW50 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08300 |
ZVW50 50A-30A-30A,FEMALE |
1 | ||
| 90982-08308 |
ZVW50 40A-30A-30A,FEMALE |
1 | ||
| 90982-08296 |
ZVW50 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08302 |
ZVW50 50A-30A-50A,FEMALE |
1 | ||
| 90982-08295 |
ZVW50 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09019 |
ZVW50 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
ZVW50 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
ZVW50 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
ZVW50 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09024 |
ZVW50 25A,MINI FUSE |
1 | ||
| 90982-09022 |
ZVW50 15A,MINI FUSE,BLUE |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
ZVW50 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-47050 |
ZVW50 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-47070 |
ZVW50 |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-47080 |
ZVW50 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-47090 |
ZVW50 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-47100 |
ZVW50 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-47020 |
ZVW50 |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-47030 |
ZVW50 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-47200 |
ZVW50 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-47190 |
ZVW50 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-47070 |
ZVW50 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-47090 |
ZVW50 |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-47610 |
ZVW50 |
1 | ||
| 82666H - HOLDER, CONNECTOR, NO.2 | ||||
| 82666-47620 |
ZVW50 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
ZVW50 |
1 | ||
| 85924C - RELAY, IGCT | ||||
| 90987-02025 |
ZVW50 |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
ZVW50 |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
ZVW50 |
1 | ||
| 85927B - RELAY, COOLING FAN, NO.3 | ||||
| 90987-02027 |
ZVW50 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
ZVW50 |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
